*Video for reference
*Product description

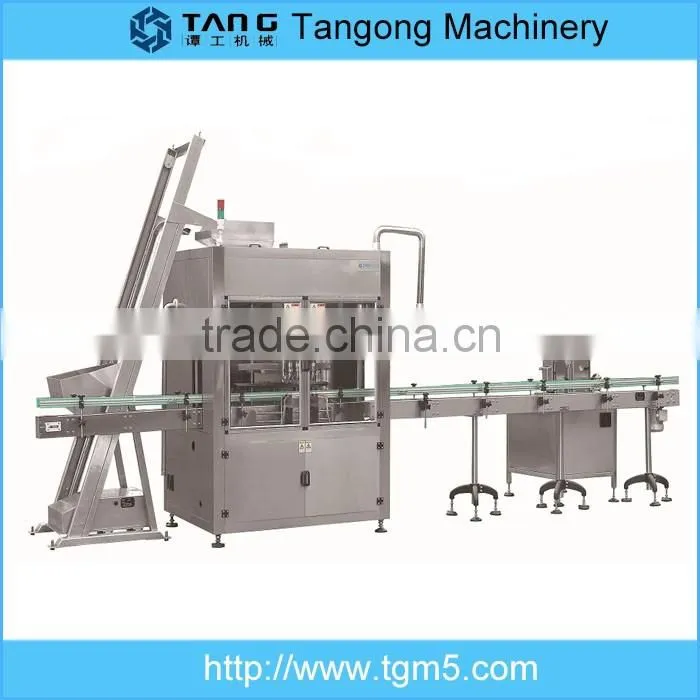

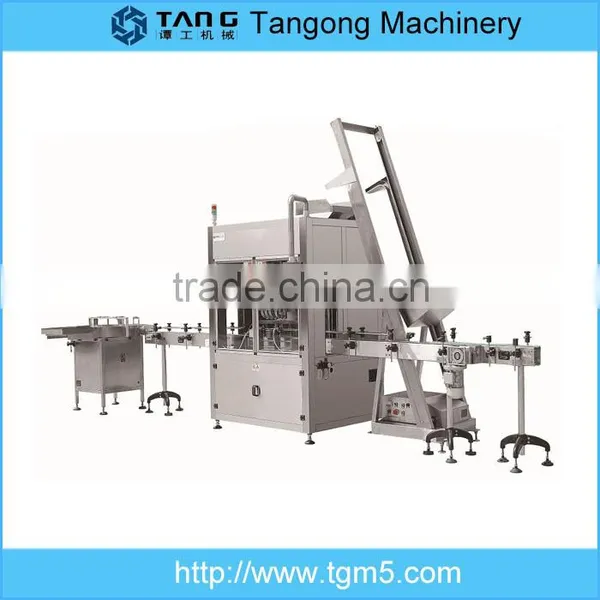

sauce in jar unscrambler and filler machine
Instruction:
The filler’s master computer independently tracks the rotation of each pump head so that it knows precisely how much product has been delivered. When the target fill volume is reached, each pump and nozzle is instantly shut off, resulting in high accuracy fills of your valuable products. The computer stores all fill parameters in memory for fast changeovers.
Suitable for heavy dressings such as sauces,chilli sauces,BBQ sauce,bean sauce,pasta sauce,strawberry sauce,fruit jams,honey,and other similar food products.
Features:
1.It is efficiently equipped with adjustable volume control and bottom-up filling assembly and filling
speed differs with volume.
2.Built-in two-speed fill process, fast filling to volume and slow down for the final fill to prevent
spillage.
3.Contact parts in Stainless steel 316L quality.
4.Machine construction covered by stainless steel SUS#304.
5.Convenient cleaning function operating on the touch screen.
6.Compact configuration, easy for maintaining.
7.Intelligent operating with servo control.
8.Long service life, easy to operate,durable and good looking.
Technical data:
Filling capacity |
2000-3500pcs/h |
Operating voltage |
380v 50hz |
Measuring precision |
±4-5%g |
Filling volume |
100-200g,300-500g,500-1000g,500-2000g |
Working pressure |
0.6~0.8Mpa |
Dimension |
6000*1600*2000mm |
Weight |
650KG |
Power |
3.5kw |
After-sale service:
1, warranty time: one year, from the date which the product is qualified commissioning. Any
damage except the wrong operation during warranty period is repaired freely.Which buyer
should pay for the round-trip ticket, living there charge of our engineer.
2, commissioning services: the product's installation and commissioning at the demand side, our
engineers will not leave there untill get your agreement.
3, training services: our engineers will train your staff to operate it during the period of
installation and commissioning, and they will not leave there untill your staff can operate it
properly and normally.
4, maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
5, lifelong services: we provide lifelong services for all the products we sold out, and supply
the spare parts with discount price.
Different type filling machine:
No one type of filling machine can handle all liquids in all industries. For example, a machine that fills bottled oil cannot fill cosmetic cold cream. Nor would a chemical duty filler be used to fill pharmaceutical grade or dairy products. Although there are many different types of filling technologies, there are relatively few that are versatile, practical and cost effective to own and operate. The choice of filling machine depends on the range of viscosities, temperature, chemical compatibility, particulate size, foam characteristics, and hazardous environment considerations. Each one of the machines below is discussed with its strengths and weaknesses and range of best suited applications.
So, please contact us freely by "send " at the bottom of the page when you have product to fill into bottles, more videos are available and we'll suggest the ideal machines for your reference.

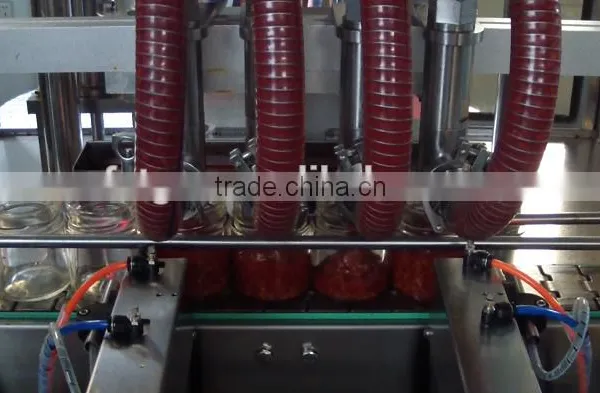

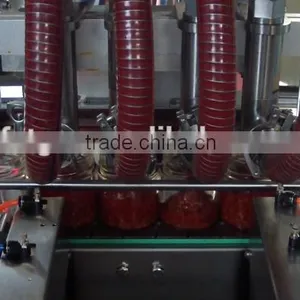

*Filling part details
*Application
*Reference packing
*Exhibition&Customers
*Our certification

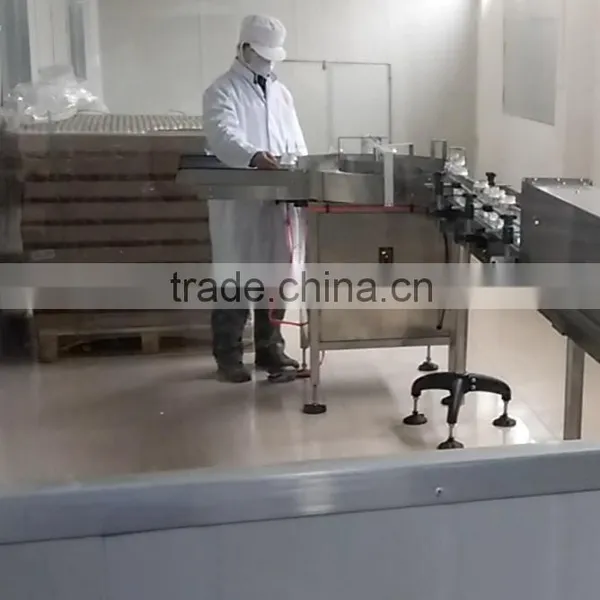

*Factory&show room
*Contact us
