Specifications

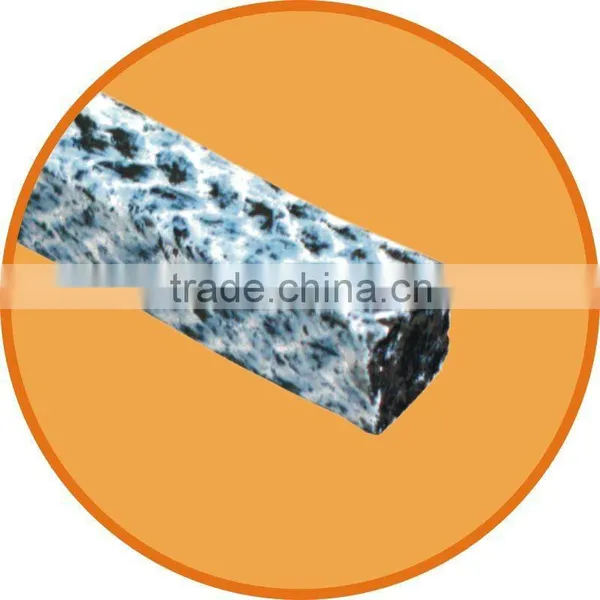

Graphite packing Impregnated PTFEWith our own graphite mines we can produce and export by ourself
Expanded graphite braided packing impregnated with PTFE latex is made from expanded graphite fiber impregnated with mixed PTFE latex and inert lubricant.Graphite impregnated PTFE packing has better resist cautery capability.Graphite impregnated PTFE packing has effective heat exchange capability.Graphite impregnated PTFE packing has perfect self-lubrication.Graphite impregnated PTFE packing is widely used in sealing pump shaft.Graphite impregnated PTFE packing can also be used in sealing water/steam/solvents for agitators/mixers/autoclaves and centrifugal pumps ect.
Main specification:
PH Range:0-14
Temperature:
1650°C (Non oxidizing condition)
650°C (steam)
450°C (oxidizing condition)
-240°C (cryogenics)
Pressure:9-45MPa
Velocity:2-15m/s
Density:0.9-1.3g/cm3
Dimension:3mmx3mm to 50mmx50mm(or as required size)
