Help CenterGraphite Packing
US$ 5 - 10
MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
CSHD Graphite
Model Number:
HDP104
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hubei, China
Brand Name
CSHD Graphite
Model Number
HDP104
Application
industrial
Dimensions
customized
Chemical Composition
graphite
Specifications

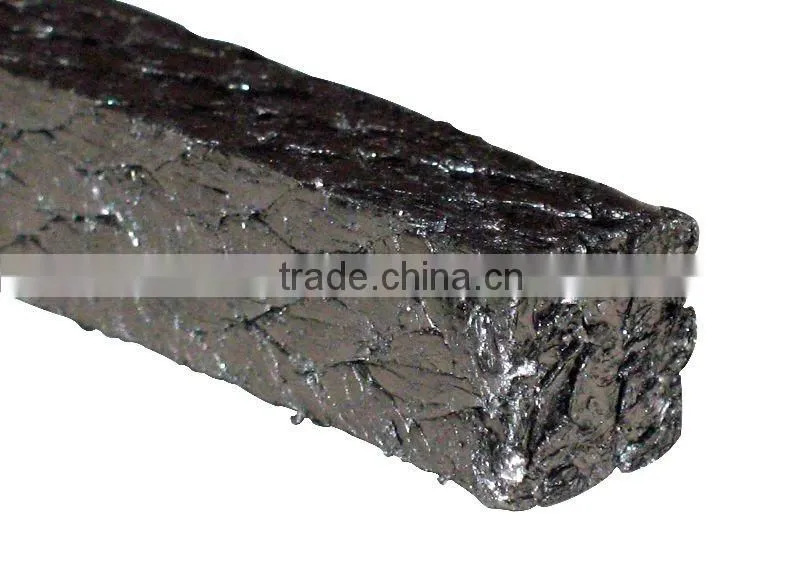

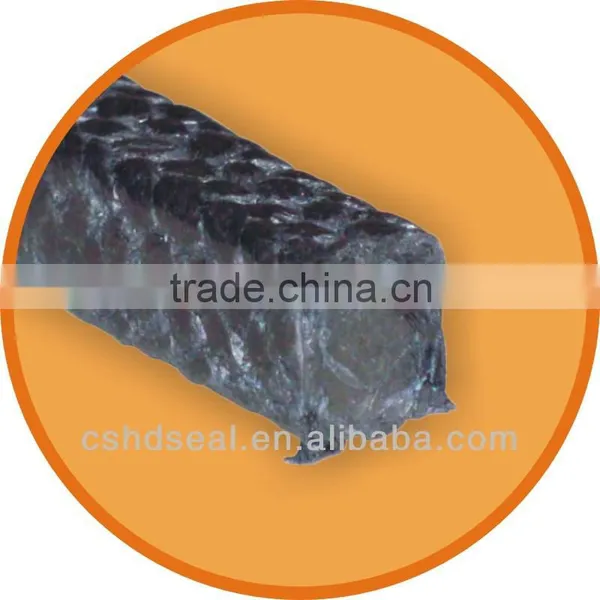

Braided graphite gland packing :1) braided by expandable graphite yarns
2) reinforced with metal wire
♣ Making:
• The packing is braided by expandable pure graphite yarn reinforced with wire, such as inconel, stainless steel wire, fiber glass, cotton, etc.
♣ Properties:
• Due to its thermal and chemical resistance, self-lubricating properties and good heat conduction, it is fit very well for high-temperature braided packings.
♣ Advantages:
• Packing reinforcement with thin wire improves mechanical strength of the packing and protects it against squeezing out into a slot between shaft or spindle and a gland housing.
• Additionally, the packing is enriched with high quality corrosion inhibitor.
♣ Main technical data:
PARAMETER |
VALUE |
Pressure |
45MPa |
Working temperature |
-240°C ~ +260°C |
Velocity |
20m/s |
PH |
0- 14 |
