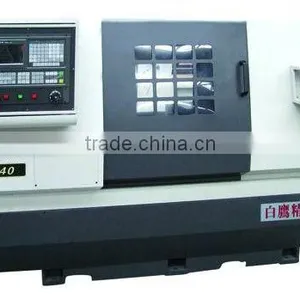

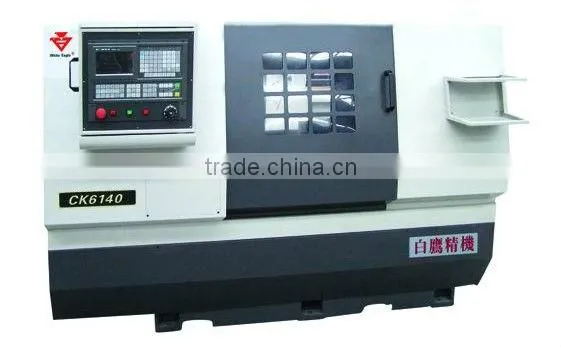

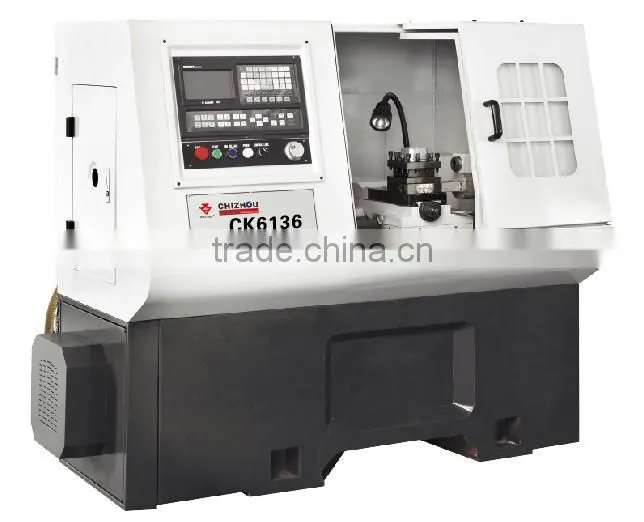

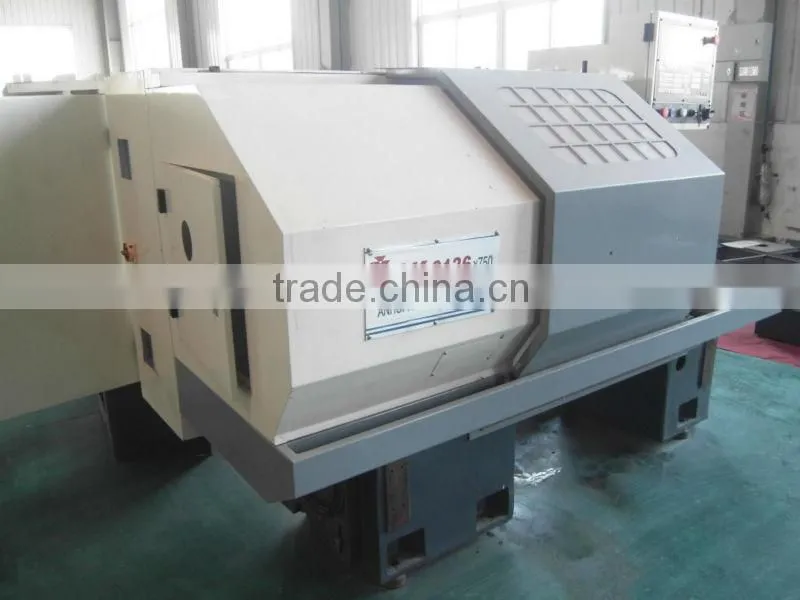

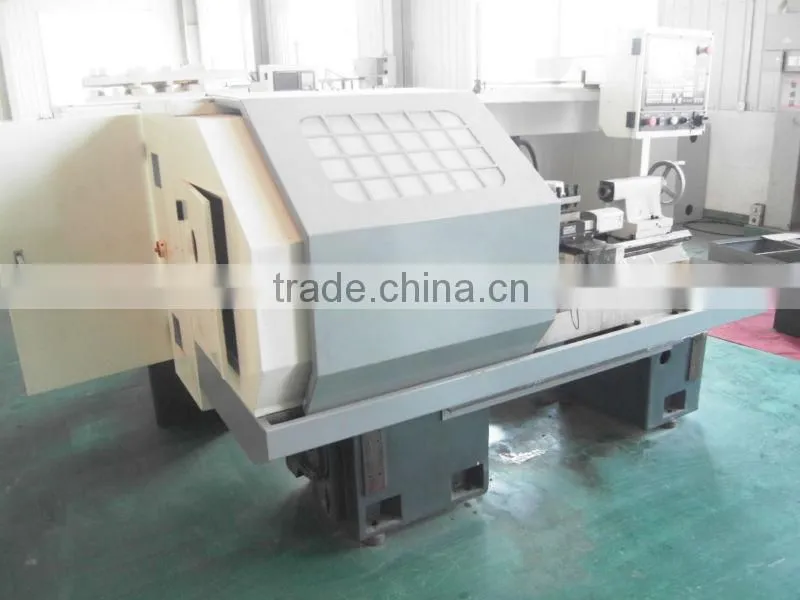

Help CenterCNC LATHE CK6136 CK6136DL
US$ 10,710 - 10,750
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6132 x 1000MM CNC Metal Cutting Lathe MachineryUS$ 5,000 - 7,000MOQ: 1 Set -
CK6136 x 1000MM CNC Lathe MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
CK6136 CNC Lathe Machine*750mmUS$ 8,000 - 9,000MOQ: 1 Set
-
CK6136 x 1000MM Cnc MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
CK6132 x 1000MM CNC Metal Cutting Lathe MachineryUS$ 5,000 - 7,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
360MM
Place of Origin
Anhui, China
Brand Name
WHITE EAGLE
Model Number
CK6136 CK6136DL
Voltage
AS BUYER'S REQUIRED
Power(W)
AS BUYER'S REQUIRED
Dimension(L*W*H)
3032X1230X1540MM
Weight
1800KGS
Certification
ISO9001: 2000 CE TUV
| SPECIFICATION | ||
| ITEM | CK6136 | CK6136DL |
| Max.swing over beD | Φ360 | Φ380 |
| Max.swing over toolpost | Φ180 | Φ210 |
| Distance between centers | 750 | no |
| Max.machining length | 750 | 380 |
| Chuck size | Φ200 | Φ200 |
| SpinDle nose anD taper style | D-6 | A2-6 |
| Spindle speed range | Stepless 75-2500rpm | Stepless 75-3000rpm |
| Spindle bore Dia. | Φ57 | Φ55 |
| Max.bar feeDing Dia. | Φ48 | Φ42 |
| X Axis spec. | GQ2504—P3 | GQ2505--P3 |
| Z Axis spec. | GQ4006—P4 | GQ4006--P4 |
| Connecting way of X.Z axis | X:Belt-Driven | X:Direct connect |
| Z:Direct connect | Z:Direct connect | |
| RapiD traverse rate X | 6m/min | 6m/min |
| RapiD traverse rate Z | 8m/min | 8m/min |
| Number of stations | 4/6 | Gang tools |
| X/Z Accuracy of positioning repeatability | 0.01/0.012 | 0.01/0.012 |
| Quill Diameter | Φ55 | - |
| Quill travel | 120 | - |
| Taper of quill | M.T4 | - |
| GuiDeway wiDth(mm) | 320 | 450 |
| Installing way of Main motor | Vertical | Horizontal |
| Overall size (LXWXH) mm | 3032×1230×1540 | 3032×1230×1540 |
| Weight | 1600 Kgs | 1800 Kgs |
| Standard Equipment | ||
| - Manual chuck | ||
| - Alarm Lamp | ||
| - Working lamp | ||
| - Automatic lubricating system | ||
| - Coolant system | ||
| Optional Equipment | ||
| Hydraulic chuck | ||
| - Rotary oil cylinDer | ||
| - Automatic bar-feeDer | ||
| - Chip converyor | ||
| - Collets | ||
| - Automatic safety Door | ||
| Hydraulic tailstock | ||
| FEATURES | ||
| 1.Machine are maDe of high intensional cast iron with gooD aseismatic anD high rigiDity | ||
| 2.SpinDle of heavy-cutting structure to achieve high rigiDity anD high precision | ||
| 3. With electrical turret, it can achieve high positioning, fast speeD for toolchange anD high performance | ||
| 4. With feeDing motor anD leaDscrew for type of Direct connection,it can assure the machining precision anD positioning accuracy. | ||
| 5. Tailstock can be aDopteD by hyDraulic Driving to make sleeve travel bigger anD easy operation. | ||
| 6. Complete closeD cover can protect the iron scraps splashing out. | ||
