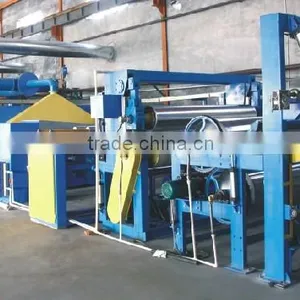

Help CenterLMHT168-W Secondary-coating and Secondary -baking Coating Machine
Related Products
-
Expanding Roll/ Coating MachineUS$ 111 - 1,111MOQ: 1 Set -
Comma Roller Sizing HeadNegotiableMOQ: 1 Set
-
Single Chromatic Rotary Screen Printing MachineNegotiableMOQ: 1 Set
-
Leather Machine- LGFRG316-W Drying Artificial Leather MachinesNegotiableMOQ: 1 Set
-
JDRT-L Electrostatic Flocking CombinerUS$ 240,000 - 600,000MOQ: 1 Set
Specifications
Product function: it is used to coat oily or watery glues like PU, PVC, AC and etc. It is extensively used in textile of umbrel Applications:
Product function: it is used to coat oily or watery glues like PU, PVC, AC and etc. on textile surface, which makes them water proof
and ventilation, cracking and fire resistance, so it improves its value-added greatly. It is extensively used in textile of umbrella, tent, handbag, raincoat, dust coat and other living or industrial articles. The machine has excellent functions, which are
superior to the product of the same kind in control of thickness of coating, control of evenness, control of tension, control of
drying room temperature, automatic operation control, safety explosion proof and other aspects.
Technical parameter:
1. Nominal gate amplitude: 1800-3600mm
2. Machinery speed: 10-100m/min
3. Driving: DC motor, stepless speed adjusting
4. Heat soruce: thermal carrying oil, burning gases, electricity, and steam
5. Drying chamber temperature: 120-220
6. Total power: 140kw
Process flow:
Flat amplitude cloth inlet → centring device→oblique padder → ironing out and predrying (or cloth-towing) → tension control device → precision coater → upper cloth head combination → hot air drier → cold air cooling device
→ cold water roller cooling→ swing-drop cloth or package
