USB Cable awm 2725
Specifications:
Connector Type : USB A/male USB B/male USB A/female Mini usb Micro Usb
Connector Color :White/Black/Blue/Gray
Jacket Color : Black/White/Gray/Beige/Blue
Cable Option : UL 2725 28*1P/24*2C
UL 2725 28*1P/26*2C
UL 2725 28*1P/28*2C
Cable Length: Customer Required
Cable OD : Customer Required

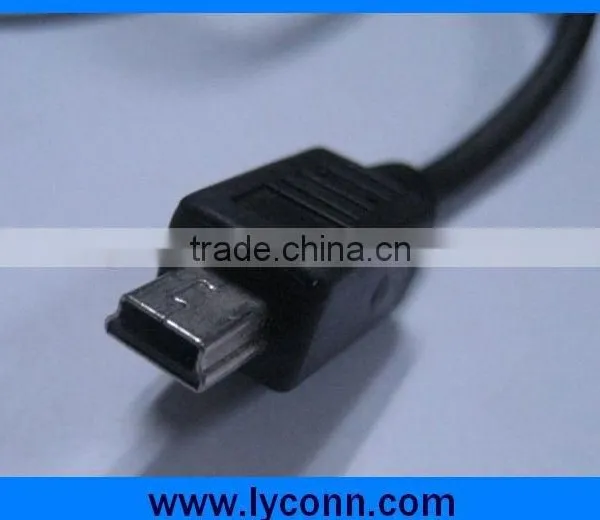

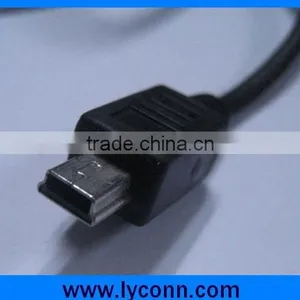

2.0mm Mini USB Cable
Housing material: PBT 30% G/F 94V-0
Contact material: brass
Contact plating: gold 1u inch on contact area other 100u-inch minimum lead
Current rating: 0.5A
Contact resistance: 2 ohms/m
Insulator resistance: 100M ohms minimum
Dielectric withstanding: 250V AC for one minute
Operating temperature: 0 to +60 degree Celsius
Shell material: brass
Shell plating: Ni 50u-inch minimum
Wire: 64 braid
UL, RoHS compliant
USB Connector Cable:
1. Application: For mobile charge, for signal transfer
2. Cable Specification: AWG24, AWG26, AWG28
3. UL Approved
4. Color: White, Grey, Black
Features:
1. Cable out diameter for opitions: OD=3.5mm, 4.0mm, 4.5mm;
2. USB 2.0/3.0 Cable, Mini USB, A male to B male;
3. High quality and high transfer speed;
4. Cable Jacket: PU, PVC, matt, dull and shining optional;
5. Connector; Removable assembly type, moulding type;
6. Special color, dimension, core, conductor, connector are welcome;
7. Application: For Computer, Printer, Camera, Card Reader, Digital Devices;
8. Colors optional: Black, White, Red, Blue, Green, Yellow, Orange, Grey;
9. Sample Policy: Normal samples are free, and the feight charges are usually collect by receiver;
10. Packaging Details: 10~50PCS per bag, 300~400PCS per carton.
