Ⅰ:Main Features and Composition
1.Simple structure & beautiful appearance, because we adopt the shape steel structure and process
as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
2.All the components of machine are from brand-famous enterprise so that they ensure
the machine normal function very effectively.
3.We adopt the automatic length fixed forming and cutting to guarantee the length to be precise and the
finished product clear without deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
Ⅱ :Composition of Machine
| Roll forming main machine | 1 unit |
| Manual Uncoiler | 1 unit |
| Control panel | 1 unit |
| Hydraulic station | 1 unit |
| Manual out table | 1 unit |
Ⅱ: Details of each composition

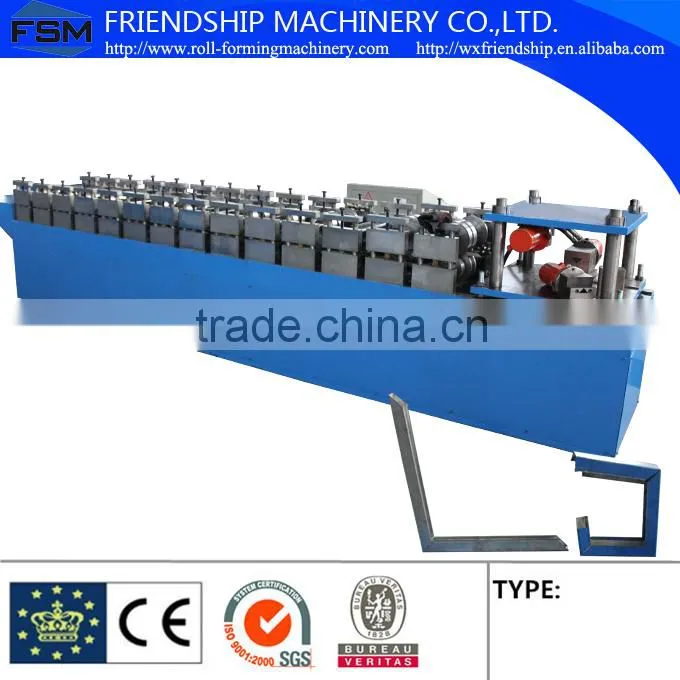

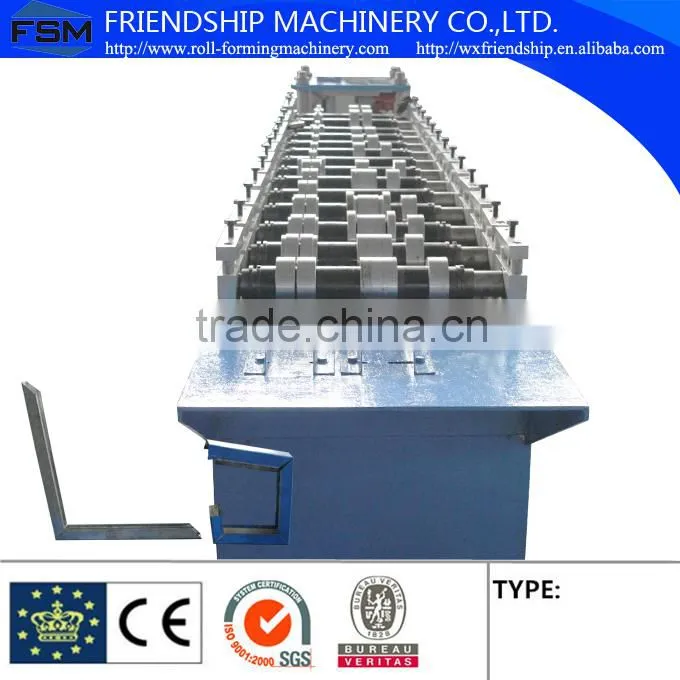

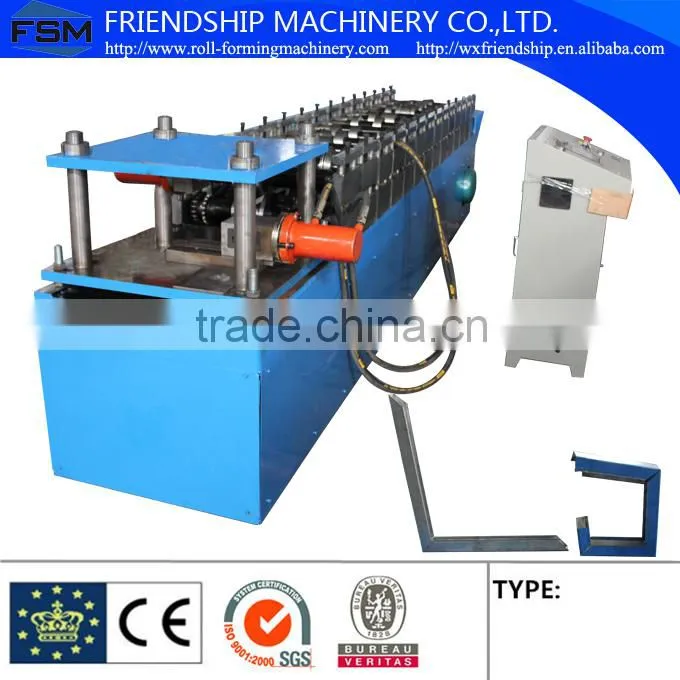

A. Roll forming main machine
1: Coil width:adopt profile,and changing size adopts adjusting the ring or spacer
2: working speed: 15m/min (not contain cutting)

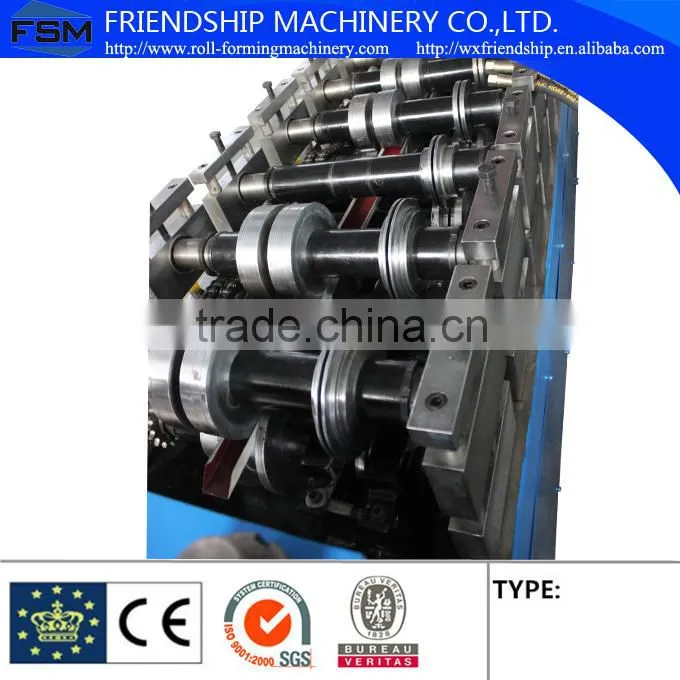

3: roll station: about 6 stations incl. embossing rollers.
4: material of roller: 45 steel, heat treatment.
5:material of main shaft:45 steel diameter roller: φ70mm
6: main power: 5.5KW motor. (built in machine)
7: forming thickness: 1.2 mm Q235mpa
8: Transmission: by single Chains 1.2 inch
9: feeding and guide: surface polished and coated with chrome
10: machine adopt new station
11:Cutting :
(1) Cutting after forming: Cut the sheet after roll forming to required length
(2)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(3)Material of blade: CR12with heat treatment ,
(4)Length measuring: Automatic length measuring
(5)Tolerance of length: 3m+/- 1.5mm

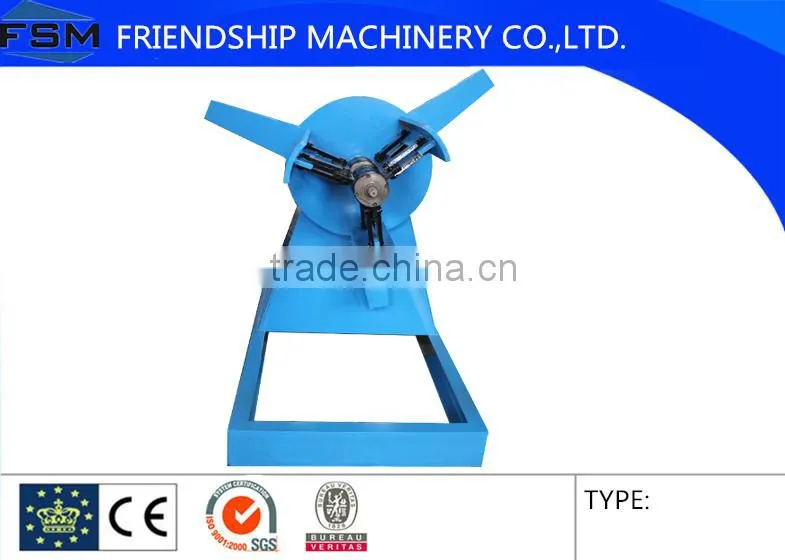

B.Uncoiler
Capability: 3 Ton
Bound of expand &fight: 450-510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

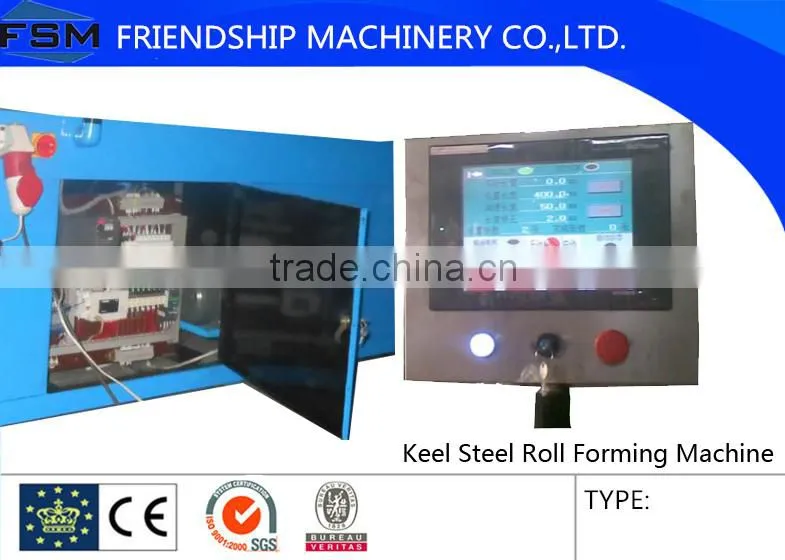

C. Control panel Panasonic
(1)Voltage, Frequency, Phase: 380v, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6).Control panel: Button-type switch and touch screen
(7)Unit of length: millimeter (switched on the control panel)

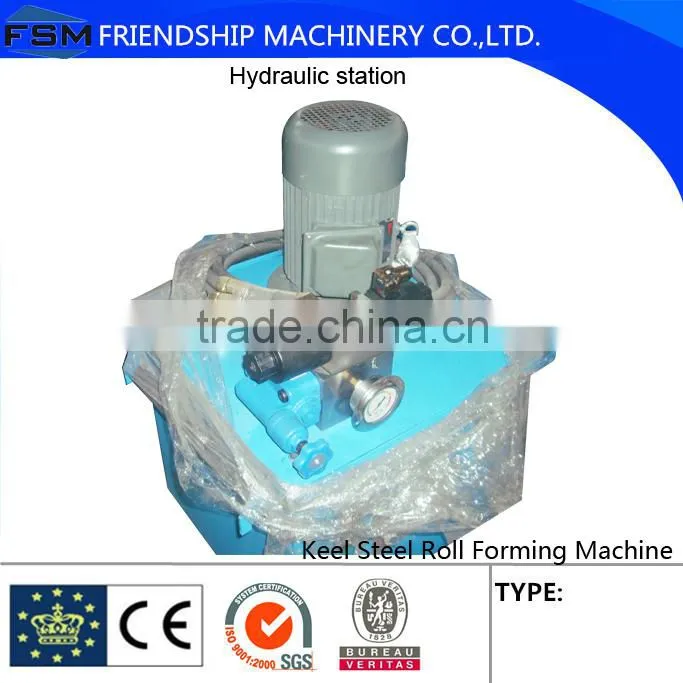

D: Hydraulic station
1: hydraulic station power: 3 kw
E. Manual out table:
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8m wide*0.6-1m high
(3)One out table with two support roller

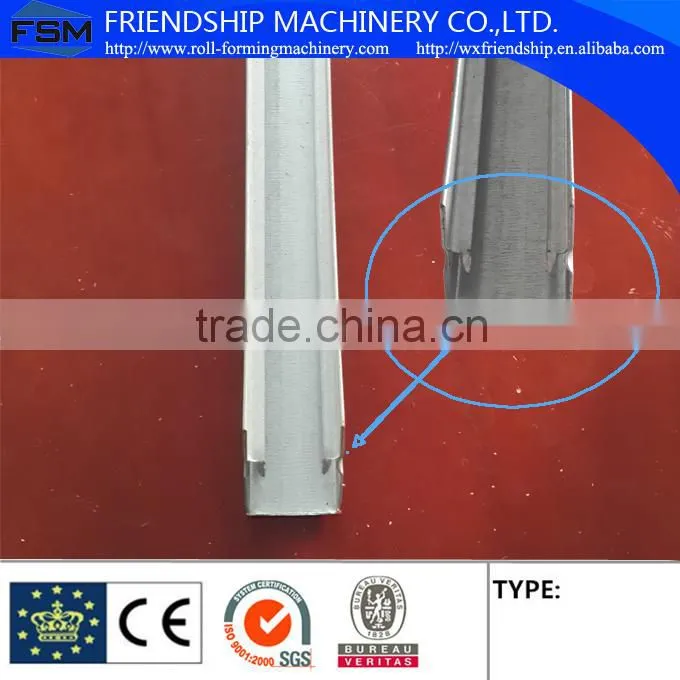

III: Profile for reference:
Technological process
De coiling-—roll forming—-cutting—out table
Warranty: 1 year warranty from date of shipment
Price pls contact with sales
Thanks
