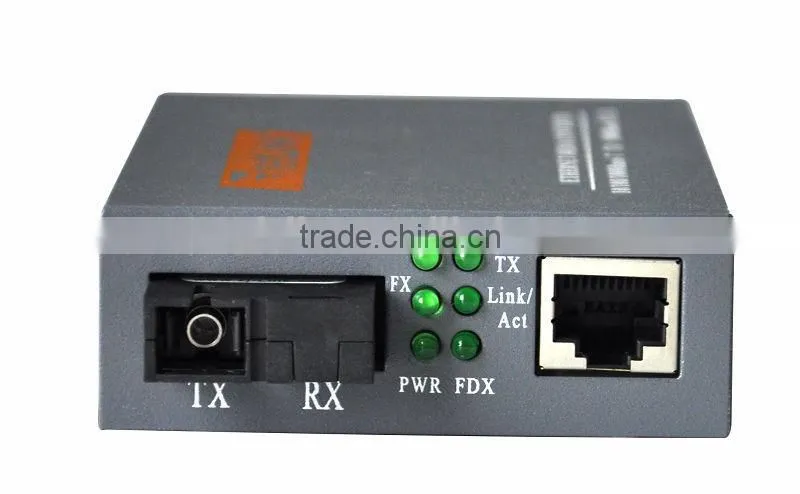

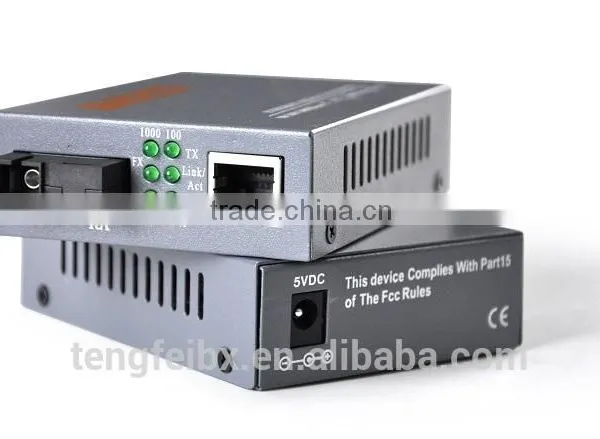

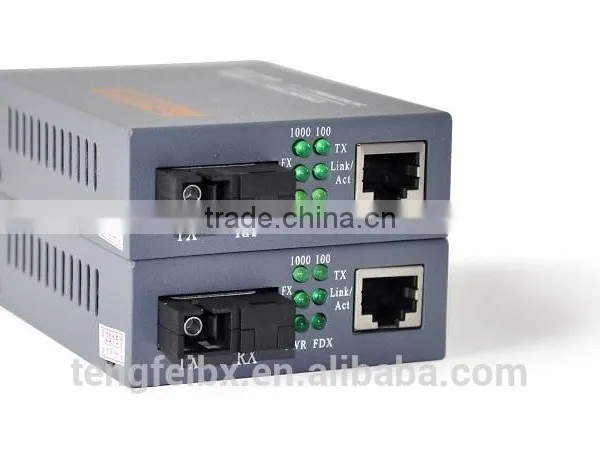

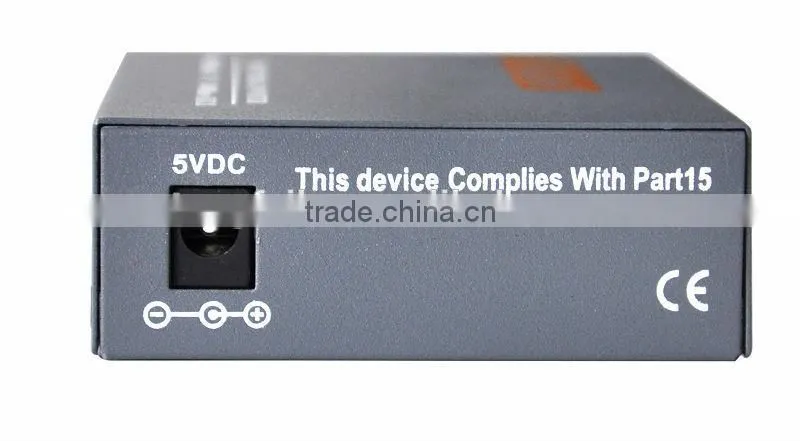

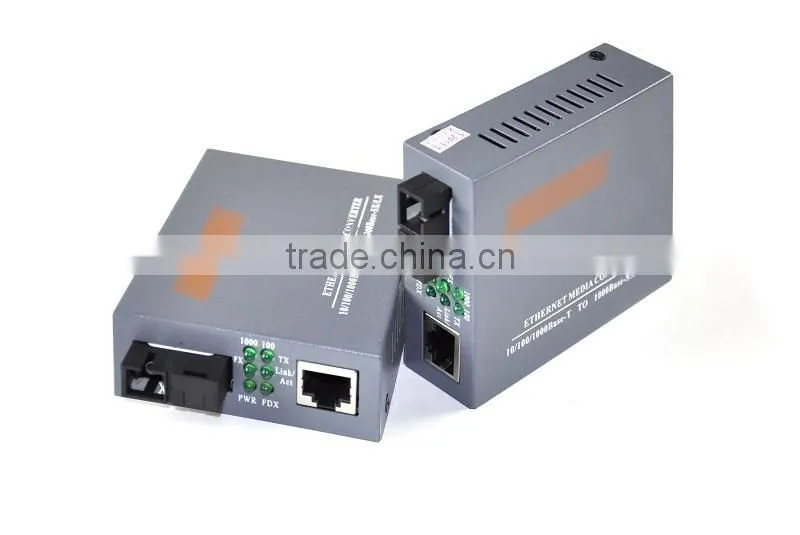

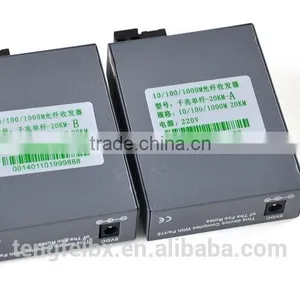

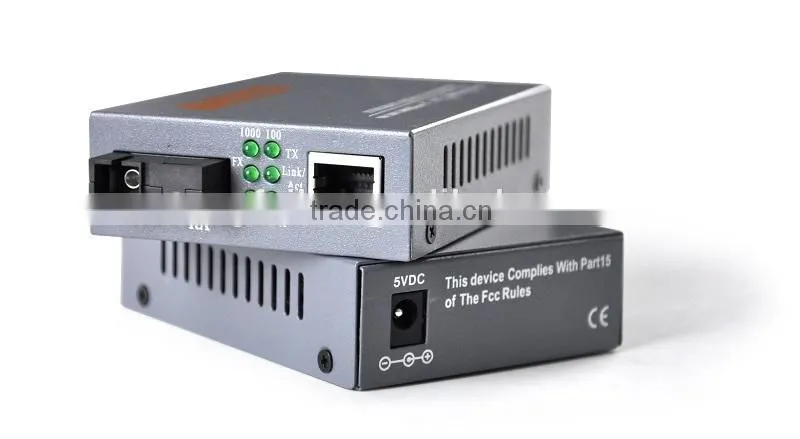

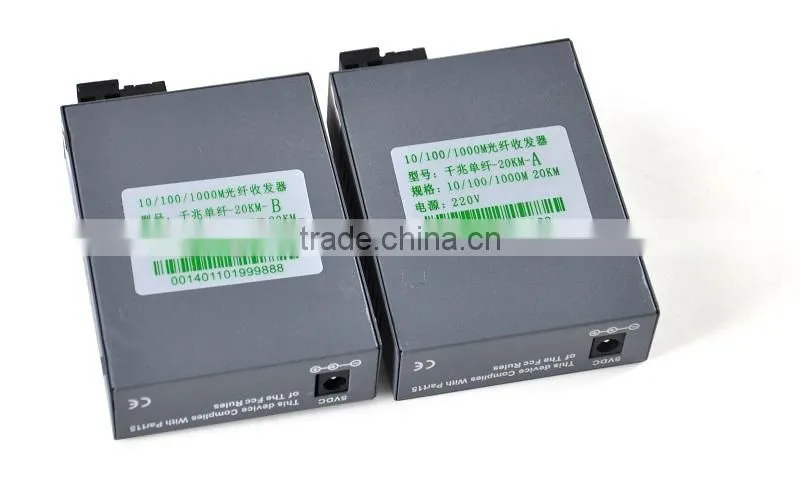

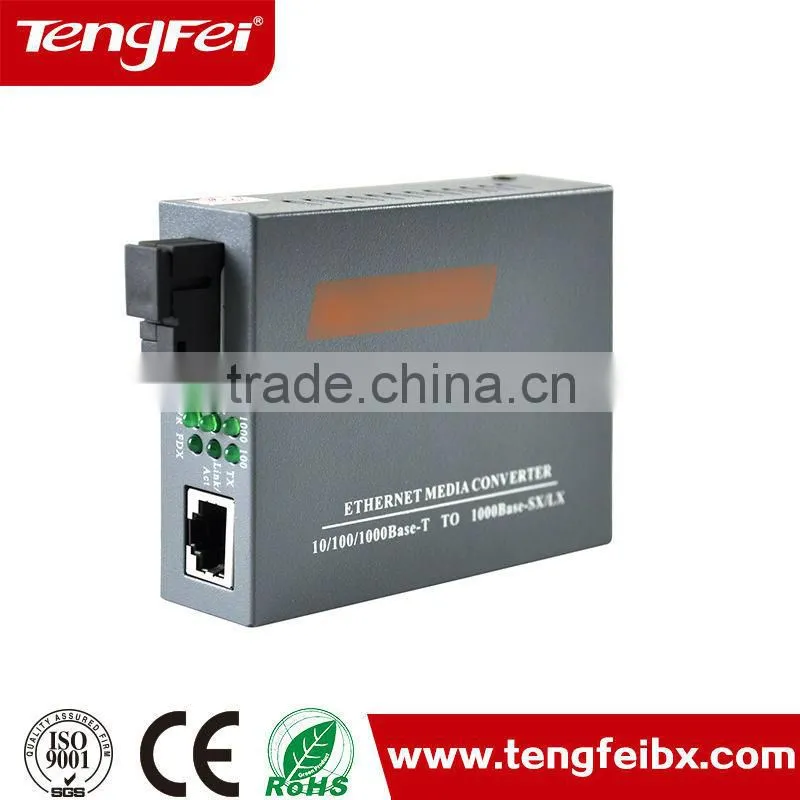

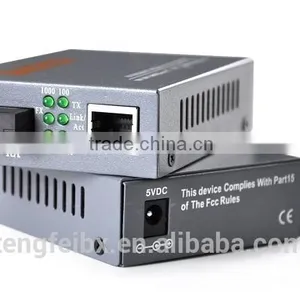

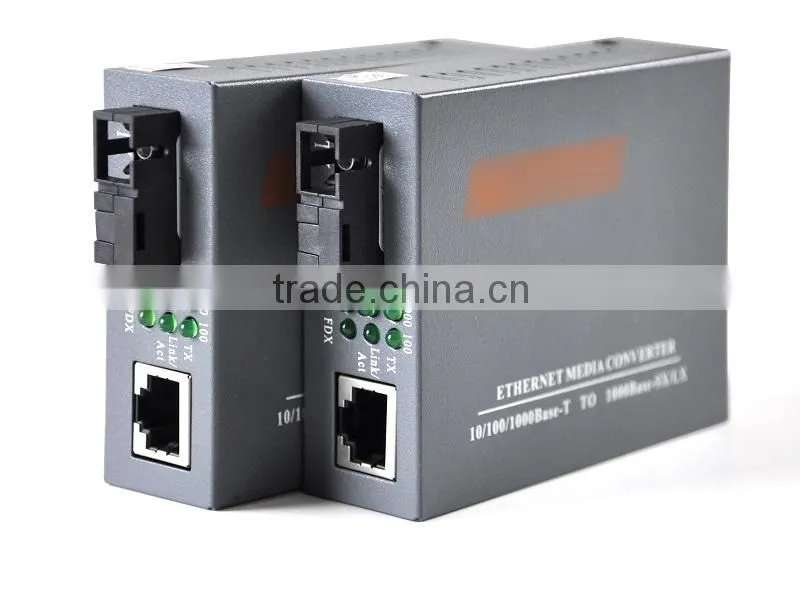

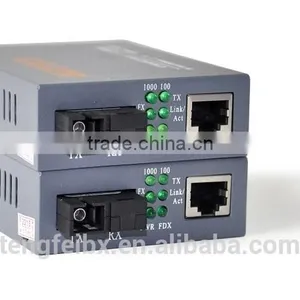

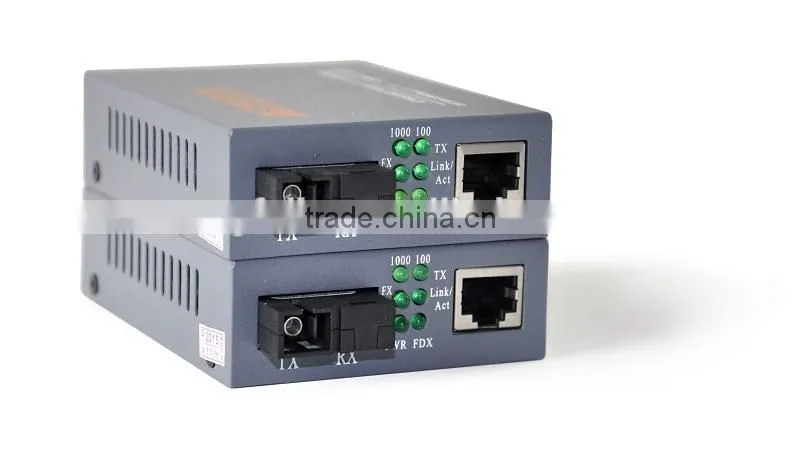

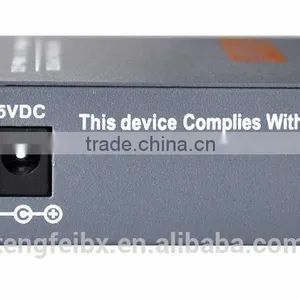

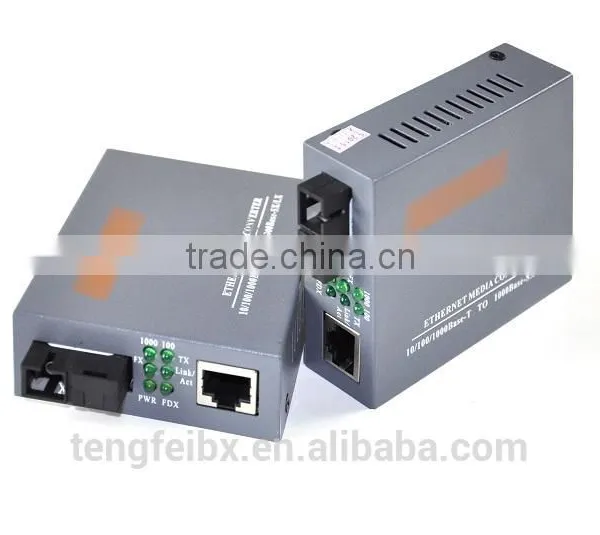

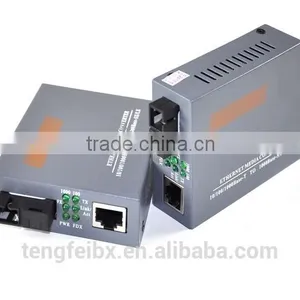

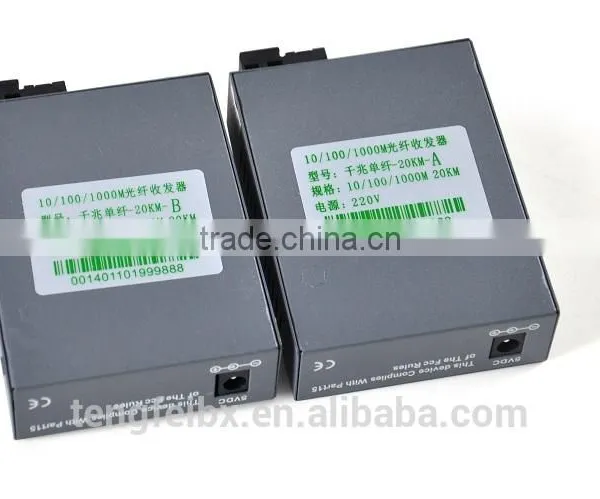

1000M 20KM, Media Convert, Fiber Ethernet Converter With 4 RJ45 Ports;Optical Media Converter
US$ 30 - 41.935
MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Tengfei
Model Number:
TF-HTB-4100, TF-HTB-4100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor/Indoor Fiber Optic 12 Core Optic Fiber Splice Tray for OdfUS$ 2 - 8MOQ: 1 Box -
Single Mode 1 Core Fiber Optic Cable Price Per MeterUS$ 0.001 - 0.03MOQ: 2000 Meters
-
High Quality SC/UPC Single Mode 9/125 Fiber PatchcordUS$ 0.35 - 3MOQ: 10 Pieces
-
Fiber to Ethernet Ethernet Optic Fiber Converter 10/100M Dual Fiber Multimode 2KM SC Media ConverterUS$ 3 - 8MOQ: 1 Box
-
PLC Optical Fiber Brahing DevicencUS$ 20 - 40MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Tengfei
Model Number
TF-HTB-4100, TF-HTB-4100
Feature
- 10/100/1000Mbps autosensing, auto-MDI/MDIX
- 1600byte super data packet transmission
- Full duplex-flow control, Half duplex-back pressure
- Link fault pass through (LFPT)
- Full- positioned LEDs to indicate power and network status
Parameters
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEE802.3z 1000BASE- SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 50/125um fiber cable (1km), 62.5/125um multimode fiber cable (0.5km) 9/125um single mode fiber cable (20/40/60/80/100/120km) |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 173mm(W) x 128mm(D) x 32mm(H) |
| Weight | Net weight : 0.74kg, Gross weight : 0.96kg |

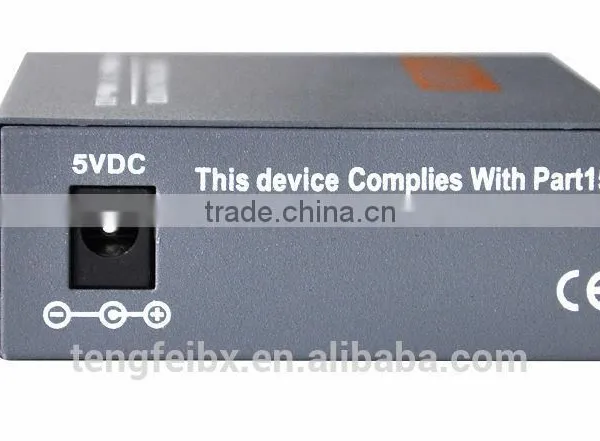

| Input Voltage | AC100 ~ 240V / 50-60HZ |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
Product name: 1000M 20KM, Media convert, Fiber Ethernet Converter with 4 RJ45 Ports;Optical media converter
Company Show:
Certification:
Why us:
6 years factory, focus on manufacture of Fiber Optic transmission products, including media converter, optical transeiver, video converter, PoE switch and industrial switch.
