SPECIFICATION
| Product name | small ball fiber making machine | Item no. | QL006D |
| Voltage | 380v 50Hz 3phase by order | Power | 45.18kw |
| Capacity | 100-250kg/h | Dimension | 16190*2430*4362mm |
| Labor | 1 operator | Weight | 2600kg |
MATERIAL APPLICATION
Regular fiber ,conjugate hollow siliconized PSF that 3D-15D ,32mm-64mm.
Micro fiber ,conjugate hollow siliconized PSF that 0.6D-3D.32mm-64mm.
Wool and Fire proof fiber
DESCRIPTION
- The automatic ball fiber machine is mainly used to make the raw material fiber to the ball fiber which used to fill pillow ,cushion and garment etc.

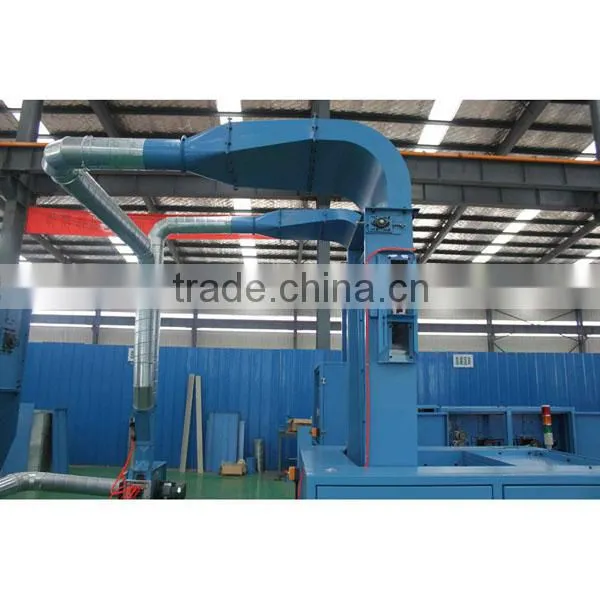

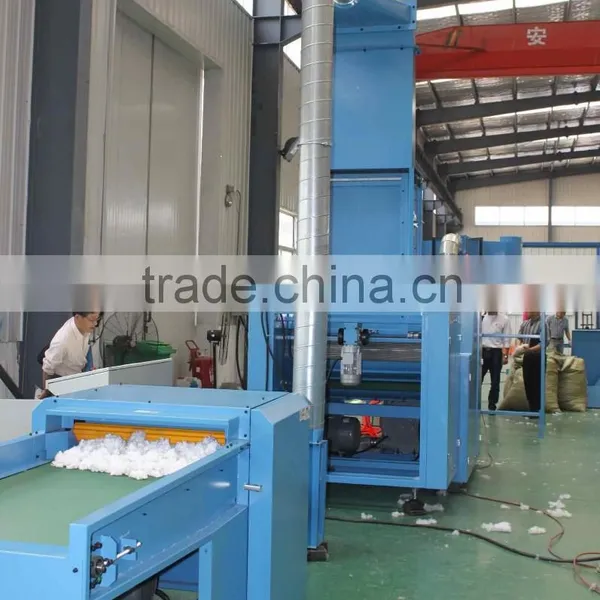

- The whole line is assembled with bale breaker,pre-opening blower, , fiber feeding blower ,vibration hopper ,ball fiber machine ,output hopper and sending blower.
- It can be handled by only 1 operator adjusted by PLC control system
- Metal separator by magnet;
- Electrical metal alarm system;
- Adjustable frequency according to different fiber type;
- All electrical key parts are adopted by the most famous world brand such like Siemens, Schneider and Omron etc.
- The electrical control system is able to meet CE, UL and Australia safety standard;
MAIN EQUIPMENTS

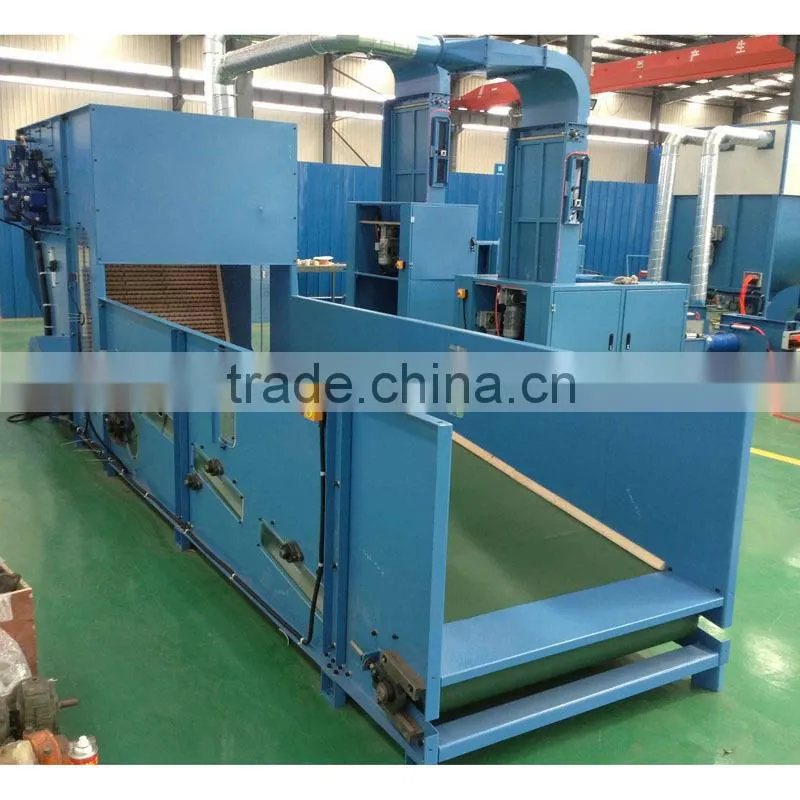

1.Bale breaker
The bale breaker is mainly used to load a full bale of raw material and transport to the next program automatically;
There is no need any operator working for this program during the operation within 1 hour;

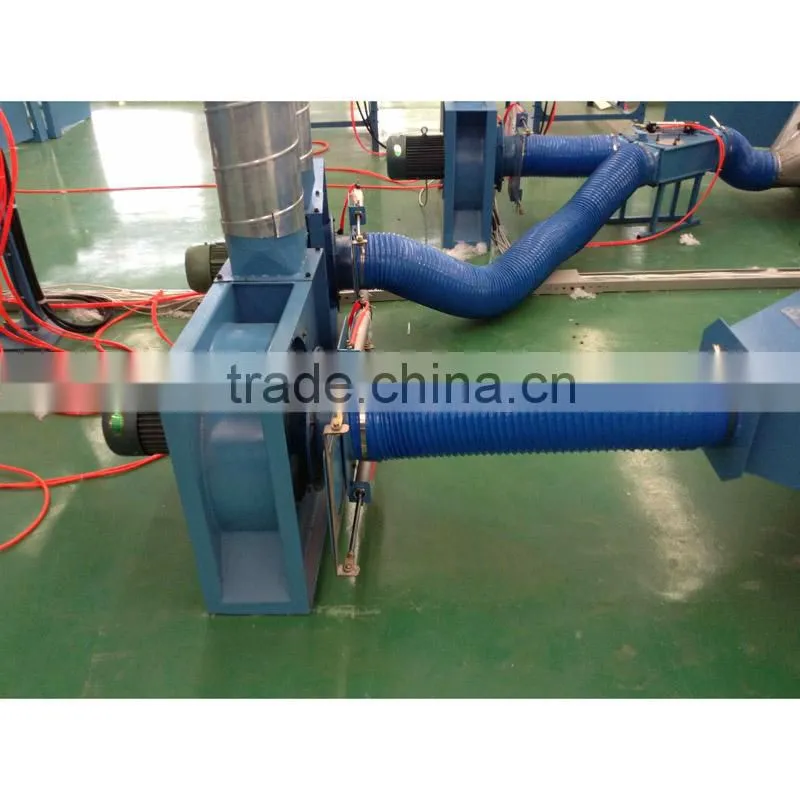

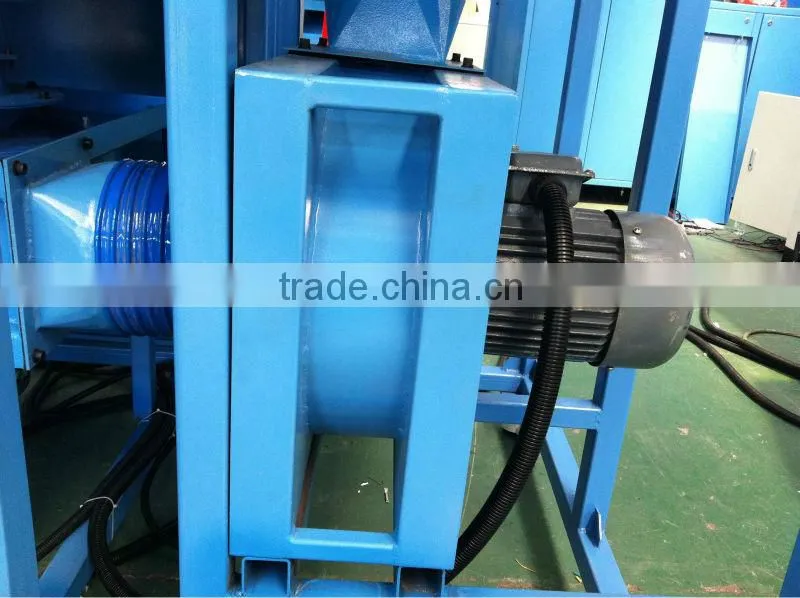

2.Feeding blower A
The device is used to feed the fiber to the next program.
The material of blade is aluminum which could transport the fiber far, it’s highest technology come from the Europe.
Dynamic balance system make the machine working without noise and shaking.

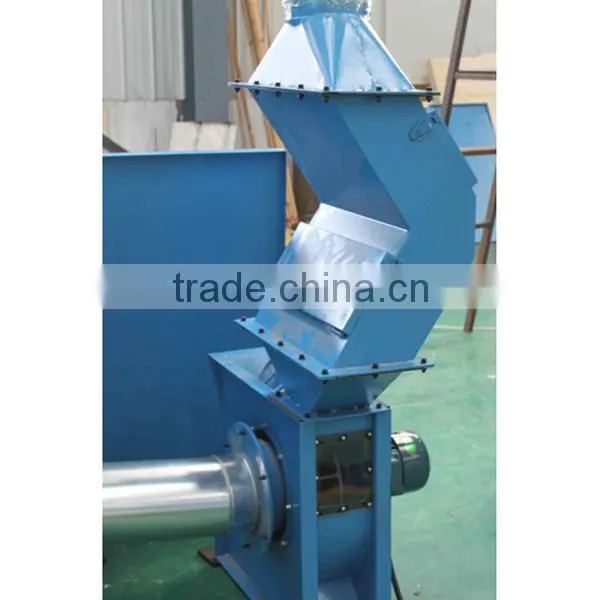

3.Pre-opening blower
The pre-opening blower is made by pins that is able to process the 60% opening rate before ball fiber is producing in order to receive high capacity and better finished ball fiber .
4.Metal separator
The metal separator is the first step in the machine line to collect the metal while operation;
5. Vibration hopper
The vibration hopper is mainly used to feed the opened fiber to the balling device evenly and continuously.
6.Ball fiber machine
The ball fiber machine is able to produce the polyester ball fiber continuously with high capacity 100-200kg/h and up.

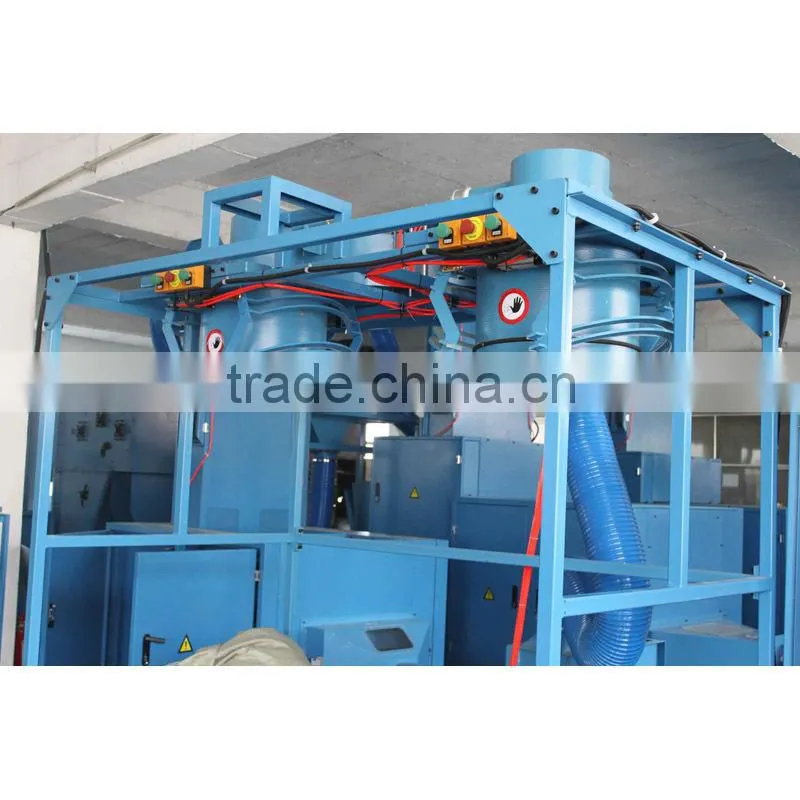

7.Filling device
The filling device is used to fill the finished ball fiber into shipping bags by double slot;
Modification:Pressing device to fill more.
8.Control system
The whole line is controled by Siemens PLC program.
Safety relay/24v low voltage
The control system is able to meet UL and CE rules.
RAW MATERIAL
FINISHED BALL FIBER
Packaging & Shipping
Qingdao Lion Machinery is focus on home textile machinery since 2007, as a leading supplier of custom-engineered manufacturer in China, we are mainly working with filling machines that mainly used for pillow, cushion and comforter, sofa cushion, chair pads and teddy bears, pet bads, wadding roll stuffing and any other filling production in this field;
Our automation division designs and builds some of the most innovative weighing equipments such like bale breaker with load cell; automatic weighing and vacuum filling system and solutions for sofa cushion vacuum filling system that is able to mix more then 3 different materials into a complete lines; automatic wadding roll pillow stuffing machine line;
All automatic systems are controlled by PLC such like Siemens, Schneider, AB or other brand by the customer’s requirement; Different power condition is possibly be ordered.
We are able to supply non-standard function required by clients based on standard equipment configuration by our professional R&D team, text the finished machine with different voltage condition before delivery;
We have exported our equipments in about 60 countries and districts over the world market
and set up our agent office in Spain, Portugal and East Asia.
We provide long term and good service for our clients in 24 hours feedback.
As a custom-engineered technical supplier, we welcome our customers requirement specialized to your production; If you find anything that you need, please feel free to call us.
MARKET
We have exported our equipments in about 60 countries and districts over the world market and set up our agent office in Spain, Portugal and East Asia ,
Customer location:
Australia, Aruba, Armenia, Bangladesh, Brazil, Belgium, Canada, Cyprus, Columbia, Denmark,
Egypt, Estonia, Greece, Hungary, Holland, India, Italy, Indonesia, Iran, Jordan, Korea, Mexico,
Philippine, Poland, Paraguay, Russia, South Africa, Spain, Slovenia, Thailand, Turkey, UAE, UK,
USA, Chile, Vietnam, Algeria, Argentina, Saudi Arabia, Bulgaria, Dubai, Czech Republic,
Zimbabwe, Libya, Maldives, Lithuania, Lebanon, Malaysia, Macedonia, Moldova, Nigeria, New
Zealand, Portugal, Japan, Switzerland, Serbia, Cyprus, Tunisia, Venezuela, Uruguay, Singapore, Iraq.
We are able to supply machine commissioning support and training
oversease for larger automatic machine lines.
Please contact us as soon as any problem happends with some photos and
descriptions; our engineers will response within 24 hours with technical
instructions.
All spare parts are standard that can be found from local.
We will send it to you by overnight if needed.
