Orifice plate flow meter

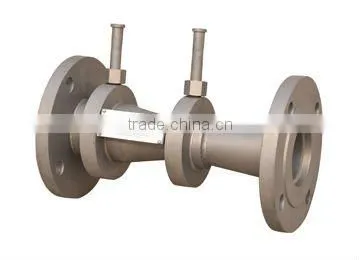

Annular orifice plate is offered by the American Howell in the 30’s,and it has some remodel experiments by the British NEL in the 60’s,its structure is one circular plate which is with pipeline use the same coaxial,circular plate by bracket support,the upsteam and downsteam of circular plate have taking pressure hole.
Main characteristic
Annular orifice plate not only can measured the generally fluid flow rate but also can be used for the measured contains all the impurities of fluid(such as dust,suspension,the precipitation,etc),such as all kinds of gas,hot wind,flue-gas,natural gas,cooling recirculating water;
Structure strong,performance stable;
Can be measured the containing impurities of fluid;
Need the before and after straight pipe sections are shorter(before 2D,after 0.5D)
Use the jacket type heat structure,and suitable for the need warming or cooling of fluid.
Technical Parameters
Taking pressure mode:before and after side surface taking pressure,span taking-pressure;
Nominal pressure:≤32MPa(≥20MPa,it can use welding type);
Caliber:50~2200mm;
Accuracy(indeterminacy):+/-2.5% actual demarcate can be reach+/-1%;
Range of application:open hole diameter rate β:0.5 ≤ β ≤ 0.72
Reynolds number range ReD:107 ≥ ReD ≥ 5000
The total area of our company is 15000 square meters,and the building area is 6000 square meters.Our company have five utility model patents,three software copyrights.And we also have production qualification and liquid calibration settings for flow meters from Dn25mm to DN2000mm.We have strong R&D capability.Our company and our head office have large quantity of running water industrial users,and we also have strong marketing capabilities on battery powered electromagnetic flow meter.We are expecting to cooperate with manufacturer who can provide battery powered flow converter,or through expand cooperation in various modes.To develop the Chinese market and international market of battery powered flow meter together.To learn from each other and to achieve win-win situation.
We are expecting sincere cooperation.If you have interest,please feel free to contact us at any time.We are looking forward to hearing from you.
