TSJ-3500L single-layer co-extruded cast embossed film line
Features:
This line mainly uses LLDPE,LDPE,HDPE and EVA as raw materials to produce embossed film.The film is suitable for home, medical treatment, garments, industry and public. It is an ideal environment product that could replace PVC plastic products. it mainly uses LLDPE, LDPE,HDPE and EVA as raw materials to produce embossed film.
Main Technical Parameters:
Model |
TSJ-1500L |
TSJ-2000L |
TSJ-2500L |
TSJ-3500L |
Screw Diameter |
Φ90mm |
Φ110mm |
Φ125mm |
Φ150mm |
L/D Ratio of Screw |
35:1 |
35:1 |
35:1 |
35:1 |
Width of Die Head |
1500mm |
2000mm |
2500mm |
3500mm |
Width of Finished Products |
1200mm |
1700mm |
2200mm |
3200mm |
Thickness of Finished Products |
0.02~0.20mm |
0.02~0.20mm |
0.02~0.20mm |
0.02~0.20mm |
Max. Extrusion Capacity |
150kg/h |
200kg/h |
240kg/h |
320kg/h |
Total Power |
120kw |
165kw |
210kw |
260kw |
Overall Dimensions(LxWxH) |
13x4.5x4.0m |
14x5.5x4.0m |
15x6.0x4.2m |
17x7.5x4.3m |
Weight |
~20T |
~27T |
~32T |
~43T |
Note: Correct specifications depend on the actual model all specifications are subject to change without prior notice. | ||||

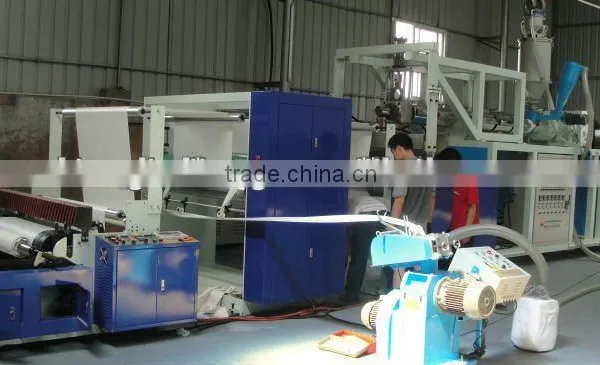

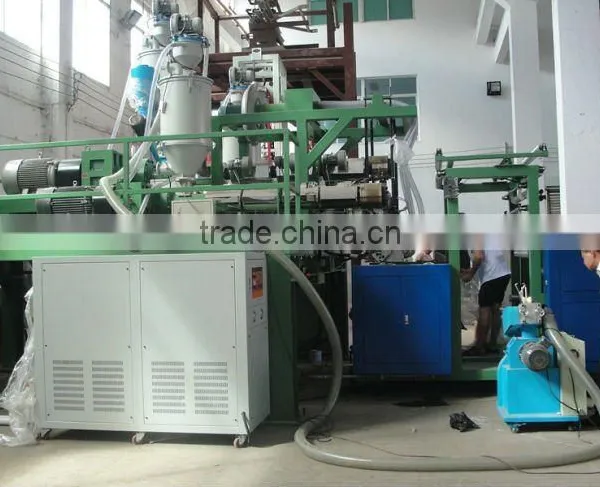

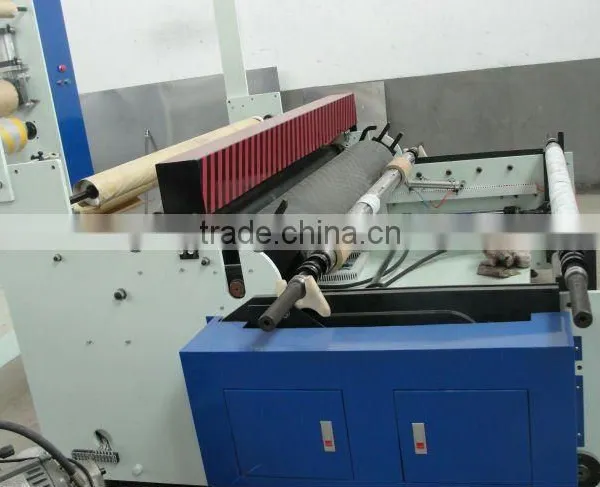

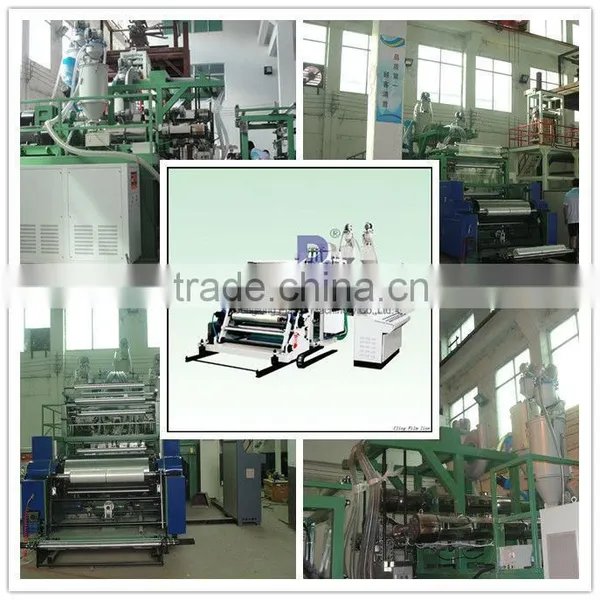

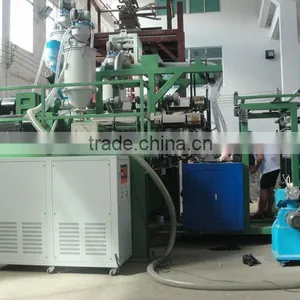

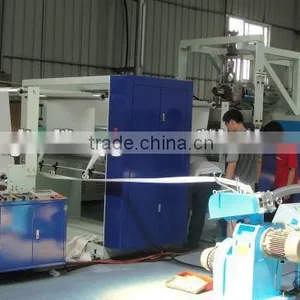

Pictures:
Sales services:
Train operators for the clients who have bought the products of our company.
Once a contracted product is finished, a blank-run test for 72 hours shall be done in the company.
The client may appoint his men to the company for a prelimimary acceptance check of the products(stress test) together with the technicians of the company before the products are delivered from the company.
During the period as the products are in installation or application in the client's factory,our factory may send technicians to help adjust and test the products upon the invitation by the client until they are placed in operation.
The stress test for the large sized wide-coverage plastic blowing machine set shall be performed also in our factory in one step before being placed in operation,which may give confidence to the clients.
Plan and design a complete unit of the production line for clients,provide clients with secondary device in a quickest way and implement a full set supply.
We are very pleased to cooperate with you to create our bright future.
