Specifications
PP Film Blowing Machine/PP Film Extruder LineBlown Film Machine
auto winder/hopper
It's exported to Indonesia Colombia

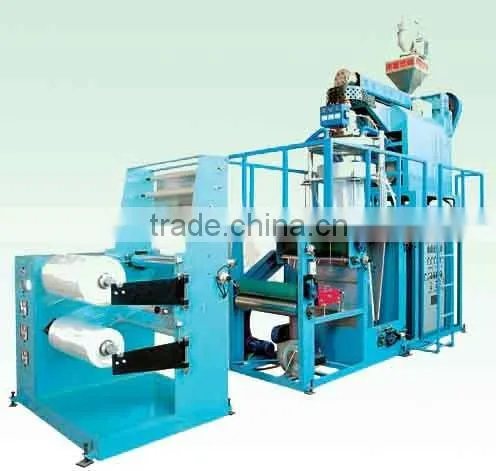

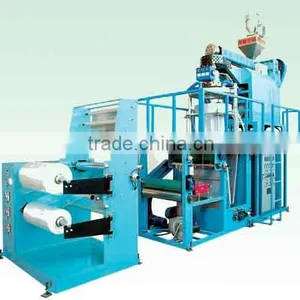

Polypropylene PP Plastic Film Extruder&Film Blowing/Blown Machine Water-cooled/PP blown film line
XSJ65-FMX1000L
Features:
XSJ-L series lower water-cooled film blowing machine employs lower blowing and self-overflowing method to produce products. The product is features by high transparency, good printing performance and adhesive. The extrusion system of the machine and the plasticization of the machine head have met the international advanced standard. Additionally, there are many types of equipment such as rotary machine head, static elimination and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.
Main Technology Parameters
1) LAYER NUMBER: one layer
MAX. FILM WIDTH: 800mm
FILM THICKNESS: 0.020-0.12 mm
RAW MATERIAL: PP
Output: 65 KG/H
2) EXTRUDER:
SCREW DIAMETER: Φ65mm
SCREW L/D: 25:1
HEATER CAPACITY: 13.1 kw
DRIVING MOTOR: 22 kw
3) DIE:
DIE DIAMETER: Φ400mm
HEATER CAPACITY 10.5 KW
COOLING AIR BLOWER: 0.75 KW
4) HAUL-OFF:
DRIVING MOTOR: 1.5 KW
TAKE-UP SPEED: 10-55 m/min
WINDER DRIVE MOTOR: 4.1 KW
TEMPERATURE CONTROL: 7 units
WHOLE POWER WITH TOTAL MACHINE: About 55 KW
SHAPE SIZE: (L x W x H) 6.7 X2.5 X4.2 m
WEIGHT: About 3500KG
Send Inquiry to This Supplier
