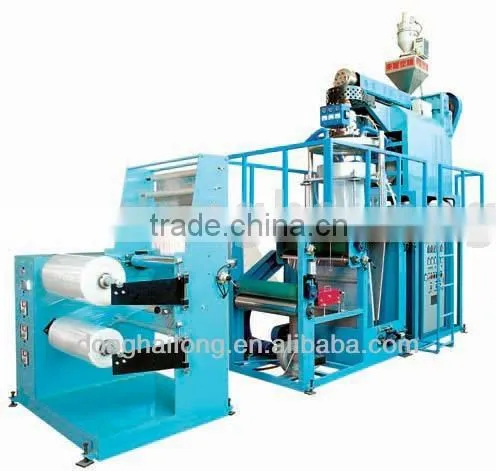

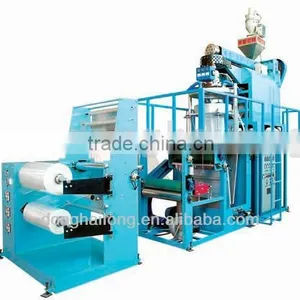

Help CenterNewest Plastic pp Film Blowing Machine
Related Products
-
One Layer Water-cooled PP Film Blowing MachineNegotiableMOQ: 1 Set -
Single-layer/Multi-layer Co-extruded Cast Embossed Film LineNegotiableMOQ: 1 Set
-
Lower Water-cooled One Layer PP Film Blowing MachineNegotiableMOQ: 1 Set
-
XSJ-L Series Single Layer PP Film Blowing MachineNegotiableMOQ: 1 Set
-
Polypropylene Plastic Film Extruder&Film Blowing/Blown MachineNegotiableMOQ: 1 Set
Features:
1)This PP film blowing machine employs lower blowing and self-overflowing method to produce products.
2)The product is features by high transparency, good printing performance and adhesive.
3)The extrusion system of the film blowing machine and the plasticization of the machine head have met the international advanced standard.
4)Additionally, there are many types of equipment such as rotary machine head, static elimination and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.
Main Technology Parameters
Model |
XSJ45-FMX500L |
XSJ55-FMX800L |
XSJ65-FMS1000L |
Max. Folded Film Width |
400mm |
650mm |
800mm |
Film Thickness |
0.02~0.12mm |
||
Output |
35kg/h |
50kg/h |
65kg/h |
Raw Material |
PPLDPELLDPE |
||
Screw Diameter |
Φ45mm |
Φ55mm |
Φ65mm |
Screw L/D |
28:1 |
28:1 |
25:1 |
Total Power of the Machine |
~28kw |
~45kw |
~55kw |
Shape Size(LxWxH) |
4.5x1.3x3.0m |
6.0x1.8x3.6m |
6.7x2.5x4.2m |
Weight |
~2000kg |
~2700kg |
~3500kg |
Correct specifications depend on the actual model all specifications are subject to change without prior notice. | |||
