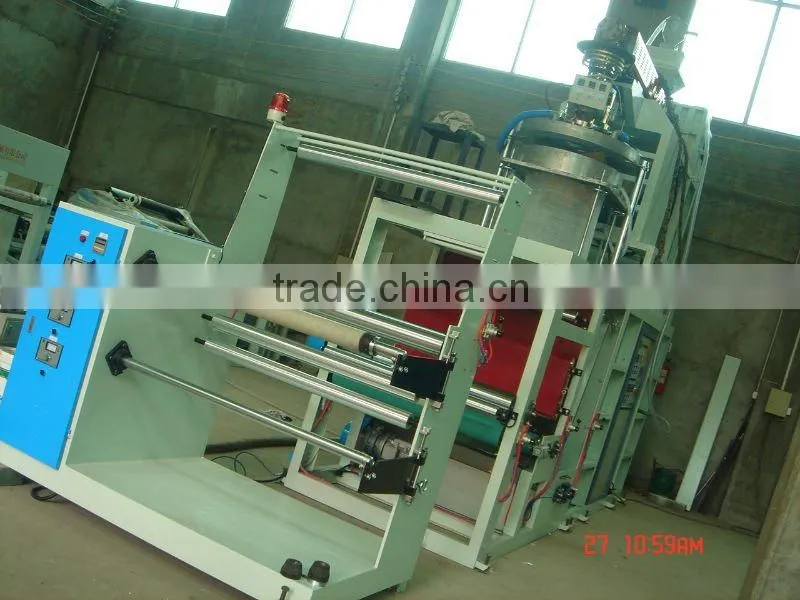

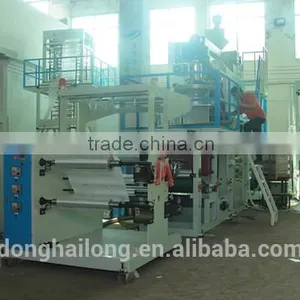

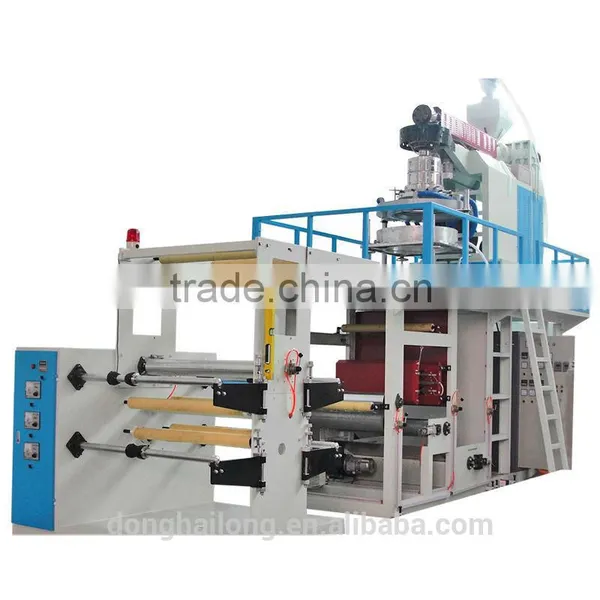

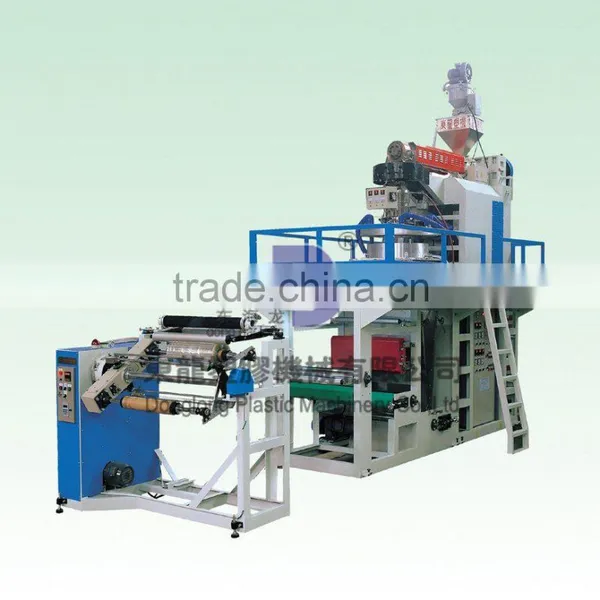

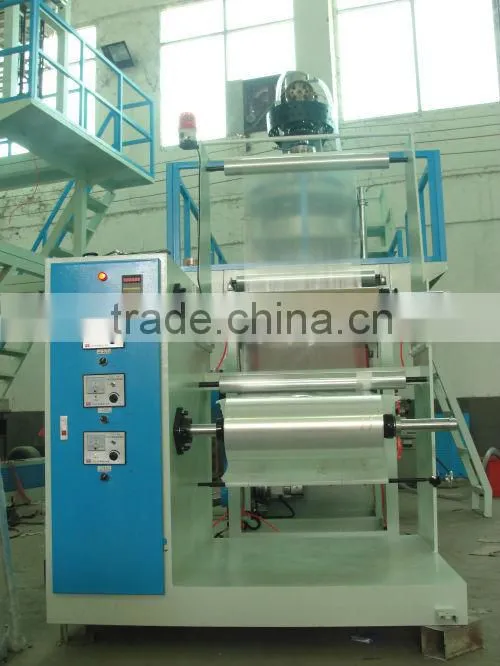

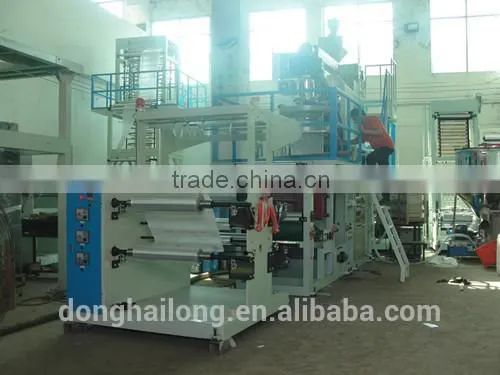

Mono-layer Lower Water-cooled PP Film Blowing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PP
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mono-layer Downward Water Cooled PP Film Blowing MachineNegotiableMOQ: 1 Set -
One Layer PP Film Blowing MachineNegotiableMOQ: 1 Set
-
Lower Water-cooled PP Plastic Film Extruder MachineNegotiableMOQ: 1 Set
-
Advanced Plastic PP Film ExtruderNegotiableMOQ: 1 Set
-
Latest Lower Water-cooled PP Film Blowing Machines/Plastic Machine/Film ExtruderNegotiableMOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
PP
Blow Moulding Type
Extrusion Blow Moulding
Automatic
Yes
Place of Origin
Fujian, China
Brand Name
Donghailong
Model Number
XSJ65-FMX1000L
Voltage
220-380v
Power(W)
55KW
Dimension(L*W*H)
6.7 X2.5 X 4.2m
Weight
3.5 T
Certification
CE,SGS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Features:
This PP Film Blowing Machine employs lower blowing and self-overflowing method to produce products. The produce is features by high transparency, good printing performance and adhesive. The extrusion system of the machine and the plasticization of the machine head have met the international advanced standard. Additionally, there are many types of equipment such as rotary die head, corona treatment and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.
| Main Technology Parameters | |||
| Model | XSJ45-FMX500L | XSJ55-FMX800L | XSJ65-FMX1000L |
| Max. Folded Film Width | 400mm | 650mm | 800mm |
| Film Thickness | 0.02~0.12mm | ||
| Output | 30 kg/h | 40kg/h | 50 kg/h |
| Raw Material | PP/LDPE/LLDPE | ||
| Screw Diameter | 45mm | 55mm | 65mm |
| Screw L/D | 28:01:00 | 25:01:00 | |
| Total Power of the Machine | ~28KW | ~45KW | ~55KW |
| Shape Size( L x W x H) | 4.0X1.3 X 3.0m | 6.0 X 1.8X3.6m | 6.7 X2.5 X 4.2m |
| Weight (T) | ~2 T | ~2.7 T | ~3.5 T |
| Correct specifications depend on the actual model all specifications are subject to change without prior notice! | |||
