Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Latest Downward Water-cooled PP Film Blown Machine

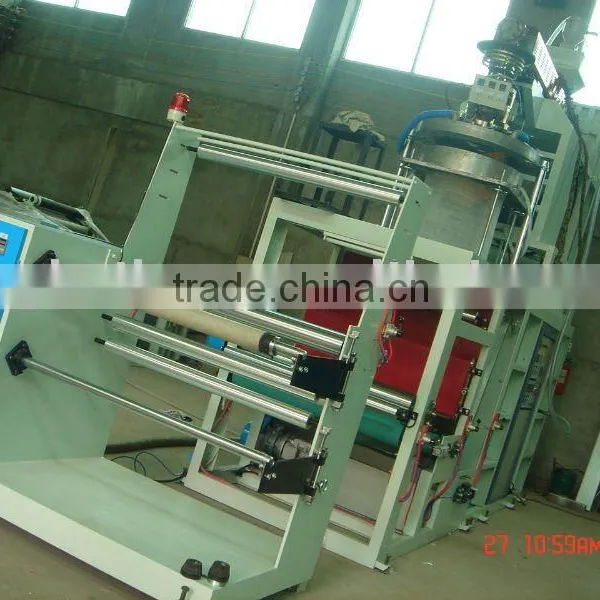

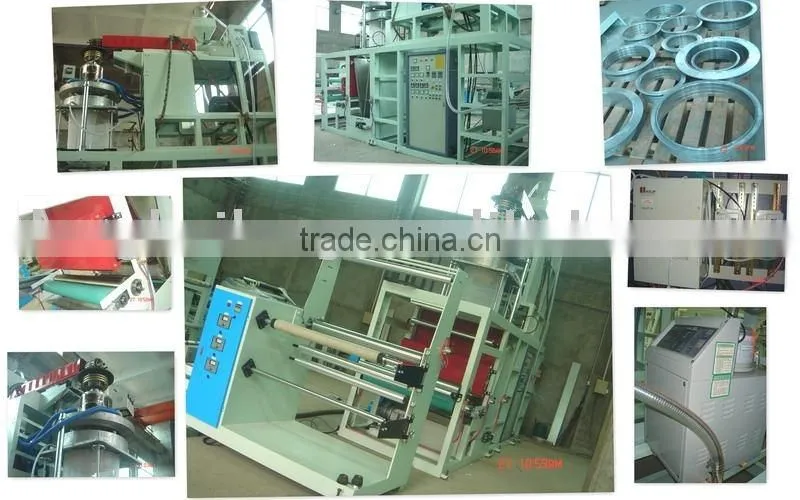

Latest Downward Water-cooled PP Film Blown Machine

Name: Latest Downward Water-cooled PP Film Blown Machine
Brand: donghailong
SKU: 122550359

Latest Downward Water-cooled PP Film Blown Machine thumbnail-1

Latest Downward Water-cooled PP Film Blown Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

Film

Plastic Processed:

Contact Supplier Request Quote Chat Now

Donglong Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Film

Plastic Processed PP

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Fujian, China

Brand Name donghailong

Model Number XSJ55-FMX800L

Certification CE,SGS

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hot sell: PP Film Blown Machine
with Rotating die head
Exported to Indonesia Colombia etc

XSJ-L Series Lower Water-cooled PP Film Blowing Machine/Blown Film Line

Features:

XSJ-L series lower water-cooled film blowing machine employs lower blowing and self-overflowing method to produce products. The produce is features by high transparency, good printing performance and adhesive. The extrusion system of the machine and the plasticization of the machine head have met the international advanced standard. Additionally, there are many types of equipment such as rotary die head, corona treatment and fully-automatic precise temperature control available for your choice. It is the ideal packing material for food, garment and other high grade products.

Main Technical Parameters:

Model No.	XSJ45-FMX500L	XSJ55-FMX800L	XSJ65-FMX1000L
Layer Number	Single Layer
Max. Folded Film Width	400mm	650mm	800mm
Film Thickness	0.02~0.12mm	0.02~0.12mm	0.02~0.12mm
Output	35kg/h	50kg/h	65kg/h
Raw Material	PP, LDPE, LLDPE
Screw Diameter	Φ45mm	Φ55mm	Φ65mm
Screw L/D	28:1	28:1	25:1
Heater Capacity	8.3kw	10.7kw	13.1kw
Power of Main Motor	11kw	18.5kw	22kw
Die Diameter	150mm	250mm	400mm
Die Heater Capacity	4.5kw	8kw	10.5kw
Cooling Air Blower	0.55kw	0.75kw	0.75kw
Water Cooling Rings	10, 12, 15, 17, 20, 25, 30, 32, 35, 40cm	25, 28, 30, 35, 40, 45, 50, 55, 60, 65cm	35, 40, 45, 50, 55, 60, 65, 70, 75, 80cm
Haul-off Driving Motor	1.5kw	1.5kw	1.5kw
Take-up Speed	10~55kw	10~55kw	10~55kw
Winder Drive Motor	2.2kw	3.3kw	4.1kw
Temperature Control	6	7	7
The Total Power of the Machine	~28kw	~45kw	~55kw
Shape Size	4.01.33.0m	6.01.83.6m	6.72.54.2m
Weight	~2000kg	~2700kg	~3500kg
