Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > SJ-D Series Double-color Film Blowing Machine

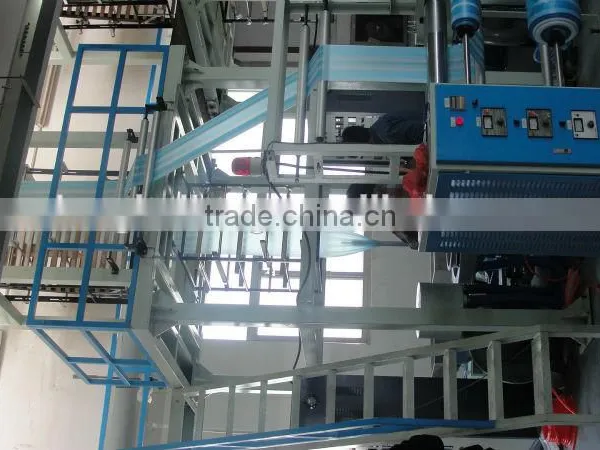

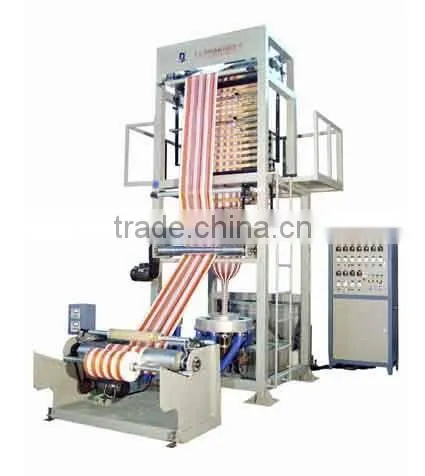

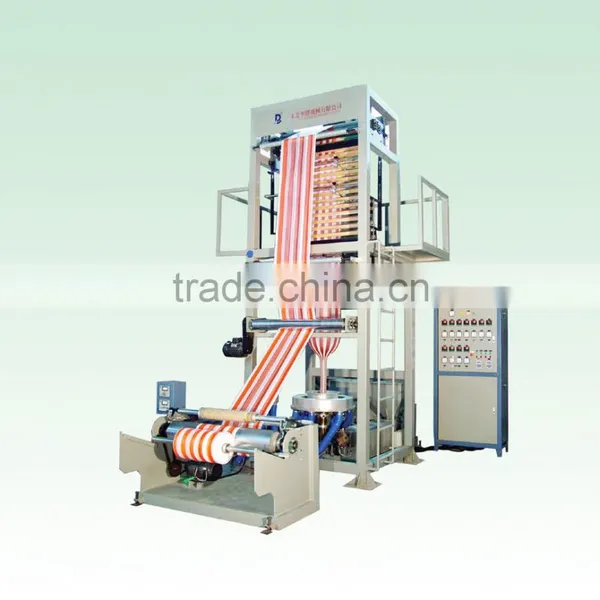

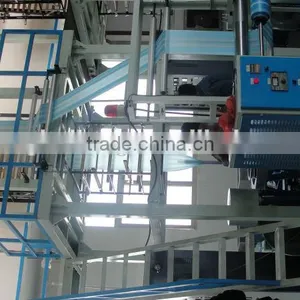

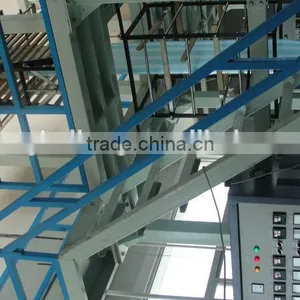

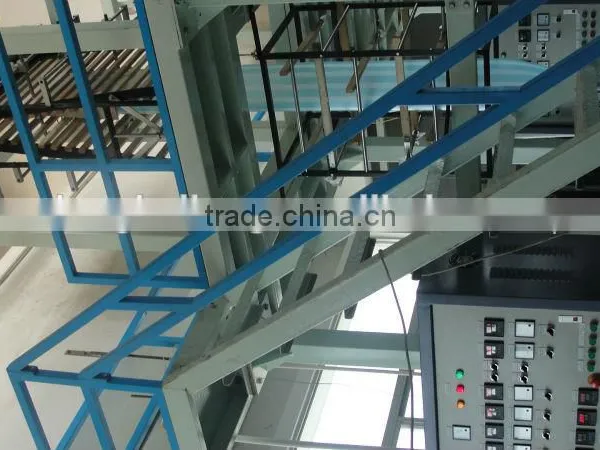

SJ-D Series Double-color Film Blowing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DL-B Series Hot Cutting And Side-sealing Bag Making MachineNegotiableMOQ: 1 Set -
Single-layer/Multi-layer Co-extruded Cast Embossed Film LineNegotiableMOQ: 1 Set
-
SJ-H Series High Speed Film Blowing MachineNegotiableMOQ: 1 Set
-
SJ-Mini-type Film Blowing MachineNegotiableMOQ: 1 Set
-
SJ-P Series Film Blowing MachineNegotiableMOQ: 1 Set
Condition
New
Application
Film
Plastic Processed
PE
Blow Moulding Type
Extrusion Blow Moulding
Place of Origin
Fujian, China
Brand Name
DONGLONG
Model Number
SJ40/40-FMJ850D SJ5050-FMJ1100D
Power(W)
~65kw
Dimension(L*W*H)
5.2x2.5x4.0m
Weight
3800kg
Certification
CE,SGS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

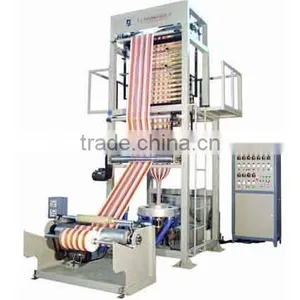

The machine is employed to produce double-color stripe film made of low density polythylene (LDPE)and high dentity polythylene(HDPE),which makes the product diversified.It is mainly used in the application of shopping and garment package.
The products includes vest bag,shopping bag and garment bag etc.
Main technical parameters:
Model |
SJ40/40-FMS850D |
SJ50/50-FMJ1100D |
Max.Folded Film Width |
800mm |
1000mm |
Film Thickness |
0.008~0.15mm |
0.008~0.15mm |
Output |
55kg/h |
80kg/h |
Raw Material |
HDPE,LDPE,LLDPE |
|
Screw Diameter |
2xΦ40mm |
2xΦ50mm |
Screw L/D |
28:1 |
28:1 |
Total Power of The Machine |
~57KW |
~67KW |
Shape Size(L x W x H) |
4.2x2.3x4.0m |
5.2x2.5x4.0m |
Weight |
~3000kg |
~3800kg |
Ps:Correct specifications depend on the real model all specifications are subject to change without prior notice. | ||
