Barwell Preforming JY

Barwell Preforming JY thumbnail-1
Barwell Preforming JY photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sunchemy
Model Number:
JY
Contact Supplier Request Quote Chat Now
Sunchemy International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Sunchemy
Model Number JY

Specifications

Barwell preforming
1.JY150(JY200,JY250)
2.ISO certificate
3.CE certificate
4.Easy to operate

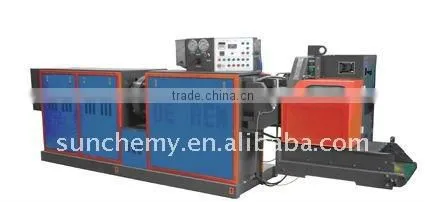

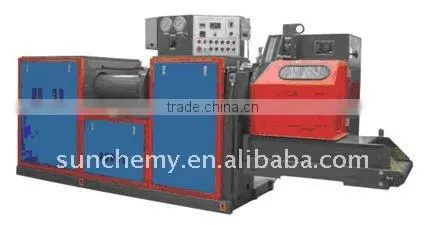

Barwell preforming JY150(JY200,JY250)



Introduction:

Precision Preformer is a kind of high-efficiency and high-precision device for manufacturing rubber blank before curing. It can be used in combination with a wide range of rubber material in extruding rubber blank of mid to high hardness and of intricate shapes such as circle and solid figures. Owing to its high precision volume and low air content, it is capable of producing products ranging from rubber sundries, sealing members, rubber tyre valves, tennis balls and shoe soles,etc. It integrates a variety of different functions such as vacuuming, filtrating, extruding, cutting, weighing, counting, etc.

Barwell preforming JY



Feature of JY Precision Preformer:

1. Quick return on investment(labor & material saving).

2. Suitable to preform all rubber material as vulcanizing required.

3. Special logic hydraulic circuit with patent to insure the weight precision for rubber blanks.



Barwell preforming JY



JY150 Precision Preformer:

Barrel Inside Diameter

(mm)

Total Power

(Kw)

Maximum pressure on

Oil Cylinder (Mpa)

Maximum Temperature

for Barrel (°C)

External Dimensions

(cm)



150

1

36.8

95

80











Weight Limit of

Rubber Blank (g)

Weight Accuracy of

Product (%)

Single Feeding Volume

 (Kg)

Cutter Speed (r/min)

External Dimensions

(cm)

0.3~100

±1.0

8-10

35~300

360*115*164









JY200 Precision Preformer

Barrel Inside Diameter

(mm)

Total Power

(Kw)

Maximum pressure on

Oil Cylinder (Mpa)

Maximum Temperature

for Barrel (°C)

External Dimensions

(cm)



200

15

20.7

95

125











Weight Limit of

Rubber Blank (g)

Weight Accuracy of

Product (%)

Single Feeding Volume

 (Kg)

Cutter Speed (r/min)

External Dimensions

(cm)

0.3~100

±1.0

20-25

35~300

360*115*164









JY250 Precision Preformer

Barrel Inside Diameter

(mm)

Total Power

(Kw)

Maximum pressure on

Oil Cylinder (Mpa)

Maximum Temperature

for Barrel (°C)

External Dimensions

(cm)



250

22(19)

17

95

190











Weight Limit of

Rubber Blank (g)

Weight Accuracy of

Product (%)

Single Feeding Volume

 (Kg)

Cutter Speed (r/min)

External Dimensions

(cm)

0.3~2000

±1.0

60-70

23~300

500*105*164









Barwell preforming JY150(JY200,JY250)
