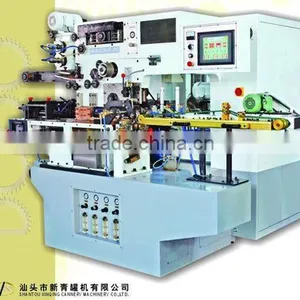

NEW DODO 350 FULLY AUTOMATIC CAN BODY WELDING MACHINE

NEW DODO 350 FULLY AUTOMATIC CAN BODY WELDING MACHINE thumbnail-1
NEW DODO 350 FULLY AUTOMATIC CAN BODY WELDING MACHINE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Other, wooden case
Contact Supplier Request Quote Chat Now
Shantou Xinqing Cannery Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Machinery & Hardware
Packaging Type Other, wooden case
Packaging Material Metal
Automatic Grade Automatic
Driven Type Electric
Voltage 380v
Power 60kw
Place of Origin Guangdong, China
Brand Name NEW DODO
Model Number NEW DODO-350
Weight 3000kg
Dimension(L*W*H) 2980 X 2370 X 2160
Certification CE certificate
After-sales Service Provided Overseas service center available

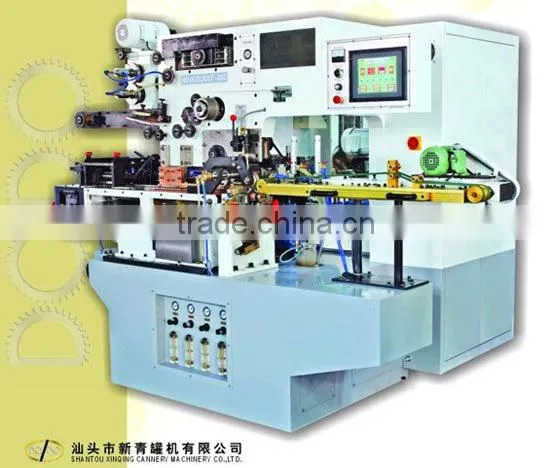

  NEW DODO 350 FULLY AUTOMATIC CAN BODY WELDING MACHINE


Product Description





MODEL:

 NEW DODO-350

DIMENSIONS:

 2980 X 2370 X 2160 MM

NAME:

 FULLY AUTOMATIC CAN BODY WELDER (350CANS/MIN.)



 NEW DODO 350 FULLY AUTOMATIC CAN BODY WELDING MACHINE



Main Feature:
1.Equipped with human-computer-interface and PLC.
2.Adopt digital control technology.
3.Auto.trace for copper string driving speed.
4.New digital inverter for power supply.
5.Full control for erery operation steps.
6.Radio control available.









packing machinery,packing machinery,can machinery









Speciflcations of NEW DODO-350 welder:



 Type

New DODO-350
 Welding Speed

60m/min.(max)
 Output Rate 300-350cans/min.
 Welding point distance

0.5-0.9mm
 Overlap

0.4mm
 Can diameter

202-401
 Canbody height

60-180mm
 Material thickness

0.16-0.30mm
 Tin coating

Tin:5#-100#
 Temper

T2.5-DR8
 Copper wire

1.38mm,1.5mm
 Power supply

three phase, voltage:380V

frequency:50Hz, electric comsumption:60kw

 Welding frequency

200-450Hz
 Cooling water

500kpa,12-18oC, 20L/min.
 Compressed air

550kpa,800L/min.
 Dimensions

2980 X 2370 X 2160mm





Special requirements or specifications upon request.
Machine is manufacture under supervision and by the up-dated technology of our company. Specifications are subject to change without notification.
