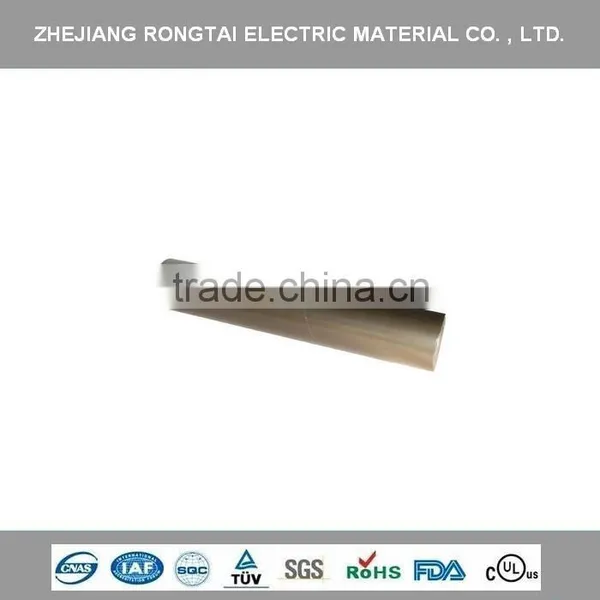

R-5461-P-R1 Phlogopite Mica Roll

R-5461-P-R1 Phlogopite Mica Roll thumbnail-1
R-5461-P-R1 Phlogopite Mica Roll photo-1
US$ 6.5 - 8.5 MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
RONGTAI
Model Number:
R-5461-P-R1
Contact Supplier Request Quote Chat Now
Zhejiang Rongtai Electric Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name RONGTAI
Model Number R-5461-P-R1
Type Insulation Tape
Material Other, Mica
Application High Temperature
Rated Voltage 2KV

Specifications

R-5461-P-R are based on phlogopite mica paper reinforced by glass cloth, harmless ceramic fiber according to customersaa require



OVERVIEW

 Phologpite mica roll is a result of specially pressed mica product which is made of phologpite mica paper and silicon resin. The thickness ranges from 0.2mm to 0.8mm, breakdown voltage is above 15KV, tensile strength is above N/15mm and temperature resistance is above 800°C.

R-5461-P-R are based on phlogopite mica paper reinforced by glass cloth, harmless ceramic fiber according to customers’ requirement.



TYPE

1. R-5461-P-R1 phlogopite mica paper with glass fiber cloth inside, which is easy to cut to service different sizes of furnances.
2.R-5461-P-R2 phlogopite mica paper with glass fiber cloth on double sides.
3.R-5461-P-R3 phlogopite mica paper with glass fiber cloth on one side.
4.R-5461-P-R4 phlogopite mica paper with glass fiber cloth and ceramic fiber paper on each side.



CHARACTERISTIC

Type

Thickness

Mica content

Dielectric Strength

R-5461-P-R1
R-5461-P-R2
R-5461-P-R3
R-5461-P-R4

0.2mm

350g/m2

>2kv

0.3mm

560g/m2

>3kv

0.4mm

690g/m2

>4kv

0.5mm

880g/m2

>5kv

0.6mm

1120g/m2

>6kv

0.7mm

1250g/m2

>7kv

0.8mm

1400g/m2

>8kv





AVAILABLE

1. Roll width: 1000mm
2.Roll Length: 20m 25m 40m 50m

STORAGE

 No limitation under dry and room temperature.

PACKAGE
Please see the following illustration

R-5461-P-R1 Phlogopite Mica Roll




R-5461-P-R1 Phlogopite Mica Roll

R-5461-P-R1 Phlogopite Mica Roll





R-5461-P-R1 Phlogopite Mica Roll

R-5461-P-R1 Phlogopite Mica Roll



R-5461-P-R1 Phlogopite Mica Roll



R-5461-P-R1 Phlogopite Mica Roll
