Specifications

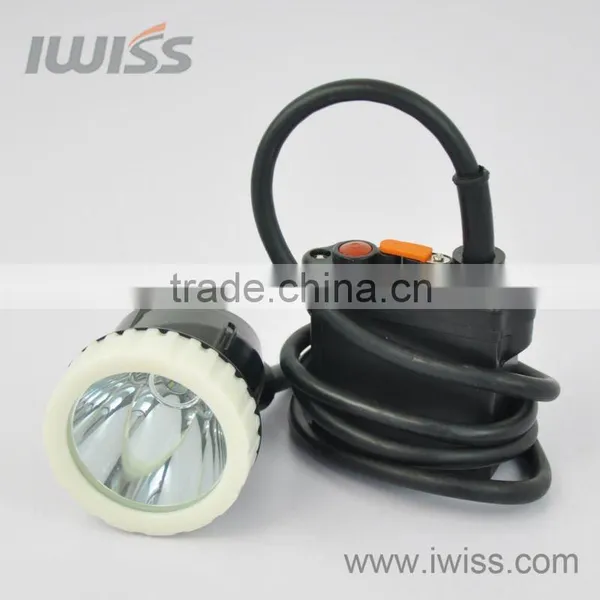

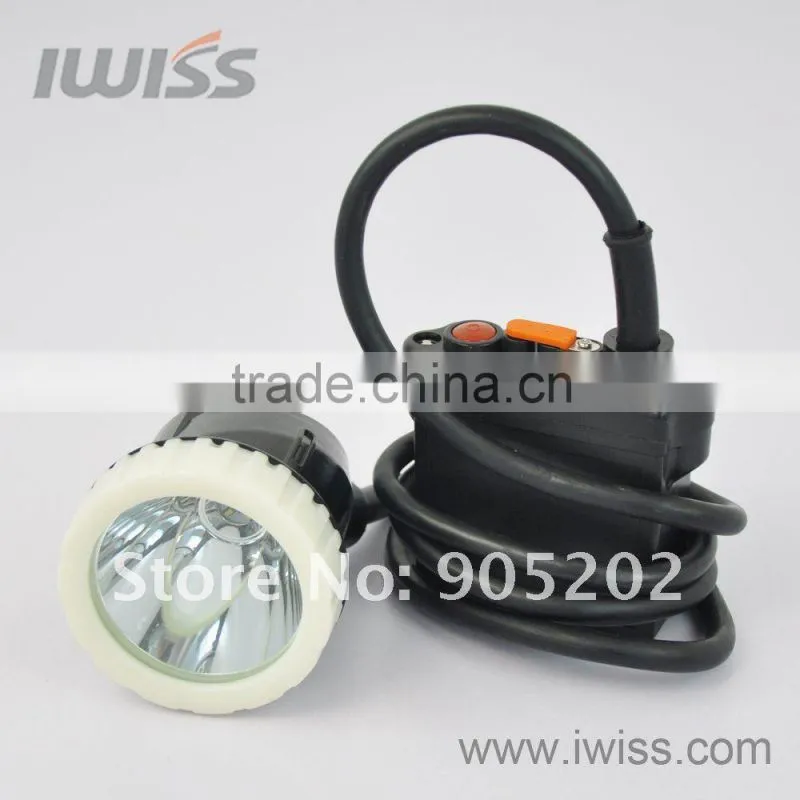

KL7LM-LED Safety Cap Lamp 3W-Cree 30000lx & Li-ion Battery Mining Light with 6.6Ah Rated capacity and 3.7V Rated voltage.KL7LM-LED Safety Cap Lamp
3W-Cree 30000lx & Li-ion Battery
1. Characters:
(1)LED technology, extra long lifetime
(50000hours)
(2)Li-ion battery, compact and light
weight, free of maintenance
(3)Intelligent charging protection
anti-overcharging, current control, short circuit protection and
anti-overheating
(4)Must use our charger special don’t use
other chargers
(5)Water proof, current shock proof,
moisture proof and impact proof
2. Specifications:
|
Items |
Specification |
|
|
Rated capacity |
6.6AH |
|
|
Rated voltage |
3.7V |
|
|
Continuous discharging time |
>6H |
|
|
Main LED |
Rated voltage |
3.7V |
|
Rated current |
1A |
|
|
Lighting begins |
>30000Lux |
|
|
LED lifetime |
>50000h |
|
|
Useful life of the battery (recharges) |
>800Times |
|
|
Class of waterproof |
IP54 |
|
|
Dimensions |
77mm*92mm*40mm |
|
|
Weight |
400g |
|
3. Instructions for use
1) To use cap lamp, you have to let the
waistband to go through the waistband ring on battery box and tie it well. Then
clip the lamp head on the cap, check the cable and turn the switch on.
2) The KL7LM-30000lx is a LED cap lamp with
one lighting source.
4. Troubleshooting
|
Problem |
Reasons |
Solutions |
|
Unstable brightness of the bulb |
Poor contact |
Check the battery and cable |
|
The ampere meter doesn’t have the |
Poor contact; Damaged ampere meter or |
Replace charging unit check the Current |
5. Cautions
(1)It is prohibited to assemble the lamp
head or to replace the lighting source inside the mine.
(2)Since the charger is not equipped with
anti-explosion mechanism, it is prohibited to charge the lamp inside the mine
(3)Only maintenance personal can
disassemble or repair the lamp and the charger.
(4)It is strictly prohibited to throw the
battery into fire or to heat it.
(5)No shortcut the battery or to disassemble
the battery or disassemble the battery.
(6)Dispose used batteries suitably.
