Specifications
Shenzhen GPS GPRS Tracker M61.Working voltage:9V-36V
2.Built-in antenna
3.GPS chip:U-blox

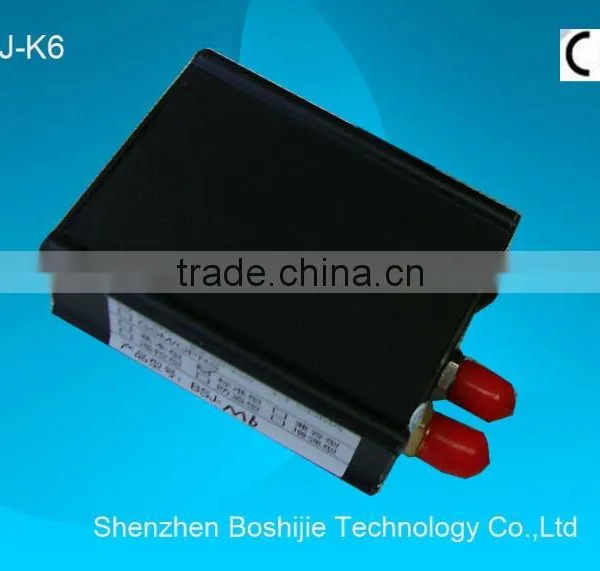

Shenzhen GPS GPRS Tracker M6
1.Working voltage:9V-36V
2.Built-in antenna
3.GPS chip:U-blox
Shenzhen GPS GPRS Tracker M6
1.Working voltage:9V-36V
2.Built-in antenna
3.GPS chip:U-blox
Shenzhen GPS GPRS Tracker M6
Detailed product information:
1. Locating and Tracking.Information, such as speed, location, moving direction and elevation above sea-level of vehicle, can be tracked by monitoring center anytime.
2. Over-speed Alarm.If the speed of vehicle is over the preset speed, GPS terminal will warn the driver and send over-speed alarm to monitoring centre.
3. Emergency Alarm.If the vehicle is hijacked and backfired, the driver can positively give an alarm to monitoring centre
4. Cut-off of Oil and Electricity.Safely cut-off oil and electrical supply of vehicle in long-range.
5. Alarm of Crossing Border.AS the vehicle runs into or out of the specific area, the monitoring center will accept alarm at once.
6. Playback of Track.Make query of historical tracks of vehicle.
7. Communication Monitoring
8. Message Scheduling
9. Oil Measurement
Characteristics of automobile GPS terminal (advantages):
l Small size: Difficult to find and easy to install,
l Low power consumption: Nearly have no infection to the vehicle battery.
l High integrity: Adopt ARM chip with superior processing
l Excellent Stability: Industrial grade of chip, professional anti-interference process, multilevel battery protection and reliable equipment operation
Characteristics of monitoring center:
l Excellent interface and convenient operation,
l Efficient dispatching system and support of more online vehicle,
l Two version of software(C/S and B/S version), especially B/S version of software is very convenient for customer to examine vehicle and check historical track.
l Software interface of monitoring and control centre can be customized according to customers requirement and habit of usage.
Technical Parameters
GSM module |
850/900/1,800/1,900Mhz (optional) or GPRS TCP/UDP |
GPS module |
U-BLOX 5-generation module (other module is considered) |
GPS sensitivity |
160dbm |
GPS frequency |
L1, 1,575.42 MHz |
C/A code |
1.023 MHz chip rate |
Channel |
16-channel checking and tracking |
Position precision |
Less than 15m |
Speed precision |
Less than 0.1m/s |
Time precision |
Global synchronous GPS time |
Cold start |
45s |
Warm start |
38s |
Hot start |
Less than 5s |
Working temperature |
-20 +70 |
Storage temperature |
-40 +85 |
Dimension |
65mm × 45mm × 25 mm |
Working voltage |
9V-36V |
Power |
1W1.5W |
Working current |
0.1A12V; 0.06A24V |

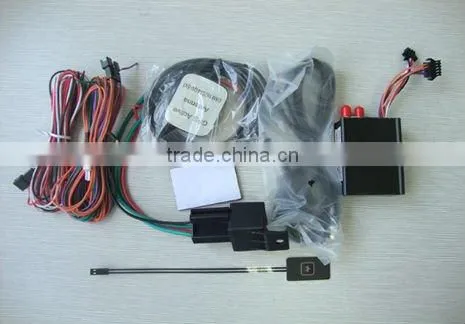

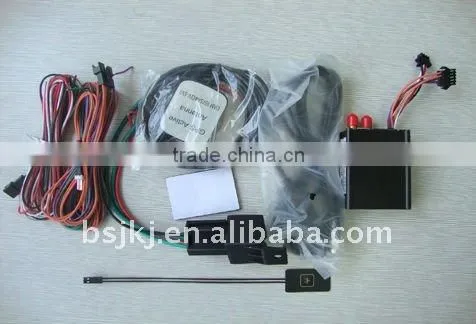

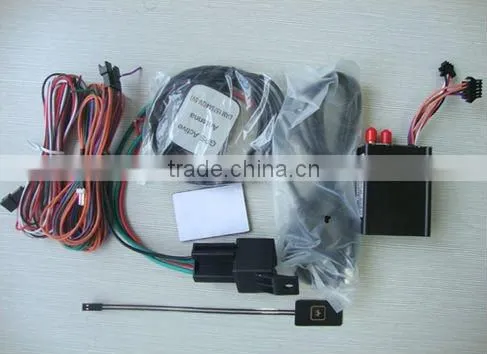

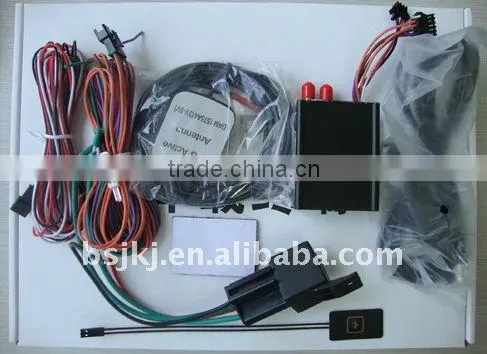

Configuration List
Standard | ||
1. |
Host of vehicle GPS terminal |
1 |
2. |
Owners Manual |
1 |
3. |
Warranty Card |
1 |
4. |
Certificate of Conformity |
1 |
5. |
Power cord |
1 turns |
6. |
GPS antenna |
1 |
7. |
GPRS/CDMA antenna |
1 |
8. |
Installation fittings |
Several |
Certificate:
