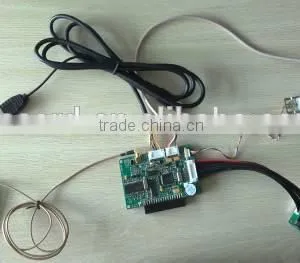

Embedded Smart Card Reader Module Support Magnetic/Contact/Contactless Card

Name: Embedded Smart Card Reader Module Support Magnetic/Contact/Contactless Card
Brand: Decard
SKU: 122658879

US$ 26 - 40 MOQ: 5 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Decard

Model Number:

T10-DC2

Shenzhen Decard Smartcard Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Decard

Model Number T10-DC2

Embedded Smart Card Reader Module Support Magnetic/Contact/Contactless Card

1)Support contact&contact-less card ,mag-stripe card .

2)Available for being embedded into financial IC card,public security card social security card, public card and city all-in-one card applications

3) Use in self-service terminal ATM machine financial terminal ,gold card keyboard ,high-shot instrument ,commercial POS terminal.

Product Description

Specifications

Name	T10 Embedded Module
Central Professor	32bit professor
Indicate Light	4, from turn to right:blue,yellow ,green, red			Match
Buzzer	Support
Peripheral Interface&Communication Mode	Direct outlet	1 USB interface	HID(USB no-driver )
	Direct outlet	1 DB9 interface, 1 USB interface	RS232 Baud rate 115,200 bps
Mag-stripe Card Reader	1/2/3 rail track reading,two-way and single side swipe card			Match
IC Card Reader	1			Match
	Certificated with ISO/IEC 7816
	Support T=0,T=1 CPU card,and AT24 series,4442,4428 storage card
	T=0:9600-38400bps,T=1:9600-115200bps
	Card contacts' life span;20,0000 times
Contact-less Reader	Certificated with ISO/IEC 14443,support TypeA/B, Mifare card,reading distance over 4CM			Match
SAM card slot	4 card slot, certificated with ISO/IEC 7816
Supply	Power supply by serial interface or USB interface,DC5V±5%,with over-voltage
OS	Windows 98,Me,2K,XP,2003,Unix,Linux,WIN7,VISTA
Working Environment	Temperature:-20℃~60℃
	Humidity:5~93 percent(non-condensing)
Storage Environment	Temperature:-30℃~70℃
	Humidity:5~95 percent(non-condensing)
Others	Support function library of universal interface, various of operating systems and language development platform, online upgrading is available, can be customized
Match	Direct outlet 1.5M , 1 USB interface line cable			Optional
	Direct outlet 1.5M , 1 DB9 interface,1 USB interface line cable
