Schenck Balancing Machine for Small Armatures

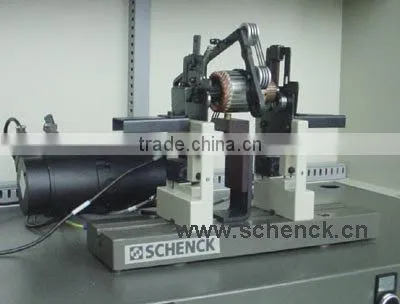

Schenck Balancing Machine for Small Armatures photo-1
Schenck Balancing Machine for Small Armatures photo-2
Schenck Balancing Machine for Small Armatures photo-3
Schenck Balancing Machine for Small Armatures photo-4

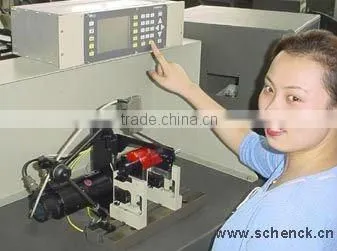

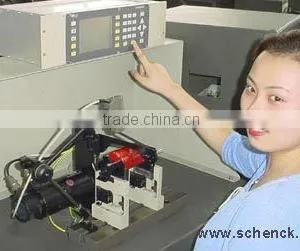

Schenck Balancing Machine for Small Armatures photo-5
US$ 20,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Schenck
Model Number:
AB Smart
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Schenck
Model Number AB Smart
Power Electronic
Usage Vibration Testing Machine

Specifications

1:Balancing Machine for Small Armatures
2:Safe and simple handling
3:Optimal operation height
4:Large weight range

Schenck Balancing Machine for Small ArmaturesBalance Machine, AB Smart

Product Description

Balancing Machinery for Small Armatures

High measuring accuracy and efficiency
Safe and simple handling
Large weight range
Optimal operation height
With advanced measuring unit CAB610

Product Specification
With the brand, reputation of Schenck and competitive price, our ABSmart machine will enable you to improve the quality of your productsand to satisfy your customers.

Product parameters

Technical data at a glance


AB Smart


Rotor weight for symmetrical loads W


3kg (5kg)


Max. distance between bearing centers


310 mm


Min. distance between bearing centers


15 mm


Min. distance between bearing centers with belt drive


36 mm


Rotor swing diameter above the machine base


300 mm


Journal bearing diameter


2-22 mm


Belt driving diameter


20-120 mm


Balancing speed, based upon 50 mm belt driving diameter


960/1440/2280 rpm


Min. achievable residual unbalancer


0.1 gmm/kg


Unbalance reduction ratio (URR)


95%




Schenck Balancing Machine for Small Armatures
