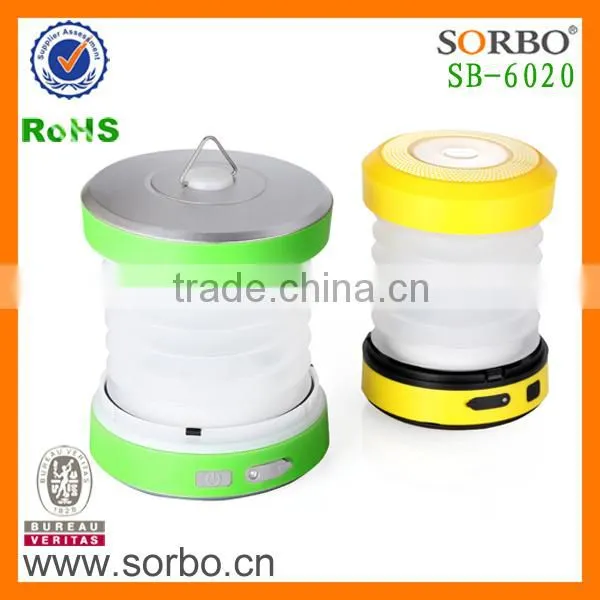

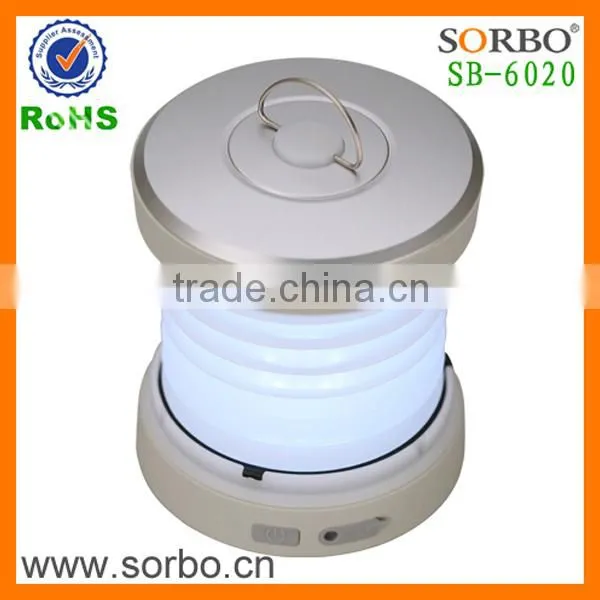

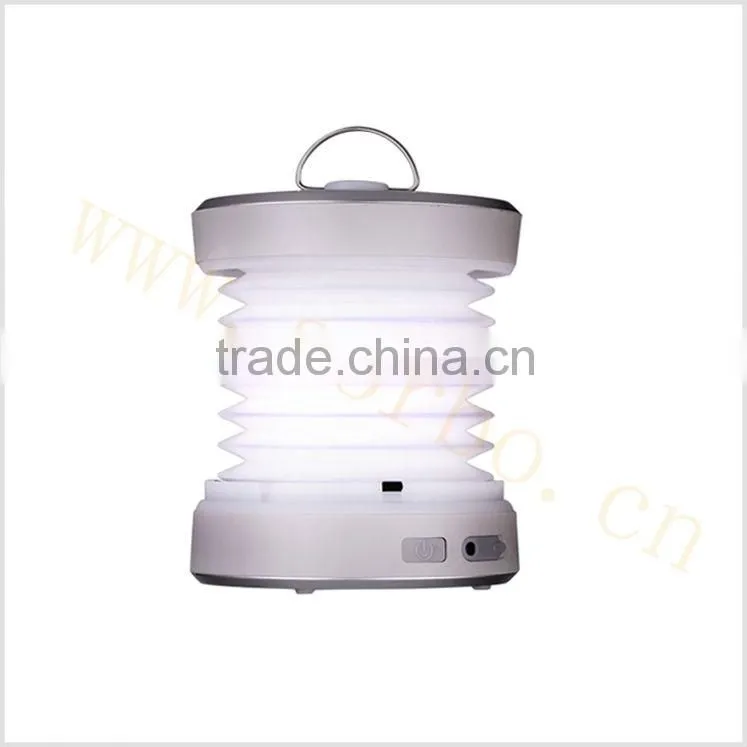

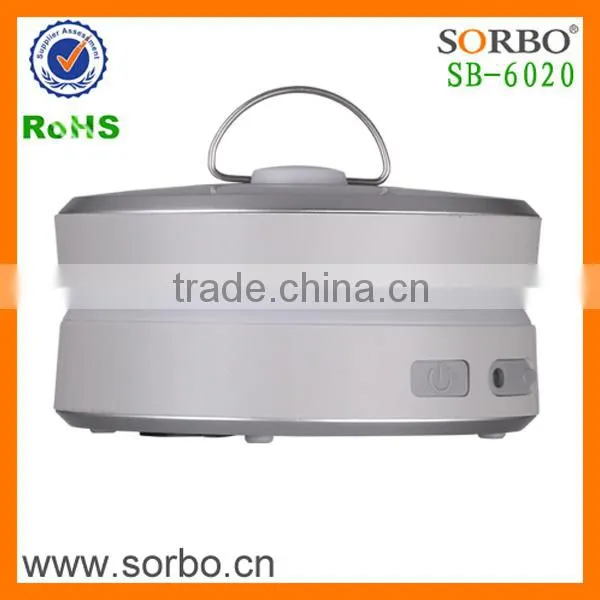

SB-6020 Wholesale Electronic Folding LED Camping Lantern with Hand Crank Cell Phone Charger
1. CE+RoHS+BV+GMC
2. High quality+competive price
3. MOQ is 3000PCS (logo customized)
Fashion rechargeable foldable LED light ,This product adopts the principle of cranking for power by three phase alternator for power generation. The power stored is used to charge the built-in 360 mAh/3.7V polymer lithium battery after commutating and filtering as the power source of the LED light.
Switch models: Low level lighting of 9 LEDs→ high level lighting of 9 LEDs→ off.
1. Cranking for power generation.
2. It comes with a high quality tri-phase brushless generator.
3. Switch models: Low level lighting of 9 LEDs→ high level lighting of 9 LEDs→ off.
4. Charge the product with external power source.
5. Cranking for power to charge smart phone or digital products.
6. Rainproof function: IP43.
7. Hanging handle.
8.Smart protection chip: over-charging protection, over-discharge protection,short circuit protection.

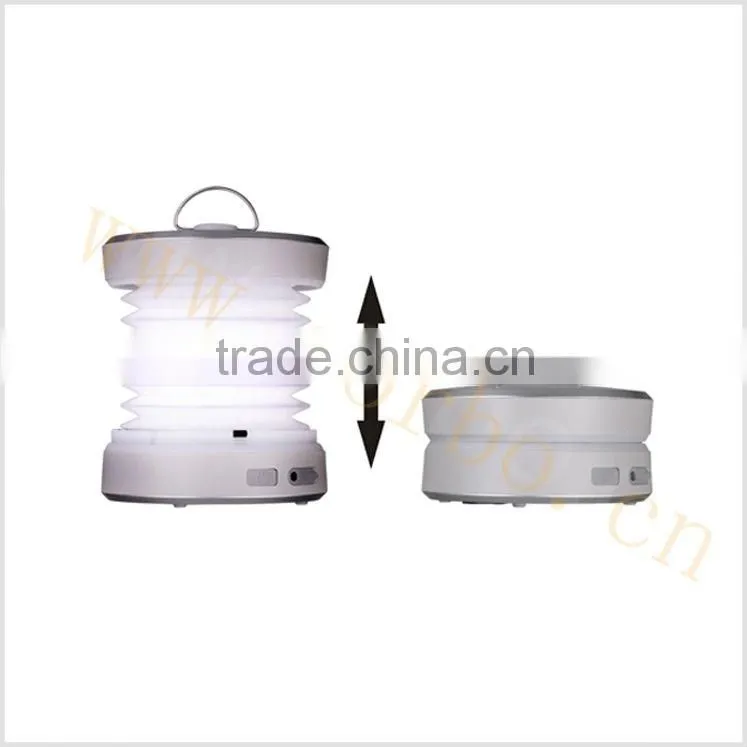

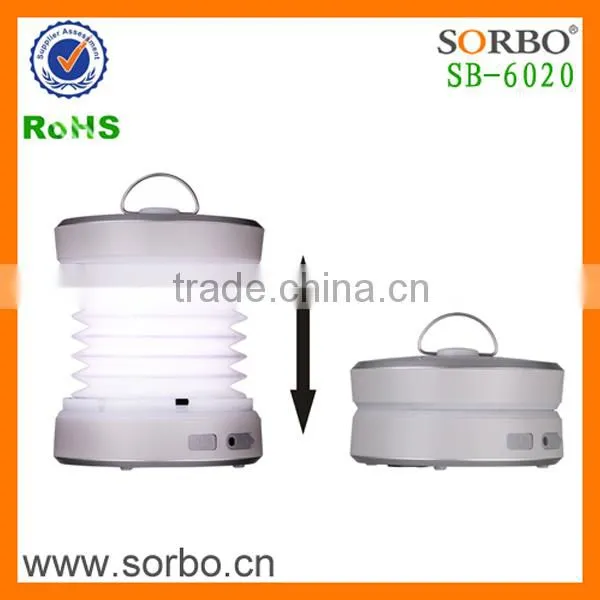

9. Lampshade can be folded up, easy to carry.
10. Can be used as camping lantern.
| Lighting Parameters | |
| The Max. Luminous Flux of high level lighting | 41 Lm |
| The Max. Luminous Flux of low level lighting | 11 Lm |
| High level lighting time after 1 minute cranking | 4 Minutes |
| Low level lighting time after 1 minute cranking | 10 Minutes |
| High level lighting time after being charged fully | 1.5 Hours |
| Low level lighting time after being charged fully | 5.5 Hours |
| Fully charged time by external power source | 5 Hours |
| Note: Lighting time testing standard is brightness down to 5% of open time’s brightness. | |
| Main parts life-span | |
| Switch | ≥10000 Times |
| The whole unit / The plastic part | ≥5 Years |
| Parameters of external power source | |
| Specification of charge connector | DC connector, Φ3.5*Φ1.3MM |
| Input voltage | 5V |
| Others | |
| Specification of built-in battery | 360mAh, 3.7V polymer lithium battery |
| Size & Weight | |
| Size | Φ100mm×60 MM |
| Weight | 223 G |
Operation Method
1. Lighting:
1). Open the DC cover (inlet hole), then spread lampshade and close the DC cover (inlet hole).
2). Press the switch to turn on/off the light.

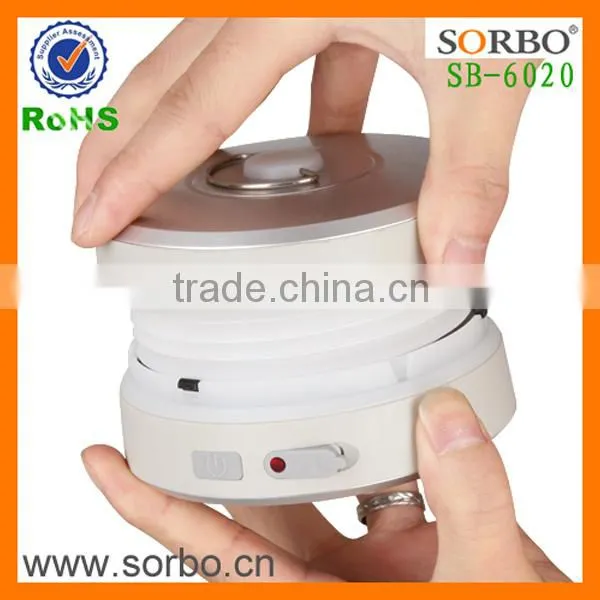

3). Open inlet hole, then fold up lampshade and close inlet hole.
2. Charging operation:

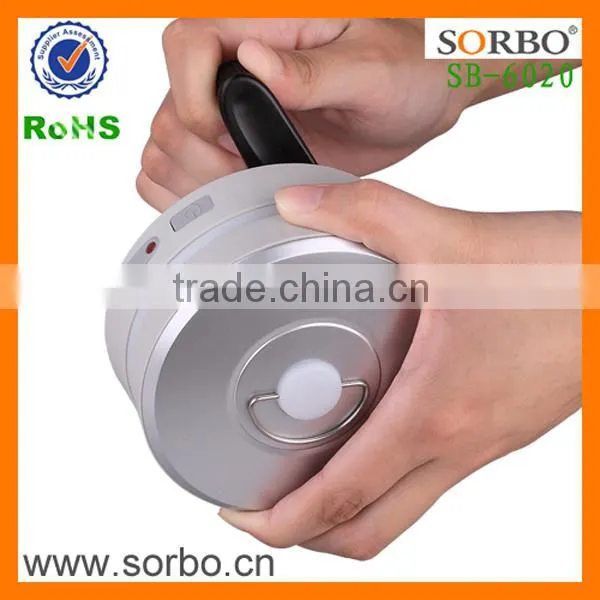

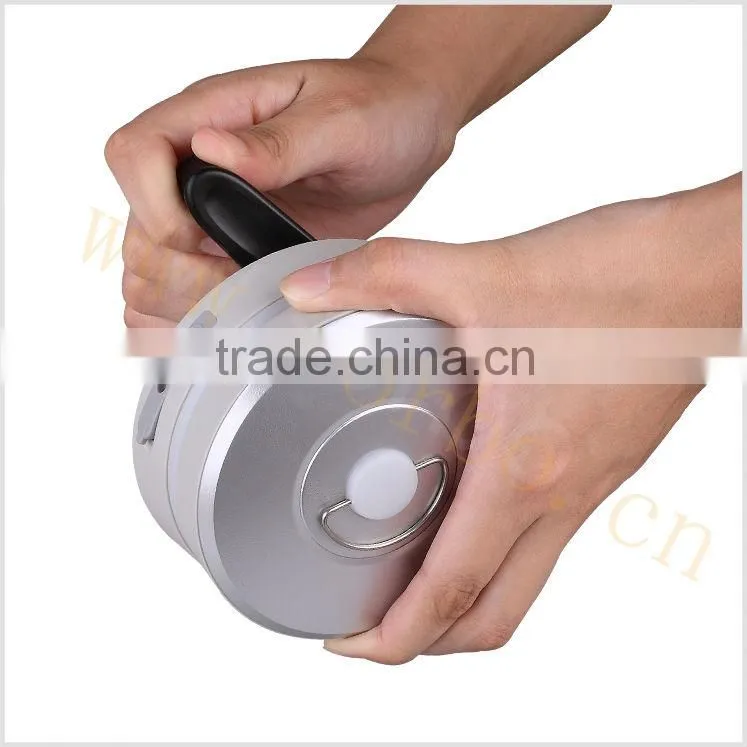

1). Charge its inside battery: hold the unit and crank the handle by the other hand at the speed of 3 circles per second to charge its inside battery.(Charge indicator will glow)
2). Charged by external power source: plug in the 5V adapter into the DC port of the product, the red indicator will glow while charging.
3. Using of hanging handle:
1). Hang this product on the tent's cord, also can hang in the hook, nail etc.
Cautions
1. Don’t point at eyes directly so as not to hurt the eyes.
2. Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting.
Keep rotating steadily.
3. In order to assure the using life of the battery and the mechanical parts, please pay attention to the instructions below:
a) When the light is dim, it means the battery is lack of power badly, please turn off the light or crank it for a while.
b) Cranking it as even as possible (keep rotating steadily, 2.5 or 3 circles per second is best). Too slowly cranking would make current weak and influence the charging effeciency, and too violent cranking possibly damages the driving system.
c) In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.
4. Do not place this product in which temperature or humidity is high. Do not drop or hit this product.
5. Turn off the light when charging in order to enhance the efficiency of charging.
6. Notice the inlet hole design when spread/fold up lampshade.
7. Be careful to use lampshade, don't spread too much.
8. We do not give notice again if the parameter of this product changed.
9. We reserve the final right to interpret this product.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Qaulity Faulty
7. One Year Warranty
