SB-5016-F50 Portable Solar HandCrank Dynamo FM/AM Radio
1. CE+RoHS+BV+GMC
2. High quality+competive price
3. MOQ is 3000PCS (logo customized)

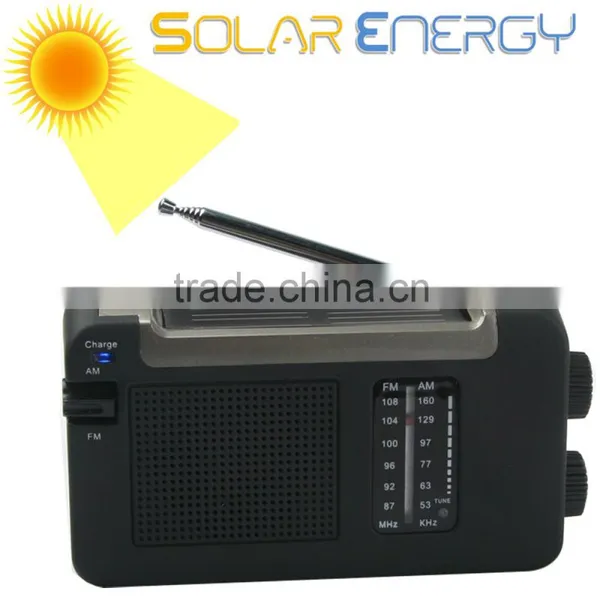

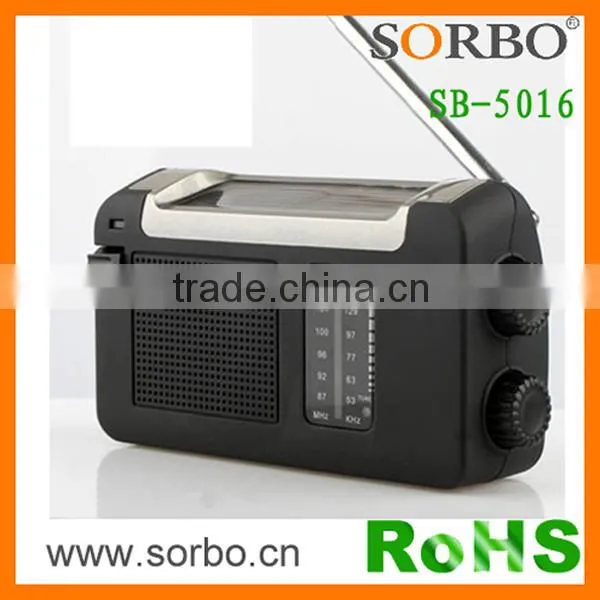

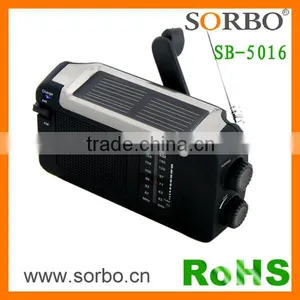

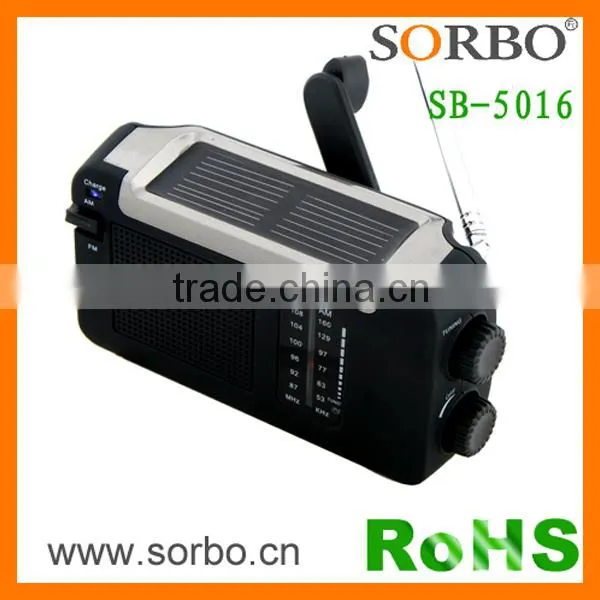

Solar Dynamo Radio with AM/FM ,This product adopts the best integrated radio circuit with high sensitive FM/AM radio that can catch every wonderful electric wave anywhere and anytime. The built-in battery can be charged in three ways: by solar panel, by hand crank and by outside power.
Functions:
- 1. FM/AM tuning radio
- 2. High efficiency charged by direct sunlight
- 3. High efficiency power generation by cranking
- 4. Charged by outside power
Features:
- 1. Cranking for power and powered by solar panel, no external batteries are needed, store energy by built-in rechargeable battery;green, environmental friendly, economy, safety, (the common battery will leak easily), reuse limitlessly
- 2. Low power consumption, you can also listen to the radio under sunlight when battery goes dead
- 3. Extra long cranking handle; Low noise but high efficiency; Low power consumption; Long working time
- 4. It adopts the best integrated radio circuit with high sensitive FM/AM radio that can catch every wonderful electric wave anywhere and anytime
- 5. Extra long antenna enhance the reception ability
- 6. Green LED tuning indicator and blue LED charging indicator
- 7. Speaker or earphone output, the volume is adjustable
- 8. It can be charged by outside power
- 9. Simple outline and delicate appearance
| Item | Parameter | Unit |
| Radio | ||
| Sensitivity of the FM | >10 | Uv |
| Sensitivity of the AM | >1.5 | mV/m |
| Reception scope of the FM | 88-108 | MHz |
| Reception scope of the AM | 530-1650 | KHz |
| The audio frequency output power | >100 | mW |
| Radio working time after 1 minute cranking | About 20 | Minute |
| Radio working time after 5 hours charging under sunlight | About 30 | Minute |
| Max. electricity by solar panel charging | 40 | mA |
| Time to full-charge by solar panel | 20-30 | Hour |
| Radio working time after being charged fully | About 7 | Hour |
| Charged by outside power | ||
| Input voltage | 5 | V |
| Fully charged time | About 8 | Hour |
| Main parts life-span | ||
| Switch | 5000 | Time |
| The whole unit | 5 | Year |
| The plastic part | 5 | Year |
| Others | ||
| Diameter of built-in loudhailer | Φ40 | MM |
| Specification of built-in battery | 300 mAh, 2.4V | |
| Size & Weight | ||
| Size | 130*73*41 | MM |
| Antenna length | 33 | MM |
| Weight | 203 | G |
Operation Method:
- 1. Cranking for power:
Unlock the handle, crank it at the speed of 2.5 to 3 circles per second. The faster you crank, the higher efficiency to charge.( It’s better to crank it for no more than 4 circles per second.)
- 2. Charged by solar power:
Put this unit on the windowsill, balcony and outdoors where sunlight can shine on. Let the sunlight shine on the solar panel vertically. Lighting of charging indicator shows that it is charging.
- 3. Charged by outside power:
Insert the 5V USB power source to charge the internal battery, and about 6~8hours later it will be fully charged.
- 4.Reception of radio:
- A.Operation of the radio switch and volume adjusting: Turn the volume knob anticlockwise to increase the volume. Contrariwise, turn the volume switch clockwise can decrease the volume gradually, a “crack” sound will be heard to show power off.
- B.FM/AM wave band shifting : push the switch down is FM, push it up is AM.
- C. Searching ways: Turn the “tuning knob”, contrapose the “tuning display” to find the station you want to listen to. When the signal is strong enough, the tuning indicator will light, then you can modulate the “tuning knob” slightly till the indicator brighter and make the volume more clear.
- D.Use of antenna:
a). This product adopts telescoping antenna to receive signal for FM. When the signal is weak, you can pull out the antenna or change the direction of the antenna to find the optimal position, thus can improve the effect of radio. Whereas, shrink the antenna when the signal is strong.
b). It adopts built-in magnetic antenna to receive signal for AM. You can change the position of the product properly when the signal is weak.
5. Earphone:
Plug the earphone into the earphone jack, the loudhailer will be off at this time. Be caution the things below when using the earphone:
A. Adjusting the volume to proper position when listen, too loud or listen for a long time will affect your hearing.
B. Avoid listening for a long time when you have fallen asleep.
Before Orders:
- If possible, please tell us what's the purpose for using it, so that we can recommend you the best package. Of course with best price to you!
- Any other request, please feel free to let us know.
- OEM & ODM service is also avaiable
- SAMPLES are avaiable before order.
Customer Service
Shengbo will continue to serve our customers on quality customer service. Our clients are our partners. Shengbo is well-deserved and claimed to be the "Wind Vane" among the filed of Dynamo product in the world.
Quality Management Certificates: ISO 9001:2008
Product Certification: CE, RoHS, FCC
