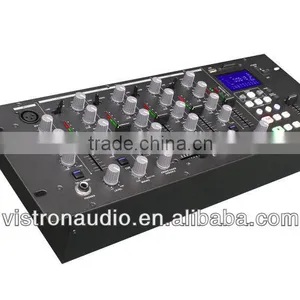

MIX-5USD 4 Channel Professional Digital Audio DJ Mixer
Feature:
USB in/out (USB 1.1 and USB 2.0 compatible)
OPTION: USB input/output recording computer
Headphone Monitor Split.
Cross Fader Curve: Choose from three types of cross fader start-up option.
Talk Over: Mutes -14dB all levels apart from the microphone.
Peak Level Meter: Allows the user to instantly determine the source input condition for each channel to make possible certain operation without loss time.
Trim: Track input level composition is available. This function is compatible with diverse sound sources.
Independent Monitor Switch: Enables independent or simultaneous monitoring of each CH, MIC, MASTER.
Outputs:2 Master(Master 1:XLR,Master 2: RCA),1 Rec: RCA, Booth Output: RCA.
Inputs:2 phono:RCA,4 Line:RCA,1 Mic(Mic 1:XLR).
Specification:
Input terminal (input level/impedance)
CD/LINE: 300mV/22kΩ
PHONO: 5mV/47kΩ
MAIN MIC: 5mV/3kΩ
MIC: 5mV/3kΩ
Frequency characteristics
CD/LINE/PHONO/MIC: 20Hz t0 20kHz
SN ratio
CD/LINE: 86dB (with effects off)
PHONO: 76dB
MIC: 69dB
Total harmonic distortion rate
CD/LINE/PHONO: Below 0.02%
Cross talk: Over 70dB
Channel equalizer
HI: +12dB, -24dB (13 kHz)
MID: +12dB, -24dB (1 kHz)
LOW: +12dB. -24dB (70 Hz)
Microphone equalizer
HI: +12dB, -12dB (10 kHz)
MID: +12dB, -12dB (1 kHz)
LOW: +12dB, -12dB (100Hz)
Power supply voltage: AC 100-240V ~ 60/50Hz
Power consumption: 20W
Operating temperature: +5°C to +35°C
Operating humidity: 5% to 85%
Dimensions: 483 (W) x 178 (D) x80 (H) mm
