Home > Packaging & Printing > Packing Machinery > Laminating Machine > Flatbed Laminator Machine

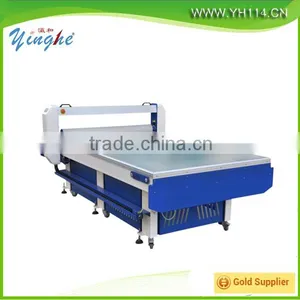

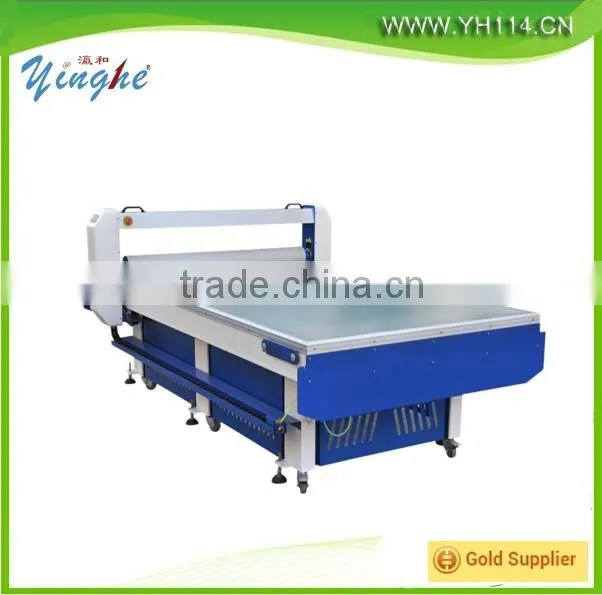

Flatbed Laminator Machine

Name: Flatbed Laminator Machine
Brand: Yinghe
SKU: 122770941

US$ 2,000 - 6,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, hot laminator machine

Automatic Grade:

Automatic

Contact Supplier Request Quote Chat Now

Guangzhou Yinghe Electronic Instruments Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Huangpu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, hot laminator machine

Automatic Grade Automatic

Place of Origin Guangdong, China

Brand Name Yinghe

Model Number YH-1325

Voltage 220V

Power(W) 2500w

Dimension(L*W*H) 3*2.01*1.5m

Weight 800kg

Certification CE Certificate

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Technical Data

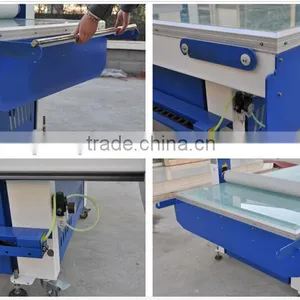

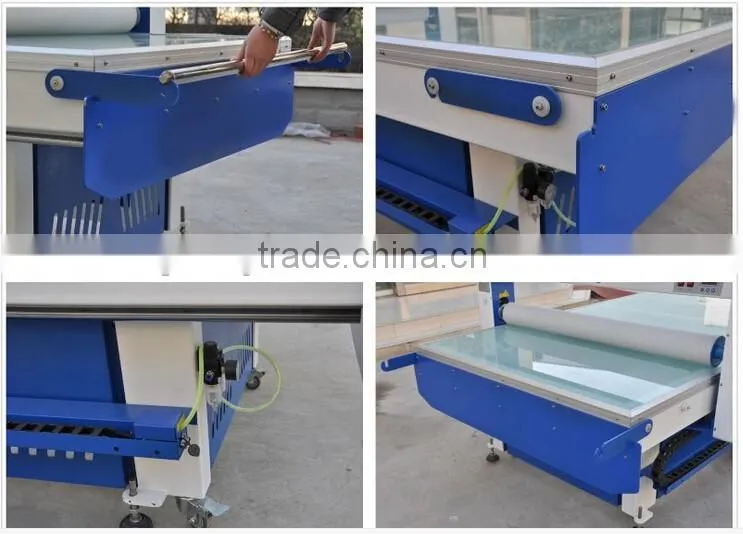

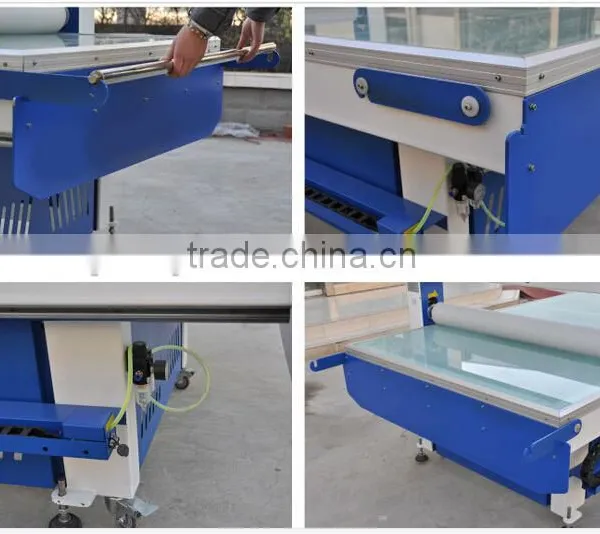

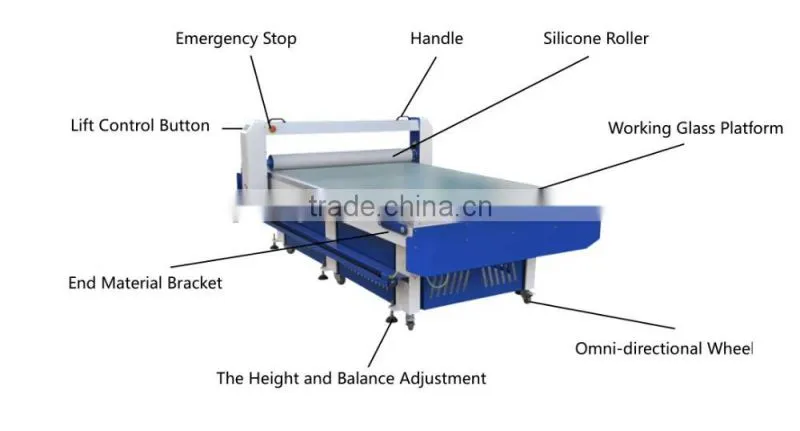

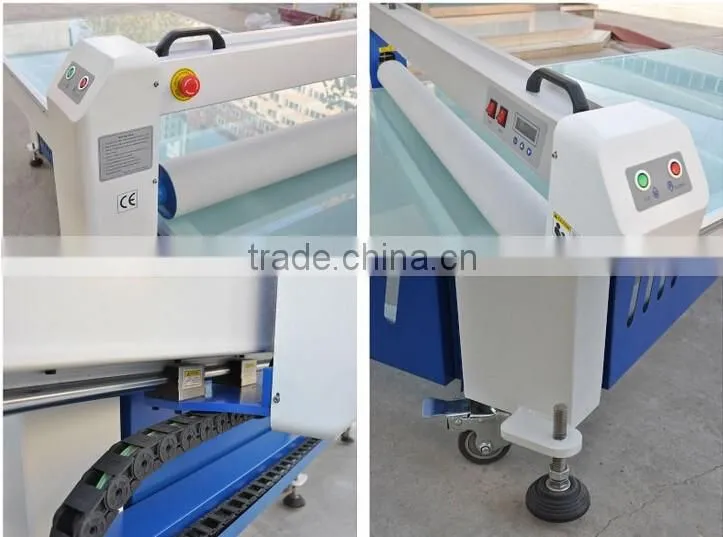

Yinghe flatbed laminator is an innovation idea for traditional advertising industry, digital printing and sign-making industry. 1. As a standard version, the machine consists of a table and a gliding beam with a pneumatically activated roller that is manually moved over the flatbed. 2.The table is illuminated by LED tubes,table glass is 10mm thickness tempering glass,which is very strong. 3. The surface is therefore ideal for larger banners,flexible skins and signs.Max material thickness can up to 50mm.Machine working area is made of aluminum sections. 4. The silica roller can bear very high temperature and very anti-aging. 5.Thanks to its cylindrical guide rails it can be easily moved on the working area.
Parameter
Item			Yinghe Flatbed Laminator
Model			YH1325/YH1530/YH1737/YH1750/YH2040
Diameterofroller			130mm
Material of rollers			Silicon dioxide
			Feature:thermostability,wear-resisting,anti-aging,moisture proof,Good elasticity,pollution-free,NoDistortion

Thickness of Silicon gel			6mm
Thickness of axial wall			8mm
Max.effective working size			13002500/15003000/17003700/17005000/2000*4000mm
Glass			10mm temper glass
Illumination			LED illumination
Guideways			25mm cylinder guideways,very steady for long time use
Machine frame			Steel high temperature weld table,steel strong legs and Aro-aluminium profile around the table and bridge
Machine body			Dismountable can highly low down the shipping cost
Material roll holder			Infront and at behind durable material reels support
Max.filming thickness			50mm
Rollerheating			Internal heating by infrared
Temperature range			Adjustable,environmental-120℃
Warm up time			10-15min
Power consumption			2500w
Laminating mode			Manual

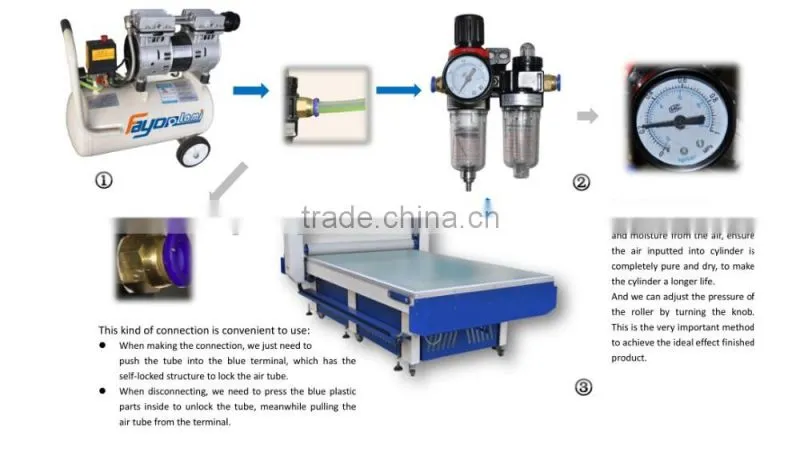

Pressure adjustable mode			Pneumatic/non-noise air compressor
Input Frequency			50-60hz
Rated input voltage			110v/220v
Net weight of machine			800kg
Delivery Time			15 days after receive the payment
Payment Term			100%T/T in advance
Package Material			Plywood case with steels around for protection
Warranty			Broken parts changed for free within one year
After sale service			12 hours online service each day,free technical support
1500*3000mmm flatbed laminator Packing size: L3.6mxW2.2mxH1.65m=13.068cbm Gross weight: 1040kg
1325 laminator packing size : 32.011.5m=9.045CBM

F A Q:

1.Q: what is the minimum order ?

A: one set.

2.Q: Shall I get sample to test the quality and market before ordering ?

A: Sure ,printer Sample order to test the quality and market is welcomed ,but sample fee need to be paid by your side.
But we can provide you free printing sample like Vinyl, flex banner

3.Q:What kind of shipping method available ?

A:DHL/Air cargo/China post are available.

4.Q:If goods be broken during shipping ,what should I do ?

A: Please offer us pictures ,We will check it and solve it .

5.Q: If I buy the goods and don't know how to use it ,what should I do ?

A: We offer free training and online technical support. Please feel free to contact us ,we have professional engineer to
teach you how to use it.
6. Q: what is the payment term?

A: 30% in advance to produce. 70% payment after you check the goods.

7. Q: should I believe in your company Since I didn't know you?

A: We are a big company which has many branches in other city and yield a best reputation from the oversea.
