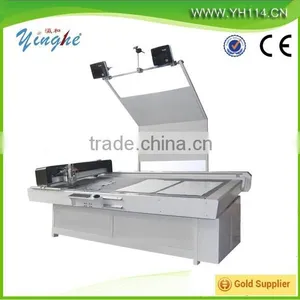

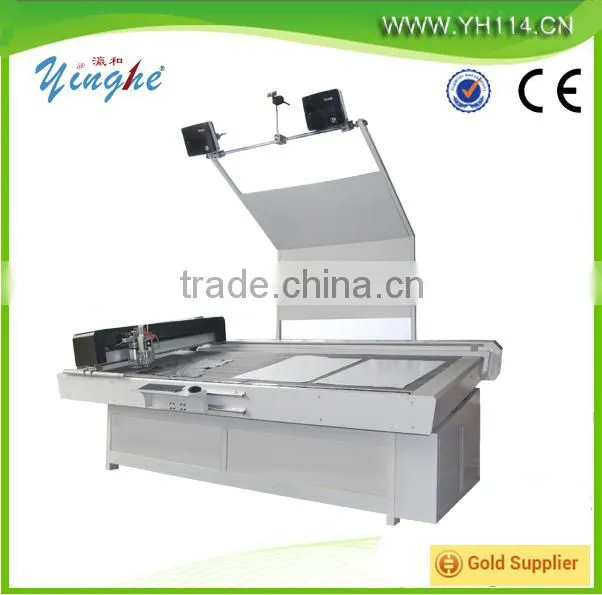

Leather Cutting Machine
US$ 15,000 - 20,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Other, blade
Applicable Material:
Acrylic, Leather, MDF, Rubber
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Model 1325 Large Format Laser Engraver and Cutting Machine Quality ChoiceUS$ 6,000 - 8,000MOQ: 1 Piece -
Mini Fast Feed 40W Stamp Laser Engraving MachineUS$ 600 - 800MOQ: 1 Piece
-
YH-3040c Mini 40W Laser Engraver MachineUS$ 1,000 - 2,000MOQ: 1 Piece
-
YH-4060S Mini 50W Easy Use New Style Laser Engraver MachineUS$ 1,500 - 2,000MOQ: 1 Piece
-
Hot Sale Easy Operate Laser Engrave Cutting MachineNegotiableMOQ: 1 Piece
Condition
New
Laser Type
Other, blade
Applicable Material
Acrylic, Leather, MDF, Rubber
Cutting Thickness
0.5-6.0mm
Cutting Area
3200*2000mm
Cutting Speed
800mm/s-1200mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
laser software
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin
Guangdong, China
Brand Name
Yinghe
Model Number
YHN-3220-P
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
| Model | YHN-3220-P | YHN-3216-P | YHN-3212-P | YHN-2510-P | YHN-1510-P | |
| Cutting area | 3200*2000mm | 3200*1600mm | 3200*1200mm | 2500*1000mm | 1500*1000mm | |
| Cutting Speed | 800mm/s-1200mm/s | |||||
| Cutting Thickness | 0.5-6.0mm | |||||
| Applicable Material | Genuine leather,artificial leather.cardboard,plastic board,Gray cardboard,complex material,gasket,white board | |||||
| Available Material | Rotating knife,vibrating knife,punch,pressing pin | |||||
| Driving Motor | Serove Motor | |||||
| Optional Pen Types/Settings | Water-based pen,oil-based pen,ball-point pen,silver pen/8 goups of pen and knife arrangement | |||||
| Material Fixed Method | Vacuum Suction | |||||
| Software Resolution | 0.07mm,0.025mm,0.01mm,0.1mm(optional) | |||||
| Transmission Interface | Ethernet port | |||||
| Buffer Size | One time rapid transmission,form feed cutting | |||||
| Command System | Coompatible format of HP-GL,GP-GL and IPP-G1 | |||||
| Control panel | LED display | |||||
| Transmission materials | Straight-line guide rails and imported synchronous belts | |||||
| Vibration blade | Vibration cutter head motor at 20000rpm | |||||
| Supply voltage | AC220V 380V±10%,50HZ | |||||
| Functions and special features | ||||||
| 1.Imported Swiss high speed servo motor,up to 20000rpm,to achieve high speed and perfect cutting ability. | ||||||
| 2.High resolution short focus top projector,1.1 Graphic output,make the workflow more easy and clear.The more clear and intuitive workflow. | ||||||
| 3.Independ suspension design for projector stand to avoid vibration,it enable projector more stable and clear. | ||||||
| 4.Personalized interactive function,to make better layout,cutting,rewinding at the same time,maximize efficiency of equipment. | ||||||
| 5.Highly intergrated muti-function head can work simulaneously cutting,punching,drawing and marking processes. | ||||||
| 6.All data cable are Germany imported,to make stability data transmission. | ||||||
| 7.Ethernet port is used to avoid data loss,noise and electrostatic effects to ensure stable data transmission. | ||||||
| 8.Automation layout system was developed by our in-house professional team,to meet the industry demand:auto layout for PU and genuine leather cutting,increase efficiency,reduce wastage.The team make immediate response to future upgrade and demand from customers. | ||||||
| 9.Support international common use format like :DXF,HPGL,to avoid compatibility problem to workflow more easy. | ||||||
