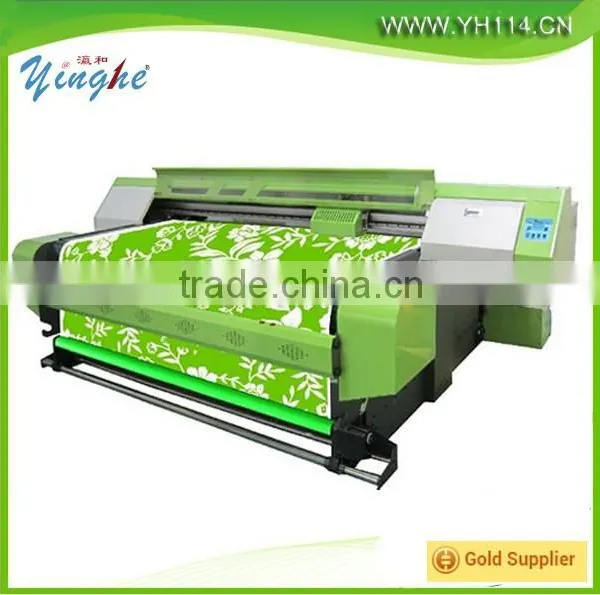

high quality direct digital textile belt printer/ directly textile printer
Parameter
Item Model |
YH- 1902T |
||
Print Head |
GEN5/DX5/DX7/Konica |
||
Print Width |
1.9M |
||
Number of Print-heads |
2 |
||
Printing Speed |
2pass |
76m2/H |
|
4pass |
38m2/H |
||
6pass |
25m2/H |
||
Ink |
Sort |
acid,reactive,disperse dyes,pigment |
|
Capacity |
4 Colors |
||
Media |
Width |
1900mm |
|
Sort |
cotton,polyester,TC,non,woven,fabric,etc. |
||
Control station |
Windows7 @LAURA |
||
Power Supply |
50hz/60hz 110/220V 10A |
||
Precision |
7-35PL |
||
Image |
BIP,TIFF,JPG,EPS,PDF |
||
RIP Software |
PHPTOPRINT,MAINTOP |
||
Operation Environments |
Temperature:18°C-28°C,Humidity:35%RH-65%RH |
||
Machine Size(L*W*H) |
2.89*1.9*1.33M |
||
Packaging Size(L*W*H) |
3.19*2.17*1.43M |
||
Gross Weight |
850KGS |
||

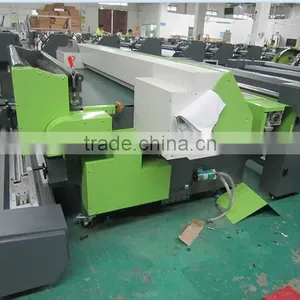

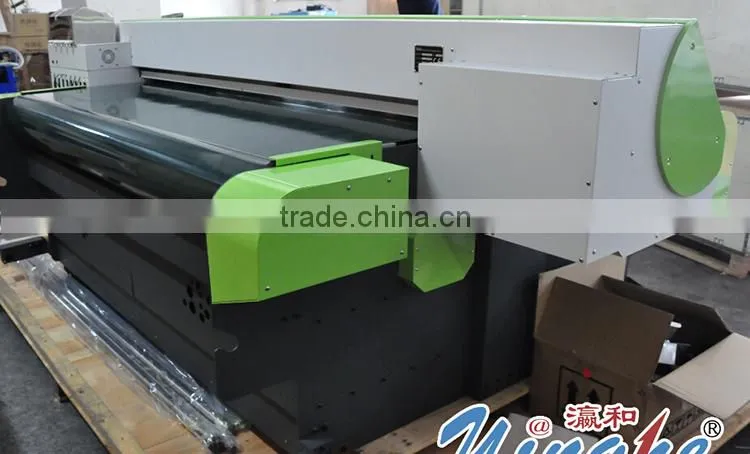

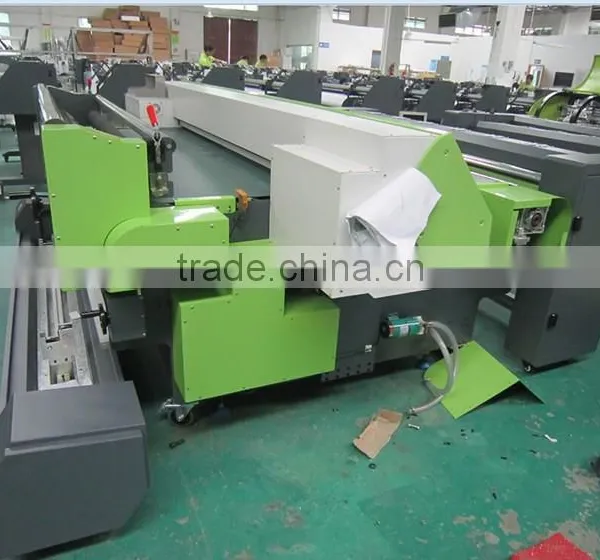

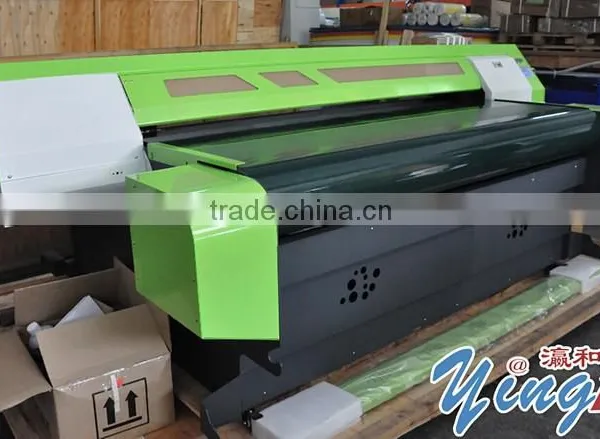

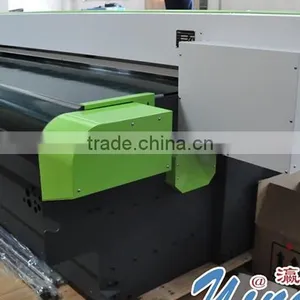

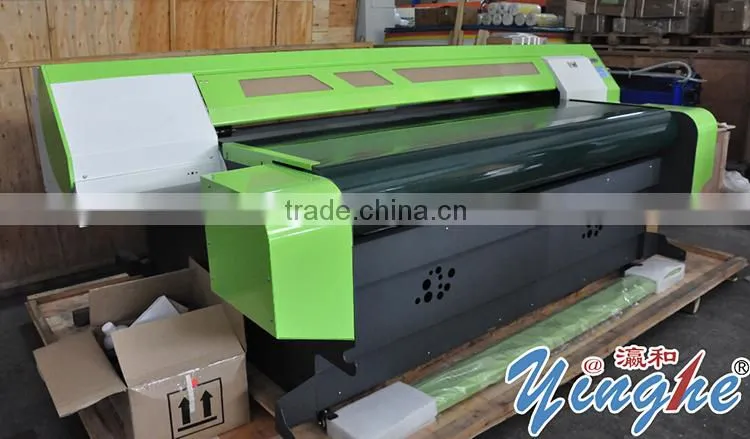

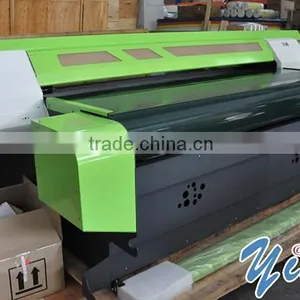

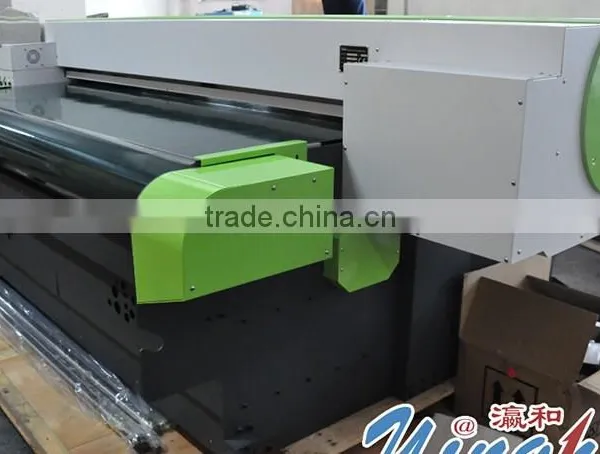

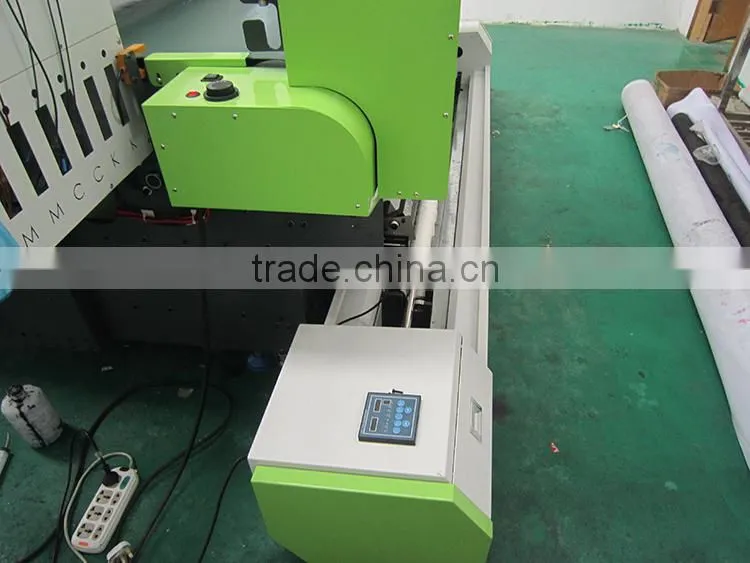

Machine images

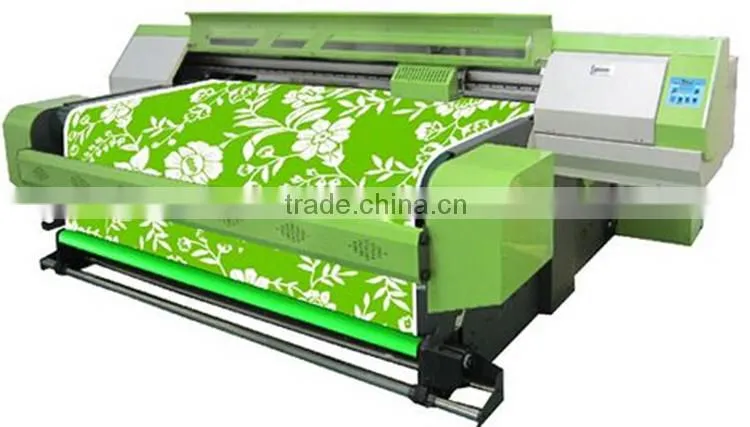

Sample show
Advantages
1.Printing part:
* DX7 heads, or DX5 or gen5 heads optional.
*Printhead height adjustable from 2mm to 30mm. For cotton printing, 2mm-3mm; For wool printing,3mm-5mm
*Sublimation ink, reactive ink, pigment ink etc can be used by this printer.
*After printing, a drying system helps to dry the wet ink.

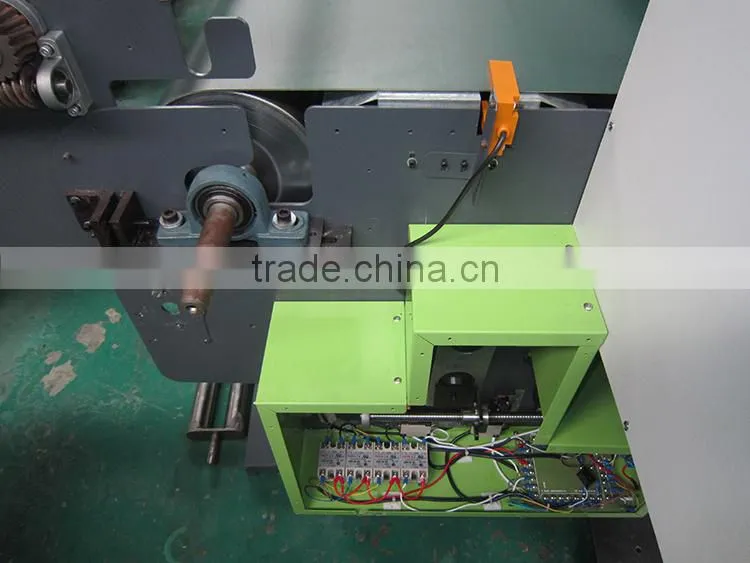

2.Parts:
*Panasonic server motor and variator
*Japanese bearing and bearing seat;
*Cartridge AC Server motor for high speed;
*THK rail guide.
*304# stainless steel shafts and screws.
*Machine body structure thickness: 10mm ~12mm.

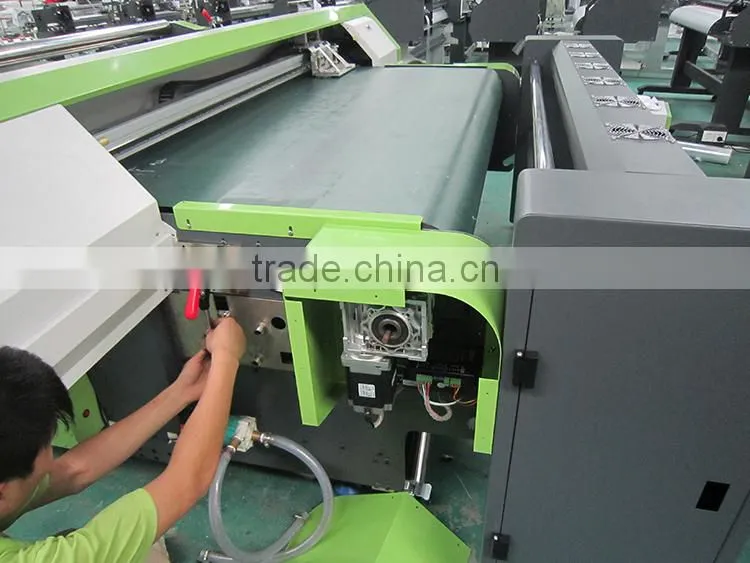

3.Belt conveyor:
*German“SIEGLIN” Conveyor belt specially for digital textile printing , it can work over 10 years.
*Belt system automatically adjusted by Siemens PLC sensor and motor.
*Glue: oil based, prevents fabric dislocation or movement, elastic fabric can be printed as well.
*Front and back Belt shafts diameter to 200mm.
*Bracket props up the belt and makes it smooth.
4.Belt auto self-clean system:
*2pcs sponge shafts instead of brush to protect the belt better and prolong the glue lifespan.
*Water-cycled pipe to keep the water tank and sponge clean.
*The washing system height is adjustable.
*After washing, the PID controlled drying system can dry the belt effectively.

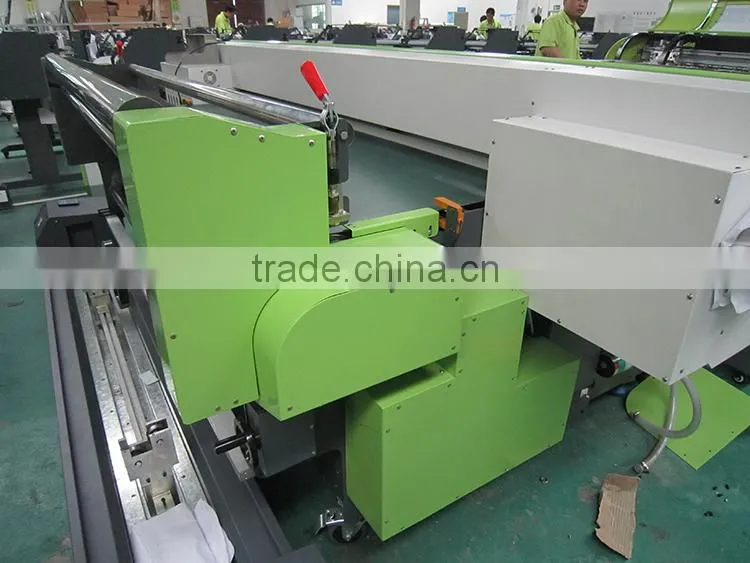

5.Feeding and taking up system:
*Auto feeding shaft for fabric roll feeding; special tension bar attached for fabric sheet feeding.
*Silicone cylinder with pneumatic pressure control for fixing the fabric on the blanket.
*Taking up system: taking up convey strength and speed is controllable, according to different fabric adhesive feature.
Refilled ink supply:
Continuous ink supply system, cost saving and easy maintenance.
