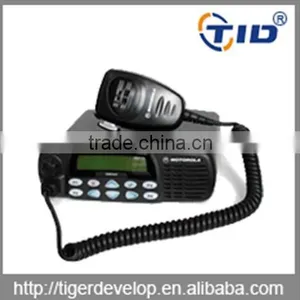

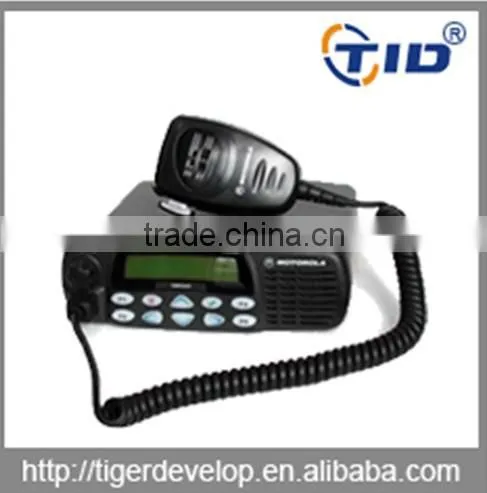

GM360 High Power Car Radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360

GM360 High Power Car Radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360 thumbnail-1
GM360 High Power Car Radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360 photo-1
US$ 200 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
GM360
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Fujian/Dubai/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number GM360
Type Vehicle Mouted
Dimensions 186mm*179mm*59mm/255mm*185mm*72m
Frequency Range VHF/UHF
Storage Channel 128
Talk Range 60km

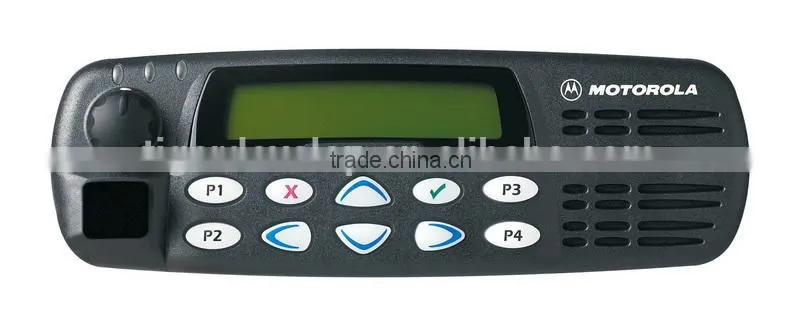

GM360 high power car radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360



GM360 high power car radio UHF VHF Moblie Long Talking Range Transceiver Two Way Radio GM360


Specification:


GENERAL SPECIFICATION

Low Band (GM360only)

VHF

UHF

*Frequency Range

29.7-36MHz

36-42MHz

42-50MHz

          136-174MHz

403-470MHz

450-527MHz (1-25W)

450-520MHz (25-40W)

Frequency Stability (-30 C to 60 C,25c Ref,)

5ppm

± 2.5pm

± 2ppm

Channel Capacity

128 Channels

Power Output

40 - 60 W

1 - 25W

25 - 45W

1 - 25W

25 - 40W

Power Supply

13.2Vdc (10.8 - 15.6 Vdc) Negative Vehicle ground

Channel Spacing

12.5/20/30kHz

12.5/20/25 kHz

Dimensions (L x W x H)

(add 9mm for volume knob)

255mm x 185mm x 72mm          186mm x 179mm x 59mm

Weight

2040g (4.5lbs)

1400g (3.15 lbs)

Operating Temperature

-30°C to +60°C

Sealing

Passes rain testing to IP54

Shock and Vibration

Meets MIL-STD 810-c,D&E and TIA/EIA 603

Dust

Meets MIL-STD 810-C,D&E and TIA/EIA 603

Humidity

Meets MIL-STD 810-C,D&E and TIA/EIA 603






Transmitter

Low Band

VHF                UHF

Modulation Limiting

± 12.5 @ 12.5kHz

± 5.0 @ 20/30kHz

± 2.5kHz @12.5kHz

± 4.0kHz @20kHz

± 5.0kHz @25kHz

FM Hum & Noise

-40dB @ 12.5kHz

- 45dB @ 20/30kHz

- 40dB @ 12.5kHz

- 45dB @ 20/25kHz

Conducted/Radiated Emissions

- 26dB < 1 GHz

- 36dBm < 1 GHz

- 30dBm < 1 GHz

Adjacent Channel Power

-60dB < 12.5kHz

- 70dB < 20/30kHz

- 60dBm @ 12.5kHz

- 70dBm @ 20/25kHz

Audio Response (300 to 3000Hz)

Audio Distortion @ 1000Hz, 1000Hz,

60% Rated Max. Deviation

+ 1, - 3dB



3%
