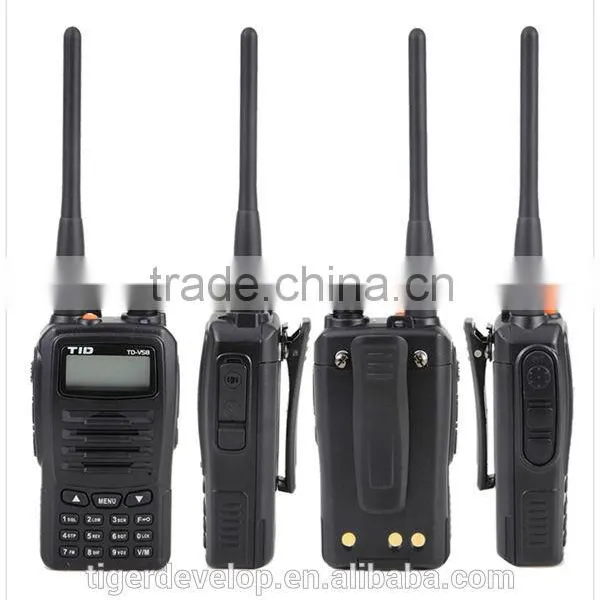

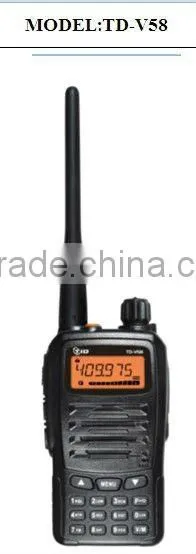

UHF TD-V58 Quality Gurantee Amature Ham Radio 2 Way Radios

UHF TD-V58 Quality Gurantee Amature Ham Radio 2 Way Radios thumbnail-1
UHF TD-V58 Quality Gurantee Amature Ham Radio 2 Way Radios photo-1
US$ 30 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TID
Model Number:
TD-V58
Contact Supplier Request Quote Chat Now
Guangzhou Tiger Electron Science & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Xiamen Dubai Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name TID
Model Number TD-V58
Type Handheld
Dimensions 98.3*57*28mm
Frequency Range 136-174MHz 400-470MHz
Storage Channel 128
Talk Range 5KM





     UHF TD-V58 quality gurantee amature ham radio 2 way radios



UHF TD-V58 quality gurantee amature ham radio 2 way radios

  • DTMF Encode&Decode
  • Voice Compander/Scramber
  • Wide/Narrow Band Selectable

UHF TD-V58 quality gurantee amature ham radio 2 way radios









TD-V58 walkie talkie Main function:



  • 128 Channels, 1200mAh Li-ion battery
  • DTMF Encode&Decode
  • Voice Compander/Scramber
  • Wide/Narrow Band Selectable
  • PTT ID
  • Buit-in FM radio Feature
  • Time-out Timer (TOT)
  • 1750HZ tone
  • 51CTCSS/214DCS
  • High/Low Power Switchable
  • Auto Power-saving
  • Channel Spacing Selectable
  • Busy Channel Lockout (BCLO)



1). Specification of UHF TD-V58 quality gurantee amature ham radio 2 way radios ( TD-V58)





1). Frequency Range

VHF:136-174Mhz ,UHF:400-470MHz ,450-520MHz
2). Channel Capacity 128
3). Channel Spacing 12.5 / 25.0KHz
4). Operation Voltage DC7.4V Li-ion
5). Battery Capacity 1200mAh(Li-ion)
6). Battery life(5-5-90 Duty cycle) about 10 hours
7).Frequency stability ±2.5ppm
8).Operating Temperature -20~+60 °c
9). Antenna Impedance 50 Ω
10). Dimension(H*W*D)(Without Antenna) 98.3*57.7*28mm
11). Weight(With Antenna & Battery) 220g



2).Accessories

1).Battery Pack 1 set
2.Antenna 1 set
3).Charger 1 set
4).AC Adapter 1 set
5).Belt Clip 1 set
6).Hand strap 1 set



UHF TD-V58 quality gurantee amature ham radio 2 way radios



3).Transmitter



1). RF power output UHF:4.0W/1.0W ,VHF:5.0W/1.0W
2). Modulation tpe F3E
3). Spurious and harmonics -36dBm<1GHz ,-30dBm>1GHz
4). FM Noise 40 /45dB
5). Audio Distortion ≤5%
6). Modulation Respose 1 to-3dB



4).Receiver



1). RF sensitivity ≤0.30 /0.20μV
2). Adjacent channel selectivity 60 / 65dB
3). Intermodulation 65dB
4). Spurious response rejection 70dB
5. S/N 40/45dB
6). Audio power output 500mW
7). Audio distortion ≤5%







5).Payment Terms

1. 100% T/T Advance

2. 100% Western Union Advance

3. 100%  Pay pal Advance



6).Shipping Terms

1. EX-works Guangzhou

2. EX-works Hongkong

3. EX-works Xiamen

4. EX-works Dubai



7).Shipping Method



The delivery can by air/Sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS…



8).Lead time:



Most of our product have ready stock, sample order is ready any time, and bulk order depend on how many pcs you want.





9).Packaging :



Unique packaging with durable ,environmental , beauty design character (plastic bag +color gift box).





UHF TD-V58 quality gurantee amature ham radio 2 way radios



UHF TD-V58 quality gurantee amature ham radio 2 way radiosUHF TD-V58 quality gurantee amature ham radio 2 way radios



UHF TD-V58 quality gurantee amature ham radio 2 way radios

UHF TD-V58 quality gurantee amature ham radio 2 way radiosUHF TD-V58 quality gurantee amature ham radio 2 way radios

UHF TD-V58 quality gurantee amature ham radio 2 way radios









Company Information

  We are manufacturer of two way radio with 13 years experience. We are concerned with the design, development and production of telecommunication equipment. We have branches in Fujian, Guangzhou and Dubai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our customers have cover more than 100 countries in the world.





Our Services

  Trail order is acceptable, all the products are best quality with 18 months warranty. We promise small quantity can be ship out once receive payment, big quantity can be shipping out within 1 week after receive payment. We can support OEM/ODM.
