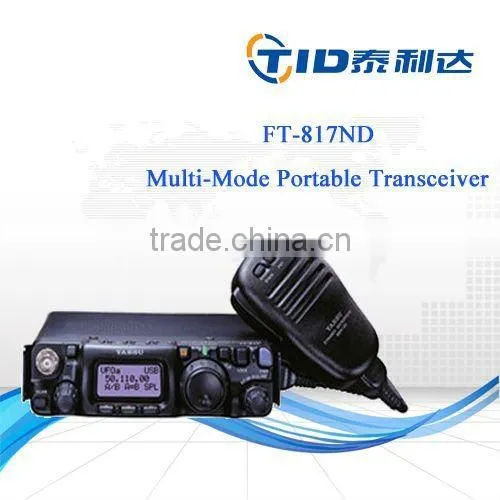

FT-817ND Multi-Mode Portable Transceiver

Name: FT-817ND Multi-Mode Portable Transceiver
Brand: VERTEX
SKU: 122824125

US$ 500 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Japan

Brand Name:

VERTEX

Model Number:

FT-817ND

Guangzhou Tiger Electron Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China HongKong Dubai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Japan

Brand Name VERTEX

Model Number FT-817ND

Type Other, Mode Transceiver

Dimensions 135x38x165mm

Frequency Range 160 - 6 m;100 kHz - 450 MHz

Storage Channel 200

Talk Range more than 10KM

Specifications

1.Ultra compact HF / VHF / UHF multimode rig
2.Two antenna connectors for ease of installation
3.Versatile, Easy-To-See LCD

FT-817ND Multi-Mode Portable Transceiver

Features

General Specifications

Frequency range:
* TX: 160 - 6 m (USA : includes 60 m) , 2 m , 70 cm (amateur bands only) , 5.1675 MHz Alaska Emergency Frequency (USA only)
* RX: 100 kHz - 30 MHz , 50 - 54 MHz , 76 - 108 MHz (WFM only) , 87.5 - 108 MHz (Europe) , 108 - 154 MHz (USA) , 144 - 148 (146) MHz (other markets) , 430 (420) - 450 (440) MHz
Operating mode: A1 (CW) / A3 (AM) / A3J (LSB / USB) / F3 (FM) / F1 (9,600 bps packet) / F2 (1,200 bps packet)
Memory channels: 200 channels
Output power: 5W (SSB/CW/FM) / 1.5W (AM Carrier) at 13.8V
Operating temperature range: -10°C to +60°C
Dimensions (W x H x D): 135 mm x 38 mm x 165 mm
Weight: Approx. 1.17 kg (with alkaline battery and antenna, without microphone)
