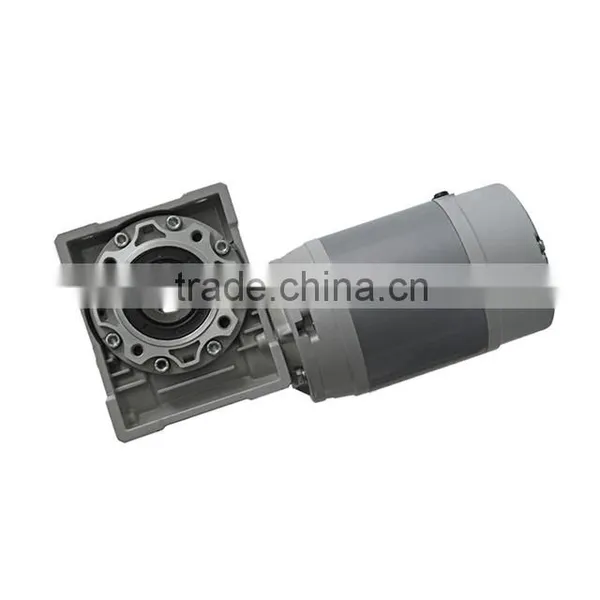

115ZY170/RV050i50 Heavy Duty Tarp 12V 500W DC Right Angle Gear Motor
US$ 120 - 800
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DYD MOTOR; DONGZHENG MOTOR
Model Number:
ZY-RV series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
180N.m IP54 High-torque Low Speed DC Planetary Gear Motor for Swimming Pool CoverUS$ 180 - 350MOQ: 20 Pieces -
IP68 450N.m High Torque Swimming Pool Cover DC Electric Gear MotorUS$ 50 - 700MOQ: 1 Piece
-
IP54 650N.m High Torque Swimmng Pool Cover DC Waterproof Planetary Gear MotorUS$ 290 - 700MOQ: 20 Pieces
-
IP54 300N.m High Torque Swimming Pool Cover DC Planetary Gear Motor With BreakUS$ 290 - 700MOQ: 20 Pieces
-
63mm Water Pump 12V 24V DC MotorUS$ 13.9 - 30MOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
DYD MOTOR; DONGZHENG MOTOR
Model Number
ZY-RV series
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Motion Control, Industrial
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, ISO9001; Reach
Type
Gear Motor
Torque
Rated up to 150N.m
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Other, Totally Enclosed, Enclosed
Speed(RPM)
10 ~ 900rpm
Output Power
UP TO 2000W
Voltage(V)
12 ~ 400V DC
Efficiency
IE 1
TYPICAL MODEL 115ZY170-2425/RV050i50 ( L=170MM )
· Motor Size: 115mm OD
· Motor Rated Output Power: 500W ( before gearbox)
· 24V DC
· Torque 53N.m at Max. efficiency
· peed 42RPM at Max. efficiency
· Reduction Ratio 50 : 1
· Operation Mode S1
· Max. efficiency 42% ( higher 50% than normal NMRV gearbox )
