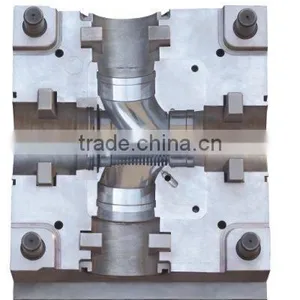

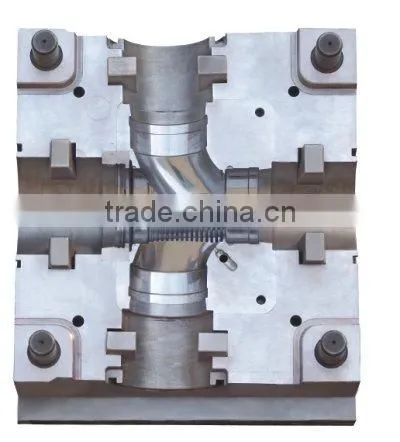

Help CenterPlastic Injection Mould- Sounding Proof Fitting Mould
Related Products
-
45deg Elbow 160mm Mould/PVC Fitting Mould/single CavityNegotiableMOQ: 1 Set -
PVC Pipe Fitting Mould / Drainage Mould - U-trap 110mmNegotiableMOQ: 1 Set
-
Moulds for CPVC Fittings (SCH 40,SCH 80)/ Water Supply Fitting MouldNegotiableMOQ: 1 Set
-
PVC Pipe Fitting Mould / Drainage Fitting Mould (Double 'Y' 110mm)NegotiableMOQ: 1 Set
-
PVC Fitting Mould of Elbow With Rotary System(u-trap 110mm)NegotiableMOQ: 1 Set
Specifications
PVC fitting mould:CrossProduct Material:01
No.of cavities :01
Delivery time:75 days
General Design
1.1 The mold(s) should always have interlocks for both cavities and cores.
1.2 The mold(s) shall be generally provided with venting facilities. These venting facilities shall be provided at the end of the flow way and near to flow lines.
1.3 The mold(s) should be equipped with feed for its handing. When it is not possible to put feet, use a stand for supporting the mold and storage.
1.4 The eyebolt thread in the mold(s) should be made in such a manner that the suspension remains in balance (Equidistant from the center of mass)
1.5 In the base plates (Upper and Lower) there should be four holes with threads with the same dimensions as the eyebolt.
1.6 Make undercuts in the corners between the plates to make easy the disassembly of the mold, between all the plates (lift-off corners)
1.7 Incorporate lubricating sliding plates
