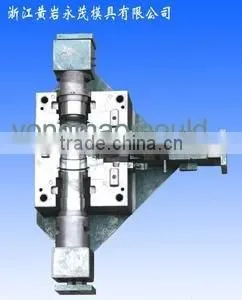

Help CenterPlastic Injection Mould of Equal Tee 75mm
Related Products
-
PVC Mould of Bend 50mm With 2 LayersNegotiableMOQ: 1 Set -
PVC Drainage Mold of Double 'Y' 110 With Inspection DoorNegotiableMOQ: 1 Set
-
PVC Pressure Fitting Mould of 16 Cavities Elbow / Bend 25mmNegotiableMOQ: 1 Set
-
PVC Mould for Drainage FittingsNegotiableMOQ: 1 Set
-
PVC Fitting Mould for U-Trap 110mm (syphon 110mm)NegotiableMOQ: 1 Set
Specifications
We supply pipe fitting moulds for sewer/drainage system,water supply,roof drainage,irrigation,exhaust system and gas supply.Mouldbase: Standardization
Use, whenever possible metric standards like LKM for all the mould components. (including guide
bushing, guide pin, ejector pin and so on)
2.2 Moudbase surface finishing
All plates should be painted with automotive paint blue or green to protect against the corrosion.
2.3. Cores & cavities
The cores, cavities and inserts made of stainless steel, hardened and tempered up to 45-48 HRC.
Surface finish: Mirror Finish-Diamond Polished
2.4 Core wedge blocks to be manufactured from P20 local steel and heat treatment by gas nitriding.
Wedge blocks need to be located in deep pockets to prevent movement.
2.5. Steel hardness in general:
It is good practice and necessary to have a difference of several points HRC hardness between
sliding steel mould parts to prevent pick up between the steel parts. For example any P20 core slides
or wear plates should be gas nitride.
(Steel material and final hardness certificate will be supplied with the molds)
| Type of fitting | Mould for PVC pipe fitting |
| Description of goods (mold name) | Cross |
| No.of cavities | single cavity |
| Steel for Mold base | Standardization DIN 1.1730 |
| Steel for Core,cavity | Werkstoff - DIN1.2738 with Nitraded treatment |
| Mold components | HASCO/DME Standard spare parts |
| Core pulling system | Hydraulic cylinder |
| Mould life | 1,000,000 shots |
| Runner type | Cold runner |
| Fitting standard | DWV (ASTM D 2665) |
| Working mode | Automatic mode |
