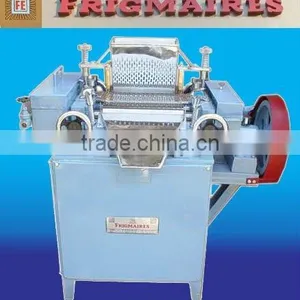

Help CenterThree Roll Mill
Related Products
Specifications
Min. Order: 1 SetFOB Price: US $ 3000 / 20000 Set
Payment Terms: L/C,T/T
Supply Ability: 1 Set/Sets per Month
CONSTRUCTION:
The mill comprises of finely ground Hollow Chilled Cast Iron rolls or SS 304 Rolls as may be required mounted on C.I. machined bearing blocks which are provided with sealed bearings. The Rolls rotate in opposite directions at different speeds and are provided with independent water cooling arrangement. Gun Metal checks are fitted between center and feed roll to prevent splashing of material during operation. A discharge Hopper with doctor blade is provided for scraping material from the take-off Roll. The gap between Rolls is adjustable by means of mechanically operated hand wheels provided in front of feed and discharge Roll. The bearings are continuously lubricated by oil cups provided on top of each bearing block. A sturdy C.I. and steel fabricated frame is provided for mounting the mill on the foundation. The drive consists of a 3 Ph, Flame Proof 415 V electric motor complete with set of helical gear train, ~V~ belts, pulleys, belt guard and base frame.
