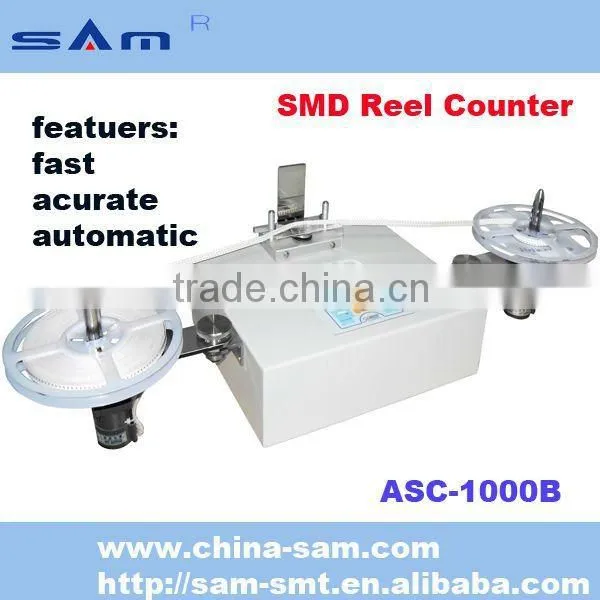

Help CenterAccurate SMD Component Counter (ASC-1000B)
Related Products
-
Accurate SMD Component Counter ManufacturerUS$ 850 - 2,000MOQ: 1 Set -
Motorized SMD Component CounterNegotiableMOQ: 1 Set
-
Leak Hunting SMD Counter/smd Chip CounterNegotiableMOQ: 1 Set
-
Leak Hunting SMD Component CounterNegotiableMOQ: 1 Set
-
With Printer and Scanner Leak Detection SMD Components CounterNegotiableMOQ: 1 Set
Specifications
Motorized electron-optical SMD components counter, works by detecting cut-out holes on SMD reel tapes, accurate and fast.Specification
1.One-touch chip counting, user friendly operation ,prompt and precise.
2.Pre-set counting number and convenient for checking ,distributing and drawing.
3.Particularly designed for SMT components package.
4.Easy to load and unload the wheel.
5.Connecting barcode printer to print out counting unmber ,date and chareccters in barcode form.
Avoid overstock .
6.Small and light ,easy to carry.
APPLICATION
Power supply:AC110V, 220V(50/60Hz)
Electric powerAbout 13W
Counting number:1-50000pcs
Outer sizes:512(L)Include arm x 251(W) x 337(H)mm
Machine weight:9kg
Detection of missing component (only for tape
package) Easy to confirm the parts number so
as to improve the stock management.
Designed for SMT reel chips , automatic detection of component pitch and automatic reel back tape.
Connecting barcode printer to print out counting number, date and characters in barcode form. Avoid overstock .
Application specifition
REEL DIAMETER:Max.382mm
REEL WIDTH(WIDTH):Max.72mm
REEL PITCH(PITCH):2-56mm

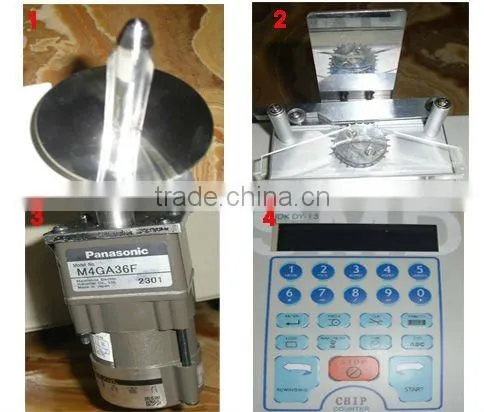

Parts show:

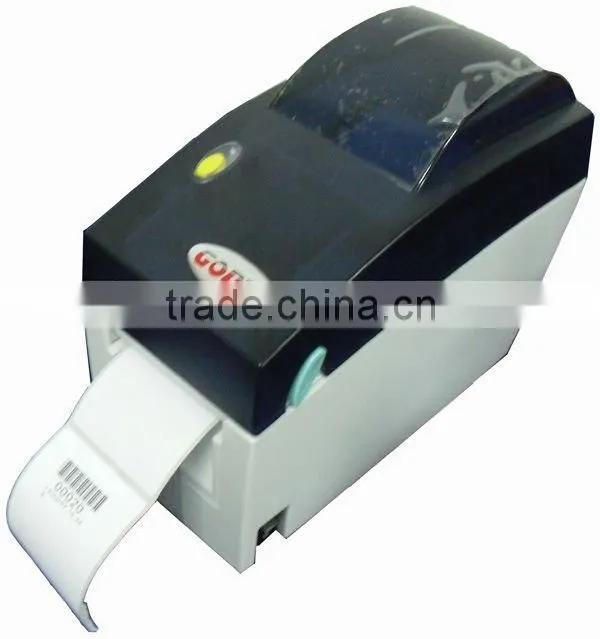

Mactch printer :
