Specifications:
Fast speed,best quality 10 feet solvent plotter,Phaeton solvent UD-3278K printer
Challenger/Infinity/Pheaton Outdoor Large Format Digital Printer
8 Seiko SPT510-50PL Printheads
Double 4 Color Printing
Alloy-aluminum Platform
Infiniti/Challenger stable printer UD-3278K
1,Low ink sensor, auto or manual ink supply system.
2, Double four color printing, vivid color & high speed .
3, X, Y axis AC servo motor is used to run the carriage quicker and more stable.
4, Individual color cleaning minimizes the waste of the ink;
5, 3 way intelligent heater (pre/print/post) helps bring more vivid output;
6, The entire printing platform and the girder are made of the alloy-aluminum which is more strong ,flat and quiet .
Model |
UD-3278K |
|
Printhead |
SPT 510/50pl |
|
Number of printhead |
4 or 8 heads |
|
Maximum print width |
3200mm |
|
Print Speed(m/h) |
Print Mode |
Standard Output(m/h) |
D |
2 pass 157 |
|
S |
3 pass 109 |
|
Q |
4 pass 85 |
|
HQ |
4 pass 70 |
|
BL |
6 pass 53 |
|
|
Ink
|
Type |
Solvent ink&ECO solvent ink |
Color |
Double 4 color(C,M,Y,K) |
|
Capacity |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink sensor ,Auto or Manual Ink Supply System |
|
Media |
Width |
Max. 3300m |
Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc |
|
Auto Media Feeding System |
Equipped(Max Media Weight 80kg) |
|
Auto Cleaning System | ||
|
Individual Positive Pressure Cleaning, Anti-clogged Flash Function&Capping System
| ||
Pre-heatig & Drying Sytem |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB2.0 |
|
Input Power |
L4786*W1000*H1350mm/685kg |
|
Machine Dimension |
L4980*W1400*H1640mm/968kg |
|
Package Dimension |
Temperature:20°C-28°C Humidity:40%-60% |
|
Pictures to reference:
Front side of UD3278K , with strong heavy body .
Cool fans to keep the drying faster and the picture more vivid.
Right side of the printer .
Temperature controller botton .
Logo of the machine .Phaeton UD-3278k
Back side of the machine .
Individual positive pressure ink cleaning system.
X, Y motor keet the running of the printer more stale and quicker.

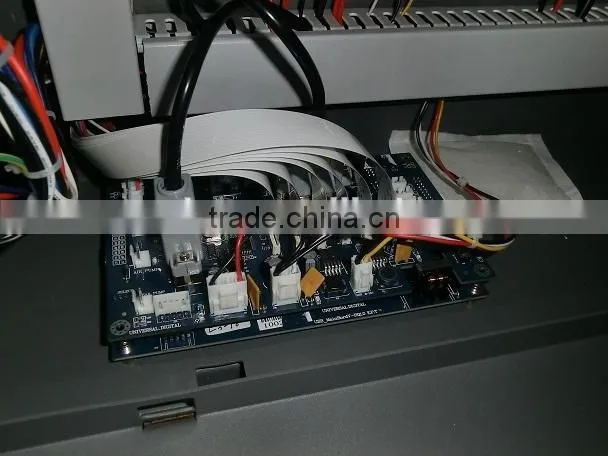

Boards and data cable of the printer .

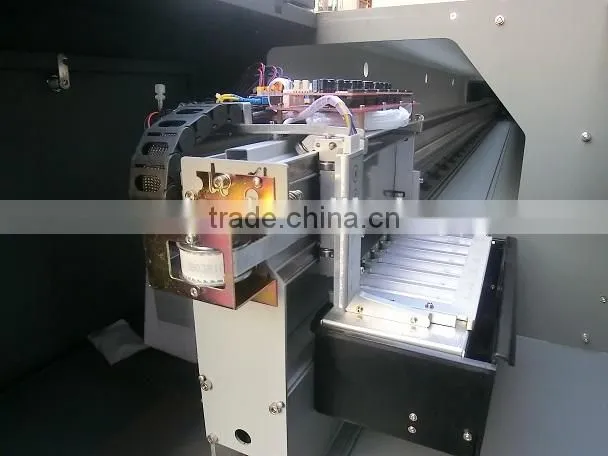

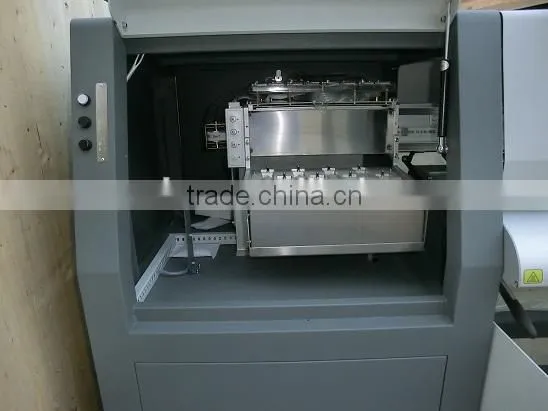

Print head position .
Wide flatform , 3 ways heating to dry the media .
3 ways heater bottom
Very strong guide rail .
Packing:
The wooden case holds one machine,and it is some space left for extra 120L inks.
Recommendation:It is suggested to order some inks for the new machine,both for daily uses and save shipping costs.
Delivery:
All machines are guarantee to deliver within 7 days after payment confirmed!
Technical Support :
1. Any question we ensure to try our best to help you .By email ,vedio ,TEL, long-distance computer control and so on . We company has the experts and professional skill team for machine who has more than 10 years experience about the printers. Free trainning is avaliable .
2. All kinds of original spare parts for the machine to ensure your machine running smoothly .
What is more , all the printers have one year warranty . During the warranty, if any problems of the parts , you can send us back to repair or exchange .
This month our company has discount for the machine . And the shipping cost will be 30% off. Please feel feel to contact us .
