Specification:
1.Large format solvent printer (FY-3278N) , 8printerhead,510 nozzles per printhead.
2.Eight SPT 510/35pl printhead, four color printing with two heads each color, max print resolution,360*720dpi
3.Three intelligent heater:
Preheating prepares ther media for better absorption of ink.
Platform heating increases the brightness of print.
Front heating helps the dying and increases the outdoor durability of the print.

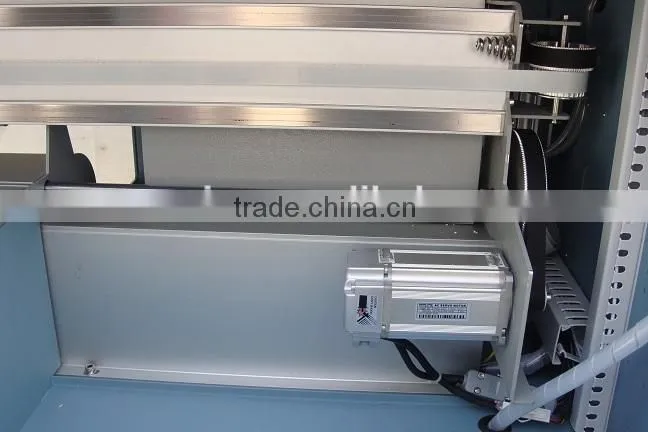

4.Import Motor and Driver from America,With higher quality and longer life.
5.44 pairs of reinforced pich rollers are specially designed to optimize precision of media feeding.
6.100% single color black is used on printing black text to avoid mixture of color.
7.The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
8.The function of skipping white space is added to increase productivity.
9.Well designed alloy aluminum girder is installed to decrease the noise during printing. Achieve
the perfect quiet working environment.
10.Edge feather function can blur the pass line and feather pass edge.
Model |
FY-3278N |
||
Printhead |
Drop on demand Piezo Head(SPT510-50PL) |
||
Mumber of Printhead |
4 or 8 Heads |
||
Maximun Print Width |
3,200mm(125.98inch) |
||
Print Speed |
161m2/hr Draft 2Pass |
||
|
114m2/hr Standard 3Pass |
||
|
91m2/hr Quality 3Pass |
||
|
71m2/hr Compensation 3Pass |
||
|
|
||
Media |
Max.width |
3,300mm(129.92'inch) |
|
|
Max.Weight |
Roll media:80kg |
|
|
Type |
Front/Backlit,Vinyl,Polyester,Mesh,Leather,Backlit/Window Film,BluePaper... |
|
|
Thickness |
4.5mm(Max.) |
|
Heating System |
3 way intelligent heater |
||
|
Auto Media Feeding& Take-up System |
Equipped |
||
Ink |
Type |
Solvent C,M,Y,K ink. |
|
|
Capacity |
1L or 5L per Color Main Tank |
|
Auto Cleaning System |
Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System |
||
Print Interface |
USB 2.0 |
||
Power Specification |
AC 220V/230V 50Hz/60Hz 2300W |
||
Operational Environment |
Temperature20°C-28°C Humidity40%-60% |
||
Compatible RIP Software |
Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop |
||
Dimension & Weight |
Machine |
L4,600mm X W970mm X H1,290mm 405kg |
|
Package |
L4,930mm X W1,140mm X H1,620mm 692kg |
||
Packing:
The printer package in a wood box which is being protected .
We sure the printer have been check by us before send to you .and choose the best one for you.
Machine always be packed in the safe wooden box to against damagad .
What is more , we will give you the traking unmber after the machine send out .
You can check the machine by the internet .It will be more clear and convenience.
This printer using SK4 original ink.
