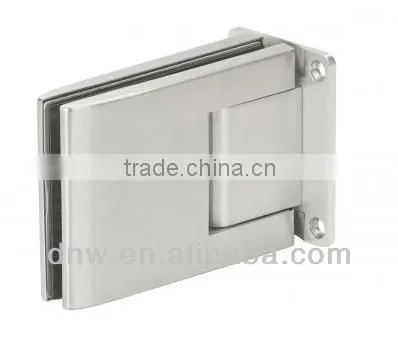

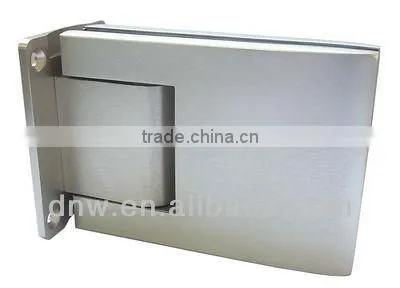

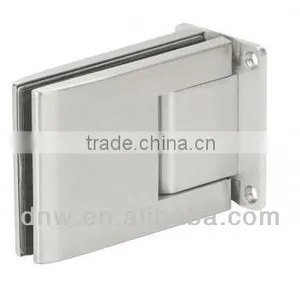

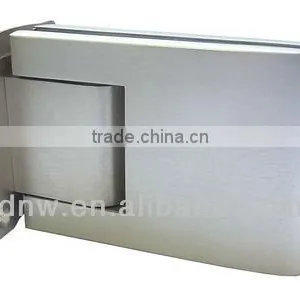

Hydraulic Glass Door Hinge
US$ 150 - 150
MOQ: 20 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
DNW
Model Number:
SH821A
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Self Closing Glass Door CloserNegotiableMOQ: 300 Pieces -
Patch FittingsNegotiableMOQ: 1
-
Bottom Rail for Glass DoorNegotiableMOQ: 100 Sets
-
Frameless Glass Door Aluminum Offset Pivot HingeNegotiableMOQ: 200 Pairs
-
Stainless Steel Door Holder Clamp for Glass DoorNegotiableMOQ: 300 Pieces
Place of Origin
Taiwan, China
Brand Name
DNW
Model Number
SH821A

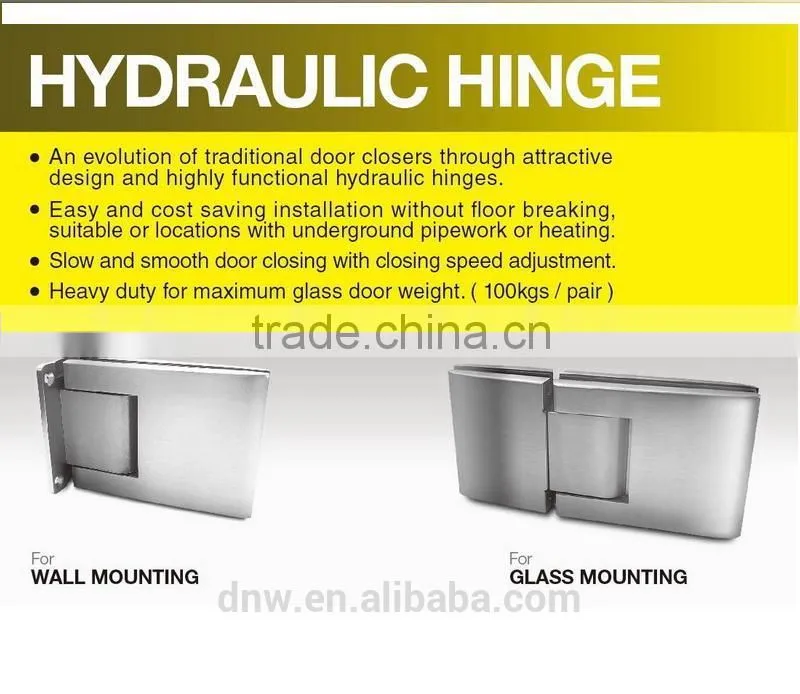

Floor closer is not the only option.
We developed this new and highly functional hydraulic hinge for max. glass door weight 100kgs/pair to allow the glass door to close slowly and smoothly between 4-15 seconds, the closing speed is adjustable. It's totally hassle free without digging a hole on the floor, simply mounting the hinge to wall or side frame, glass to glass mounting is also available. It offers much better aesthetics compared to floor closer + patch fittings:
SPECIAL FEATURES:
- Elegant alternative to floor closer, easier and cheaper installation (no need for a cement hole on the ground), and no maintenance costs.
- Self-closing hinge with genuine hydraulic bumper, patent structure with no risk of losing buffer from sudden pushing or wind-blowing upon closing.
- Easy and effective adjustment ± 10° after door is installed when door is not lined up with side panel or frame.
- Hold-open 75-90° , self closing at 70 ±5 degree, and door closing precisely at 0°.
- Adjustable closing speed 4-15 seconds.
- Maximum loading capacity: 100kg per pair of hinge.
- For glass thickness 10-12mm, and max. door width 1,000mm.
- Aluminum cover to conceal screw holes, cover in brushed aluminum anodized or brushed SS like finish.
- International patent pending.
- 500,000 cycles & 1,000 hours salt spray tested.

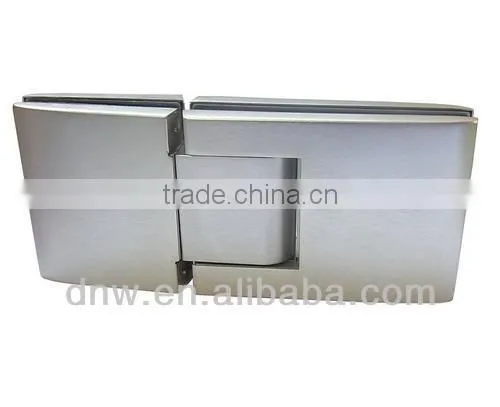

- Glass to glass hinge is also available:
