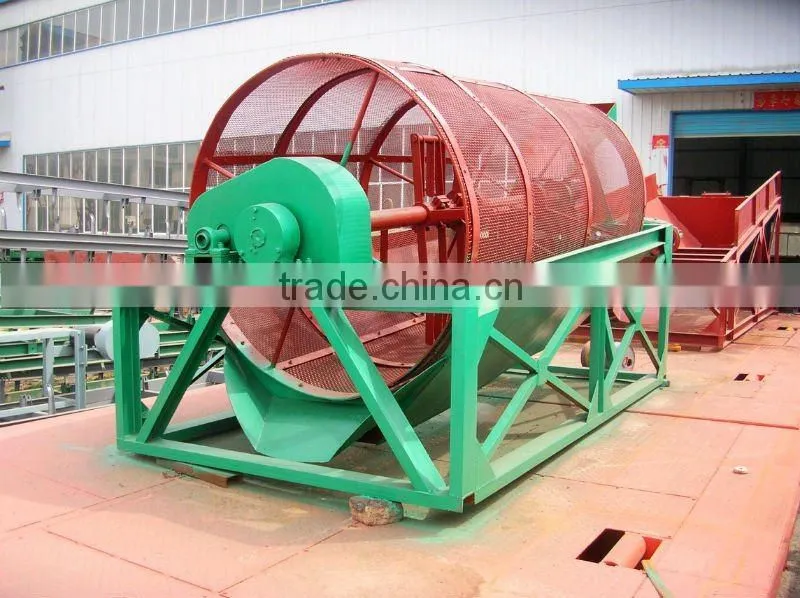

Help CenterPricelist of Brick Production Line GTS1000*4000 Roller Screen
Related Products
-
Round Roller Type SieveUS$ 48,888 - 56,666MOQ: 1 Set -
Automatic Vibrating Screen, Hot Sale in India!US$ 2,222 - 4,444MOQ: 1 Set
-
Material Separator,GTS1000*4000 Roller ScreenUS$ 1,111 - 8,888MOQ: 1 Set
-
Mining Machinery GTS1000*4000 Roller ScreenUS$ 1,111 - 8,888MOQ: 1 Set
-
Mineral Separator,GTS1000*3000 Roller ScreenUS$ 1 - 8,888MOQ: 1 Set
High Efficiency Roller Screen
Work Principle:
Roller screen mainly consists motor,reduction gear,roller device,frame,hermetic,seal material,in and out of mouth.Roller device slantly put on the frame.The motor drive the roller device to move around axis.Due to roller device's tilt and rotation, material put into the roller device begin rolling over.Then the qualified material pass through the screen and the rest of material discharge from the bottom.
Main Characteristic:
1 Screen hole is not easy to be jamed.
2 Stable work and little noise
3 Simple structure,easy maintenance
4 Good sealed screen,avoid the dust
5 High reliability,less one-time investment
6 High efficiency ,long machine life
Work Range:
1 Select different size of stones
2 Separation of the mud and cement
3 Separation of stone and sand
4 Separation of coal briquette and pulverized coal
5 Select different sizes of mine and powdery material
TECHNICAL PARAMETERS:
| Specification | Productivity(m3/h) | Motor power(kw) | Matched V-belt | Dimensions(mm) |
| GTS1000*3000 | 20-25 | Y112M-4-4KW | B*3-1800 | 4070*1300*2100 |
| GTS1000*4000 | 30-40 | Y132S-4-4.5KW | B*3-2200 | 5042*1500*2400 |
| GTS1500*5000 | 35-50 | Y132S-4-5.5KW | B*3-2200 | 6100*2000*3200 |
SERVICE POLICY:
Before sale:
1 Help confirm the proper machine based on need
2 Design and make the ordered machine
In sale:
1Give reasonable quotation project
2 Welcome customers to our factory and kiln site
After sale:
1 Our company is responsible for production line design,installation,debugging and worker training
2 Supply technical insruction for the foundation,kiln buliding etc.
3 Provide technical support and after-sales service at the most speed manner.
4 During the period of installation,our technicians will be responsible for training the factory worker for machine maintenance,operation skill etc.
The general manager,Mr zhili Cui,together with all staff members,warmly welcome domestic and foreign friends to visit our company for negotiation.
