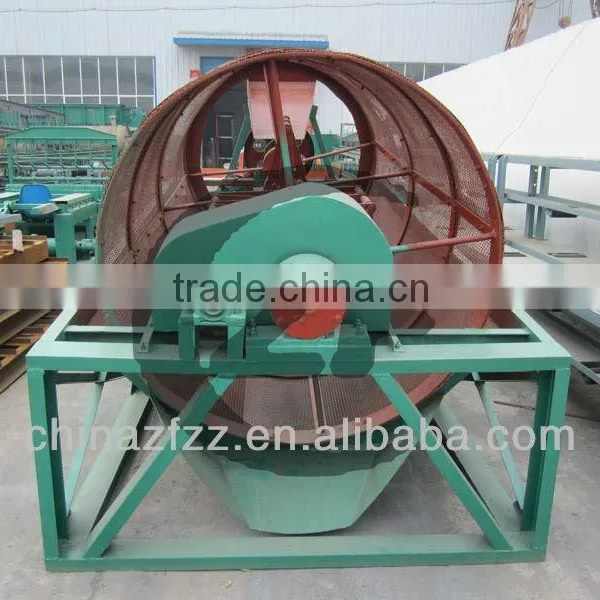

2012 High efficiency!GTS1000*3000 Roller screen
Work principle:
1.Roller screen mainly consists motor,reduction gear,roller device,frame,hermetic,seal material,in and out of mouth.
2.Roller device slantly put on the frame.The motor drive the roller device to move around axis.
3.Due to roller device's tilt and rotation, material put into the roller device begin rolling over.
4.Then the qualified material pass through the screen and the rest of material discharge from the bottom.
5.This machine works in a re-circulating network with Ball mill, which can upgrade the fineness of ferrous and nonferrous metals.
6.Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with
each revolution along the length of the drum.
Work range:
1 Select different size of stones
2 Separation of the mud and cement
3 Separation of stone and sand
4 Separation of coal briquette and pulverized coal
5 Select different sizes of mine and powdery material
Technical parameters:
| Specification | Productivity(m3/h) | Motor power(kw) | Matched V-belt | Dimensions(mm) |
| GTS1000*3000 | 20-25 | Y112M-4-4KW | B*3-1800 | 4070*1300*2100 |
| GTS1000*4000 | 30-40 | Y132S-4-4.5KW | B*3-2200 | 5042*1500*2400 |
| GTS1500*5000 | 35-50 | Y132S-4-5.5KW | B*3-2200 | 6100*2000*3200 |
Service policy:
1. Before sales:
1>the device type
2>for customer training and technical personnel
3>according to customer request, design and manufacture products
4> the company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
2. Medium-sales:
1> Acceptance of the product
2> Assist client protocol construction scheme
3. After-sales:
1> On-site training personnel
2> Appoint special after-sale service staff, arrived at the scene guide clients installation and commissioning.
