Help CenterBuild Projects in India and Bangladesh Auto Clay Brick Plant
Related Products
-
Red Brick Kiln Dry Car With Good Convenient in ChinaUS$ 1 - 999MOQ: 1 Set -
Hollow Brick, Solid Brick Type and Yes Automatic Block Making Machine CostUS$ 1,000 - 50,000MOQ: 1 Piece
-
Vacuum Brick Extruder, Brick Making Line Control BoxUS$ 20,000 - 25,000MOQ: 1 Set
-
High Quality Automatic Brick Cuting MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Small Clay Bricks Extruder,YZJ350 Common Brick ExtruderUS$ 1,111 - 8,888MOQ: 1 Set
The features of auto clay brick plant

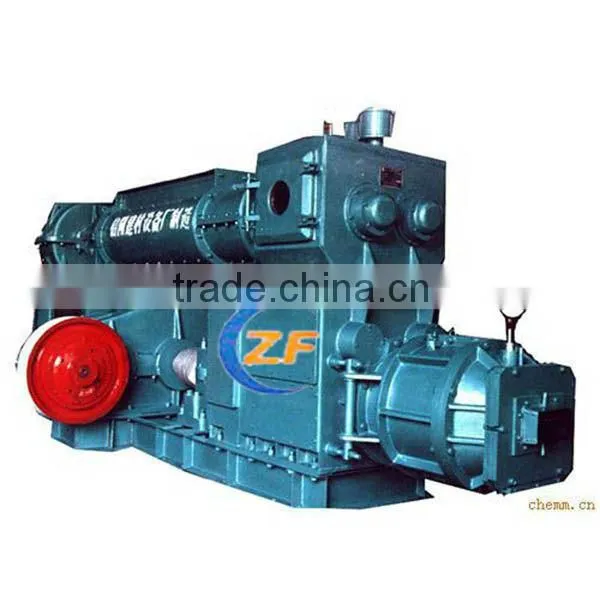

1.The JK two-stage vacuum brick making machine is suitable for producing various material brick such as gangue, shale, pulverized coal ash, flyash and clay
2.The drift adopt the wear-resisting metal powder spray coating technology.
3.The superior mixer shaft, the drift macro axis, the up and down body etc. are all passed the aging, quenching and tempering process.
4.The speed reducer gears are all the hard tooth surface.
5.The clutch uses the screw compressor patent technology, Greatly improve the working life of equipment .
6.The vacuum brick making machine has rational design, compact structure, smooth operation, can greatly reduce the consumption power by vibration in equipment operation process.
Technical parameters:
Project |
Measuring unit |
JK40 |
JK45 |
Productivity |
Piece/hour |
8000-10000 |
10000-12000 |
Formation moisture content |
Percentage % |
18-22 |
18-22 |
|
Grain knife diameter |
mm |
400 |
450 |
Spindle speed |
r/min |
45 |
39 |
Matched power |
KW |
Y280M-4-90KW-110KW |
Y315S-4-110KW |
Reduction gear |
The subordinate transmission uses ZQ85 the step-down gear, matches the air operated coupling. |
||
Service policy:
1. Before sales:
1>Accept customer consultation, according to the customer demand; determine the scale of factory management, providing solutions.
2>For customer training and technical personnel
3>According to customer request, design and manufacture products
4>The company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
5>For customers in relevant technical documents.
2. Medium-sales: 1> Acceptance of the product
2> Assist client protocol construction scheme
3. After-sales: 1> On-site training personnel
2> Appoint special after-sale service staff, arrived at the scene guide clients installation and commissioning.
3>Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication
