Material Selecting Machine,Roll Screen
US$ 1 - 8,888
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Solid brick making production line
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SJ4000 Series Clay Double Shaft Mixer With Best SellerUS$ 4,000 - 5,000MOQ: 1 Set -
Automatic Brick Making Technology!Building Blocks Molding PlantUS$ 1 - 99,999MOQ: 1 Set
-
Light Weight Fire Brick Machinery,JKR60 Double Stage Vacuum ExtruderUS$ 88,756 - 100,000MOQ: 1 Set
-
Most Profitable Business!Clay Block MachinesUS$ 1 - 999,999MOQ: 1 Set
-
Design and Build Red Brick Plants / Solid or Hollow Clay Brick Production LineUS$ 88,888 - 93,333MOQ: 1 Set
Condition
New
Type
Other, Solid brick making production line
Brick Raw Material
Clay
Processing
Brick Production Line
Method
Other, roll
Automatic
Yes
Capacity
35-50m3
Place of Origin
Henan, China
Brand Name
zhongfang
Model Number
GTS1500*5000
Voltage
380V
Power
5.5kw
Dimension(L*W*H)
6100*2000*3200mm
Certification
CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

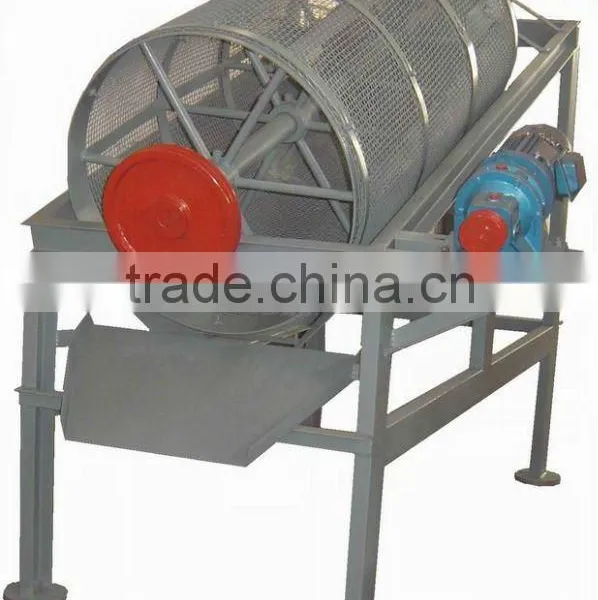

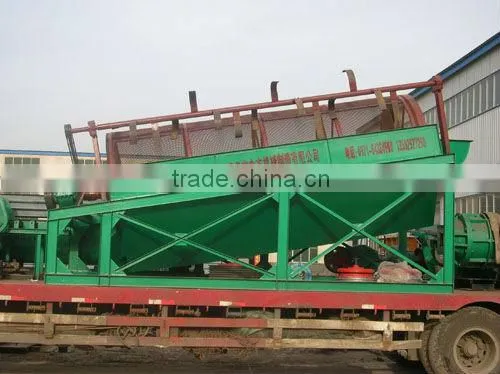

Material selecting machine,Roller screen
Work principle;
1.Roller screen mainly consists motor,reduction gear,roller device,frame,hermetic,seal material,in and out of mouth.
2.Roller device slantly put on the frame.
3.The motor drive the roller device to move around axis.
4.Due to roller device's tilt and rotation, material put into the roller device begin rolling over.
5.Then the qualified material pass through the screen and the rest of material discharge from the bottom.
Work range:
1 Select different size of stones
2 Separation of the mud and cement
3 Separation of stone and sand
4 Separation of coal briquette and pulverized coal
5 Select different sizes of mine and powdery material
Technical parameters:
| Specification | Productivity(m3/h) | Motor power(kw) | Matched V-belt | Dimensions(mm) |
| GTS1000*3000 | 20-25 | Y112M-4-4KW | B*3-1800 | 4070*1300*2100 |
| GTS1000*4000 | 30-40 | Y132S-4-4.5KW | B*3-2200 | 5042*1500*2400 |
| GTS1500*5000 | 35-50 | Y132S-4-5.5KW | B*3-2200 | 6100*2000*3200 |
