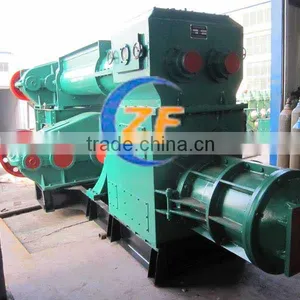

High profit brick project Clay brick making machinery
Brief introduction
1.The main frame adopts whole steel structure and whole welding.It has compact structure
2.The key parts all pass quenching,tempering and high chrome casting process.It largely extend the working life of machines
3.With reasonable design,the machine has stable performance and high extruding pressure,4.0Mpa.
4.It can be used to process coal gangue,shale and fly ash so that it is the best choice of big and medium brick factory.
Technical parameter:
Item |
Units of measurement |
JKR50 |
|
Production capacity |
Blocks/hour Standard brick |
13000-18000 |
Diameter of reamer |
mm |
500 |
Maximum extrusion pressure |
MPa |
3.0 |
Vacuum degree |
MPa |
-0.092 |
Power |
KW |
132+45 |
Formation moisture content |
% |
18-22 |
Spindle speed |
r/min |
51 |
Brick production line flow chart:
Clay-------Box feeder-------Roller crusher------Double shaft mixer---------Brick vacuum extruder-------Cut strip machine-----Cut adobe machine-------Sun drying/Drying room--------Hoffman kiln/Tunnel kiln
Brick making machine producing processing
1)Material is put into box feeder to make sure continuous feeding.There
is a reamer near the discharging hole of box feeder.It can crash big block
2)Then material is conveyed to roller crusher and crashed into powdery.
3)After that material is conveyed to double shaft mixer.Add water when
mixing the material to make it more even.
4)Material is conveyed to brick vacuum extruder.The machine process
the material and squeezes out mud strip.
5)Strip cutter cut the mud strip into equal length strip and convey them
to cut adobe plate
6)Adobe cutter cut the brick strip into green brick adobes.
7)Green bricks pass stoving and sintering processes become red brick.
Service policy:
1. Before sales:
1>Accept customer consultation, according to the customer demand; determine the scale of factory management, providing solutions.
2>For customer training and technical personnel
3>According to customer request, design and manufacture products
4>The company sent engineering and technical personnel to the user scene, planning for the optimal design of the flow field, and the solutions.
5>For customers in relevant technical documents.
2. Medium-sales:
1> Acceptance of the product
2> Assist client protocol construction scheme
3. After-sales:
1> training personnel
2> Appoint special after-sale service staff, arrived at the scene guide clients installation and commissioning.
3>Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication
The general manager,Mr.Zhili Cui,together with all staff members,warmly welcome domestic and foreign friends to visit our company for negotiation
