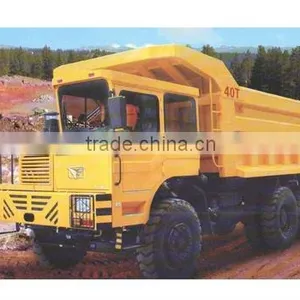

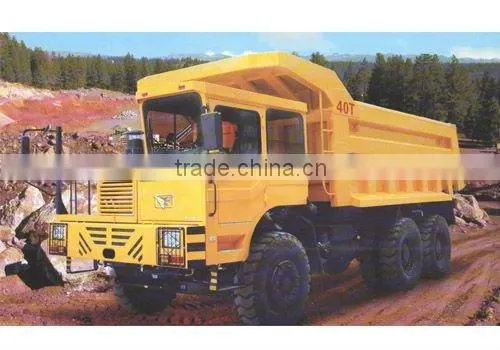

TY340-2PT364W Heavy off Road Vehicle, Duty off Road Dumper,off Road Truck

Name: TY340-2PT364W Heavy off Road Vehicle, Duty off Road Dumper,off Road Truck
Brand: MANNWELL, TONGYUN
SKU: 122967529

US$ 1 - 60,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shanxi, China

Brand Name:

MANNWELL, TONGYUN

Model Number:

TY340-2PT364W

Jinan Mann-Well Commercial & Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china main port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanxi, China

Brand Name MANNWELL, TONGYUN

Model Number TY340-2PT364W

Specifications

Heavy off road vehicle
duty off road dumper,off road truck
6x4 Heavy off road vehicle
8x4 Heavy duty off road dumper

MODLE	TY340-2PT364W
DIRVE METHOD	6X4
CURB WEIGHT(KG)	18000
PAYLOAD(KG)	28000
TOTAL MASS(KG)	46000
DIMENSION(MM)	8420X3050X3550
MAX SPEED(KM/H)	62
MIN. CLEARANCE(MM)	330
MIN TURING RADIUS (M)	LESS OR EQUAL TO10.5
MAX GRAND ABILITY (%)	40
APPROACH ANGLE/ANGLE OF DEPARTURE(°)	33/51
WHEELBASE(MM)	3600+1560
WHEEL TRACK(MM)	FRONT 2368, REAR2252
CAB	SIDE PALCED AND MINERAL CABINE
ENGINE MOLD	WEICHAI WD12.336
DISPLACEMENT(L)	11.596
RATED HORSEPOWER(KW/PS)	247/336
MAX TORQUE /ROTATING SPEED(NM/MIN)	1350/1300-1500
GEARBOX MODEL	FAST 9JSD180A
FRONT AXLE	10T
REAR AXLE	18TX2
EMISSION	EURO II
FRAME	320H X1020W X(8+7)MM, 610L STEEL
BRAKING SYSTEM	DOUBLE-WAY BRAKE WITH WEVB
ELECTRONIC SYSTEMS	24V
AIR FILTER	THREE ELEMENTS DISSERT AIR FILTERS
FUEL TANKER CAPACITY (L)	400L
TYRE	13.00-20
CARGO BOX SIZE(M)	5.6 X2.6 X1.5(21M3)
CARGO BOX MATERIAL	Q700 HIGH STRENGTH STEEL PLATE
CARGO BOX MATERIAL THICKNESS (MM)	BOTTOM 8, SIDE 6
HYDRAULIC	FRONT LIFTING CHINA MADE
MAX LIFTING ANGLE(°)	51
