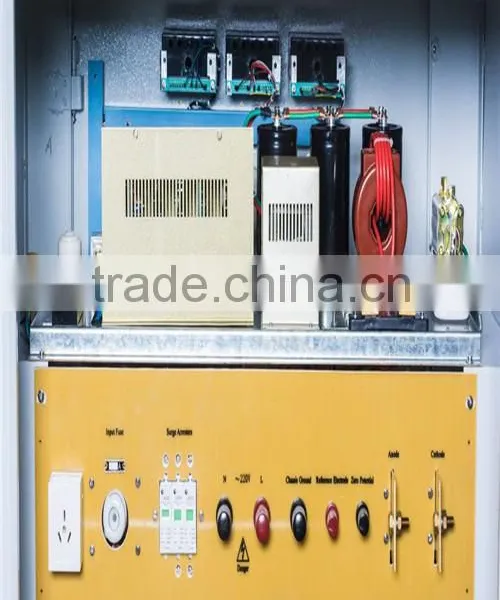

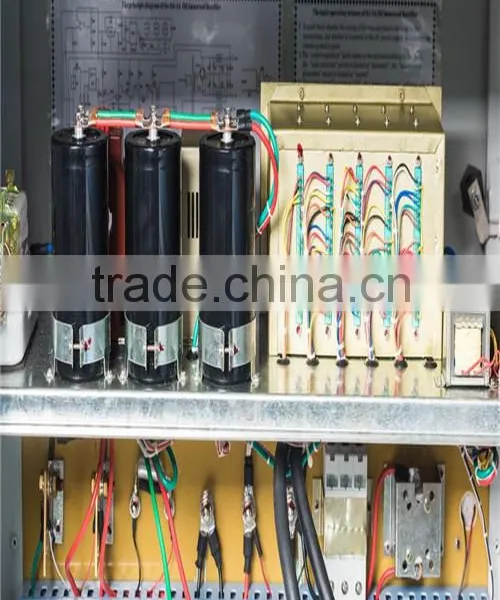

explosion-proof transformer rectifier for cathodic protection
The most common type of power supply used for impressed current cathodic protection is a transformer/rectifier, commonly referred to simply as a rectifier. A rectifier converts the AC power supply voltage to the required output voltage and then converts it to DC. Rectifiers are either supplied in ventilated cases to allow convective air cooling or are immersed in transformer oil. Rectifiers are normally powered by an AC power system. The rectifier input is an AC voltage from the commercial electrical power grid or an engine-generator. A transformer with tap adjustments in the secondary side provides a method to reduce and adjust the output voltage level and to isolate the DC circuit from the input power system. A rectifying circuit next converts the adjusted AC voltage to produce a DC voltage output.
The basic units of a rectifier consist of:
l AC Supply
l Circuit breaker
l Transformer
l Rectifying elements
l Meters
l DC Output Terminals
l Fuses
l Surge protection
Yuxi acquires an electronic manufacture-CHANGLIAN with more than 40years of history in 2014. This factory has 20 years of experiences in manufacturing Transformer Rectifier, so far China’s first Rectifier made by Changlian for Sinopec is still in operating in Ningbo. This acquisition enables Yuxi have the full capability to supply high end electronic equipment for the industry it served, most importantlythe Transformer Rectifier.
Product Line:
l YX-DJ-1 Air Cooled Type
l YX-DJ-2 Oil Cooled Type
l YX-FPS-1 Explosion Proof Type
l YX-HPS-1B HFS Type
l YX-SFS-1 Solar Type
YX-FPS-1is oil cooling, explosion proof type rectifier built for Zone 1 & 2 areas according to the 94/9/EC (ATEX) directive. It is used in the place in which there are requirements for explosion-proof to protect metal structures and equipments, such as pipelines, cables, tanks and piers and so on by impressing current.
Product Specification
| 1. A.C. Input |
|
|
| 2. D.C. Output Current | 0-400A | |
| 3. Constant Current | 0-400A | |
| 4. Current Limitation Protection | 102-110% Rated Current Output | |
| 5. D.C. Output Voltage | 0-20V (Continuous Adjustment) | |
| 6. Set Potential | 0-±3V | |
| 7. Precision of Constant Potential | ≤±5mV | |
| 8. Precision of constand Current | ≤±1% | |
| 9. Input Impedance | ≥10MΩ | |
| 10. Dielectric Strength | 1500v, 50HZ, 1minute without Breakdown | |
| 11. Working Style | Continuous | |
| 12. Cooling | Oil Cooling | |
| 13. Ripple | ≤5% | |
|
14. AC Input Fuses, DC Output Fuses, Rectifier Fuses
| ||
| 15. Control | Manual / Automatic | |
| 16. Digital DC Ampere Meter, Digital DC Voltage Meter, Digital Potential Meter | ||
| 17. Oil level sensing device, Oil Temperature Indictor | ||
| 18. Terminals |
|
|
| 19. Resist of AC interference | ≥24V | |
| 20. Enclosure | Outdoor type, Explosion Proof | |
| 21. Protection | ExodⅡBT3, IP65 | |
| 22. Dimension (approx.) |
|
|
| 23. Weight (approx.) | 90kgs | |
| 24. Ambient temperature range | -30℃ to +60℃ | |
| 25. Relative Humidity | ≤90% | |
