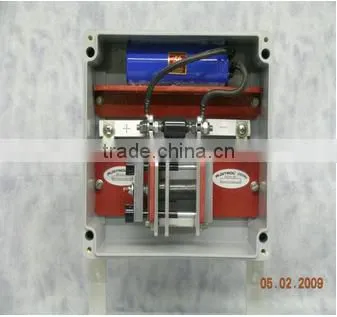

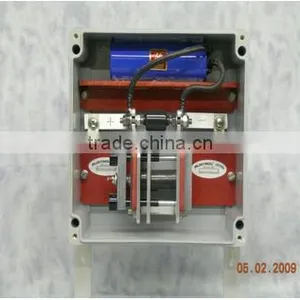

Surge Arrester for Cathodic Protection
Description:
Surge arrester is used to provide safe and effective lightning and surge protection at the external isolation between a cathodically protected structure and the station earth systems or other foreign structures. It can also be used to mitigate induced AC on pipelines as shown below, improving safety and eliminating the potential risk of AC corrosion.
Specification:
| Temperature | -40℃~80℃ |
| Relative Humidity | ≤95% (25℃) |
| Atmospheric Pressure | 86~106 kPa |
| Working Frequency | 50/60Hz |
| Nominal Operating Voltage U0 | 230V AC |
| Max. Continuous Operating Voltage Uc (L-N) | 275V AC |
| Max. Continuous Operating Voltage Uc (N-PE) | 260 V AC |
| Nominal Discharge Current ln (8/20 μs) (L-N) | 20kA |
| Max. Discharge Current Imax (8/20 μs) (L-N) | 40kA |
| Nominal Discharge Current In (8/20 μs) (N-PE) | 20kA |
| Max. Discharge Current Imax (8/20 μs) (N-PE) | 40kA |
| Voltage Protection Level Up (L-N) | ≤1.4kV |
| Voltage Protection Level Up (N-PE) | ≤1.5kV |
| Response Time Ta (L-N) | ≤ 25ns |
| Response Time Ta (N-PE) | ≤ 100ns |
| Response Time for Degradation Indication (320 mA) | ≤ 1min |
| Max.mains-side Overcurrent Protection | 125 A ( gL/gG) |
| Cross-sectional Area | Stranded: 4~25mm2, Solid: 4~35mm2 |
| Intensity of Remote Signaling Alarm Contact | AC: 250V/ 0.75A 125V/ 3A DC: 30V/ 2A |
| Isolation between separate circuits | The remote alarm interface is isolated from the main circuit by reinforced insulation on U0 not exceed 230V condition according to EN 60950-1:2006 and with dielectric withstand voltage 3000Vrms |
| Torque: Connecting Terminal/Remote | 2.5Nm/0.25Nm |
| Signaling Interface | PBT V-0 |
| Material of Enclosure | IP20 |
| Degree of Protection (IP Code) | DIN 35mm rail |
| Weight | (525±5)g |
