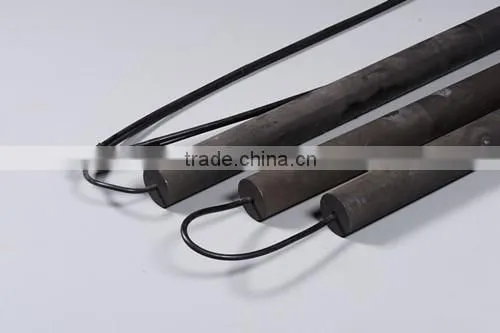

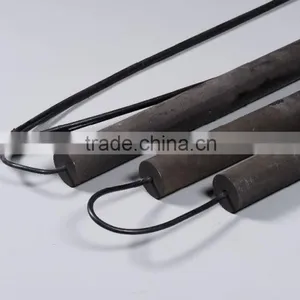

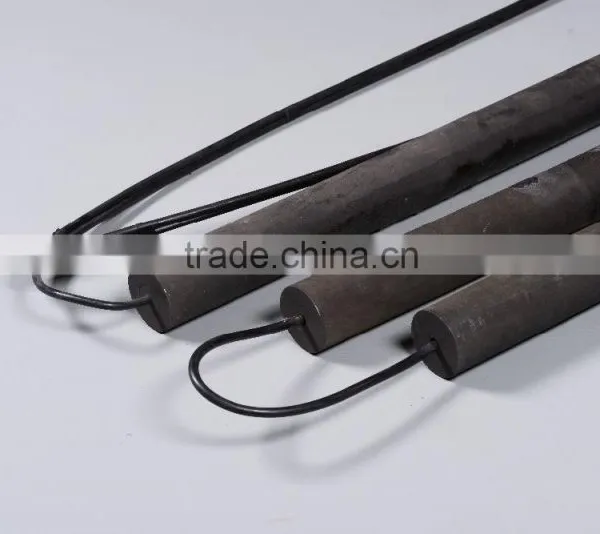

Graphite Anode
Graphite anode is a traditional anode used for impressed current cathodic protection. The best performance of this anodes are in dry soil environment.
The anodes are composed of high quality petroleum coke which is mixed with coal tar binders and then extruded into various diameter rods. But the anodes are inherently have a substantial amount of porosity, so linseed oil and wax treatment have been used to improve anode performance.

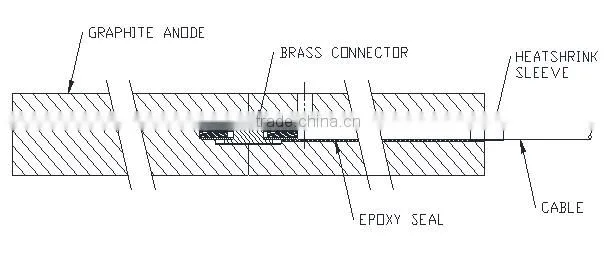

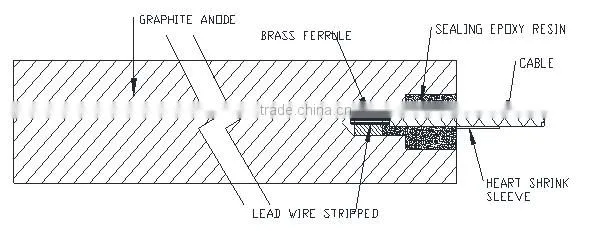

Yuxi offers a number of high quality graphite anode with linseed oil, wax or resin treated. The anode to cable connection can be standard end connection or center connection, the center connection provides low resistance and compensate of end effect.
Specification
| Characteristic | Data |
| Carbon | ≥99.8% |
| Ash | ≤0.20% |
| Porosity | ≤0.1% |
| Resistivity |
≤0.0005ohm/cm |
| Density | ≥1.8g/cm |
| Current Density (in Carbonaceous Backill) | 0.5-1.0 Amp/square feet |
| Consumption rate (in Carbonaceous Backill) | 0.5-2.0 lbs/Amp.Year |
| Part Number | Dimension | Connection | Weight |
| YX-G01E | 3"(76mm) Dia. x 30" (760mm) | End | 13.5 lb (6.2 kg) |
| YX-G01C | 3" (76mm) Dia. x 30" (760mm) | Center | 13.5lb (6.2 kg) |
| YX-G02E | 3 Inch"Dia. x 60" (1524mm | End | 27 lb (12.3 kg) |
| YX-G02C | 3 Inch" Dia. x 60" (1524mm | Center | 27 lb (12.3 kg) |
| YX-G03E | 4" (102mm) Dia. x 60" (1524mm) | End | 52.5lb (23.8kg) |
| YX-G03C | 4"102mm) Dia. x 60" (1524mm) | Center | 52.5lb (23.8kg) |
| YX-G04E | 4" (102mm) Dia. x 80" (2030mm) | End | 70 lb (31,8 kg) |
| YX-G04C | 4" (102mm) Dia. x 80"(2030mm) | Center | 70 lb (31,8 kg) |
