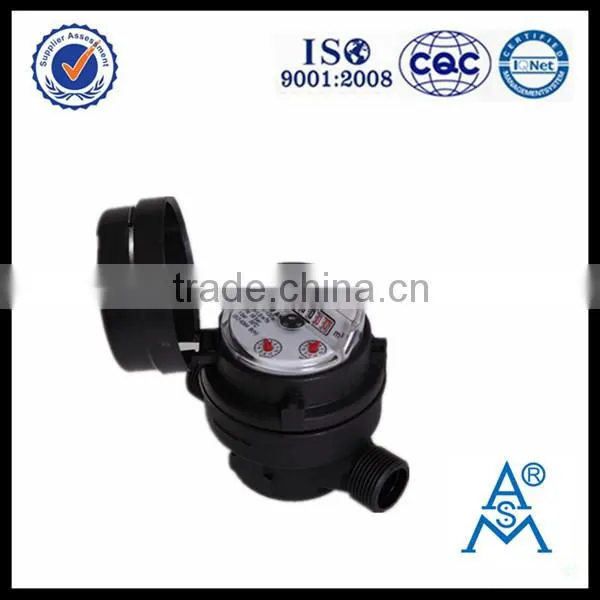

Single Jet Dry Dial Plastic Water Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Aimei
Model Number:
LXSC-13D8bs
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Jet Dry Type Water Meter LXSC-13D5-25D5US$ 0.1 - 50MOQ: 1000 Pieces -
Single Jet Dry Type Remote Reading Water MeterNegotiableMOQ: 1 Piece
-
Single Jet Semi-dry Type Water MeterNegotiableMOQ: 1 Piece
-
Multi Jet Dry Type Water Meter LXSC-15ZUS$ 2 - 50MOQ: 1000 Pieces
-
Multi Jet Dry Type Water MeterUS$ 10 - 11MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Aimei
Model Number
LXSC-13D8bs

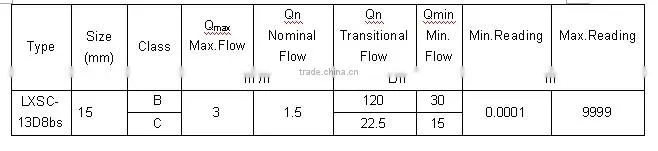

Specifications
R80/R100/R160-HCold water: T50 ,Hot water: T90
Max working pressure: 16 bar
360 revolving dial
45 register
APPLICATION:
Measuring the volume of cold potable water passing through the pipeline.
FEATURES:
1. Single jet, Dry dial, Plastic body;
2. Magnetic drive, magnet resistance;
3. Optimum accuracy and performance at all times;
4.External adjustment device
5. Free 45°rotating register
6. Accurate measurement, easy and long term clear reading, up to Class C;
7. Option: Available with pulse output function & non-return valve.
WORKING CONDITION:
Water temperature: Cold Water Meter ≤50°C Hot Water Meter ≤90°C
Water pressure: ≤1.0Mpa (10bar) or 1.6Mpa (16 bar on request)
MAXIMUM PERMISSIBLE ERROR:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2%
